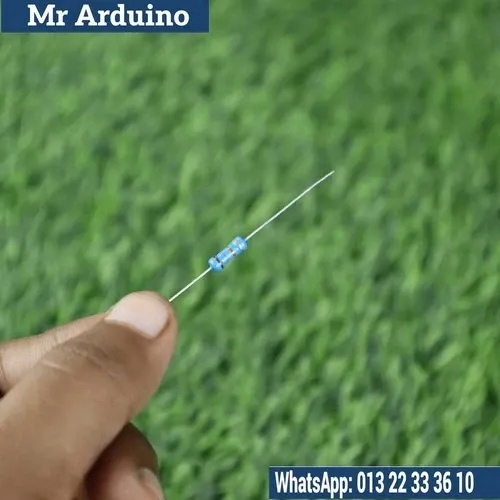

The 18k Ohm 0.5 Watt Resistor is a fixed-value resistor designed with a resistance of 18,000 ohms (18kΩ) and a power rating of 0.5 watts (½ watt). It is a standard through-hole resistor that is typically used in low-power electronic circuits to limit current flow or set specific voltage levels. The 18kΩ resistance makes it ideal for applications requiring higher resistance values while still operating within low-power constraints.

Resistors like the 18k Ohm 0.5 Watt are commonly used in voltage divider networks, signal processing, biasing circuits, and in filtering applications. They are widely used in both analog and digital electronics to regulate and control the flow of electrical current.

Key Features:

• Resistance Value: 18,000 Ohms (18kΩ), providing precise control over the flow of current in your circuit.

• Power Rating: 0.5 Watts (½ Watt), which means it can safely dissipate up to 0.5 watts of electrical energy without overheating.

• Tolerance: Typically ±5%, meaning the actual resistance value could vary by up to 5% from the nominal value.

• Type: Axial leaded resistor for easy through-hole installation.

• Material: Made from carbon film, metal oxide, or ceramic, providing durability and heat resistance.

• Operating Voltage: Ensures safe operation within low voltage applications based on the power dissipation limit.

• Temperature Range: Typically operates within -55°C to +155°C range, but this can vary depending on the specific material used.

Applications:

1. Voltage Dividers: The 18k Ohm resistor is commonly used in voltage divider circuits to reduce the voltage from a higher level to a desired, lower level, making it ideal for setting reference voltages in sensor applications, analog-to-digital conversion, and signal conditioning.

2. Signal Processing: In analog signal conditioning circuits, it helps control signal flow by limiting current or controlling impedance. It can be used in combination with capacitors or inductors in filtering applications to adjust the frequency response of circuits.

3. Biasing Circuits: The 18k Ohm resistor is often used in transistor biasing or op-amp circuits to establish proper operating conditions, controlling current flow through the circuit and helping maintain stable signal processing.

4. Feedback Networks: In feedback circuits (e.g., for amplifiers), it is used to set the gain or response of the circuit by controlling the voltage or current feedback to the input.

5. Pull-up or Pull-down Resistor: Used as a pull-up or pull-down resistor in digital circuits to ensure proper logic level voltage on unused or floating input pins. It helps stabilize digital signals and prevent erratic behavior.

6. Audio Applications: This resistor is often used in audio circuits for impedance matching, volume control, and filtering to ensure proper current flow and frequency response.

7. Temperature Sensing and Calibration Circuits: It may be used in circuits requiring precise resistance values for accurate calibration or temperature compensation, especially when connected with thermistors or other sensing components.

How It Works: The 18k Ohm 0.5 Watt Resistor works according to Ohm’s Law, which governs the relationship between voltage (V), current (I), and resistance (R). The formula is as follows:

$$V = I \times R$$

Where:

• V is the voltage across the resistor.

• I is the current flowing through the resistor.

• R is the resistance of the resistor (in this case, 18,000 ohms).

When current flows through the resistor, it creates a voltage drop across the resistor, which is proportional to the amount of current and the resistance. The power dissipated by the resistor can be calculated using:

$$P = I^2 \times R = \frac{V^2}{R}$$

In this case, the resistor has a maximum power dissipation rating of 0.5 watts. This means it can handle up to 0.5 watts of power without overheating. If the current or voltage causes more than 0.5 watts of power dissipation, the resistor could potentially overheat and fail.

For example, if the resistor is exposed to a 10V supply:

• The current through the resistor will be:

  $$I = \frac{V}{R} = \frac{10V}{18,000Ω} \approx 0.00056A \, (0.56mA)$$

• The power dissipated will be:

  $$P = V \times I = 10V \times 0.00056A \approx 0.0056W$$

This is well under the 0.5W power rating, ensuring that the resistor operates safely in this scenario.

Product Limitations:

• Power Rating: The 0.5-watt power rating limits this resistor to low-power applications. If used in high-power circuits, the resistor may overheat and fail. Higher power resistors (e.g., 1 Watt, 2 Watt) would be required for circuits that involve more power.

• Tolerance: The typical ±5% tolerance means that the actual resistance could vary by 5% from the nominal value. For circuits requiring high precision, you may need to select a resistor with a tighter tolerance, such as ±1% or ±0.5%.

• Voltage Rating: Ensure that the voltage across the resistor is within safe limits. Exceeding the power rating will cause the resistor to overheat, which could damage it and surrounding components.

Conclusion: The 18k Ohm 0.5 Watt Resistor is a versatile and widely used electronic component suitable for low-power applications where precise current regulation or voltage division is required. It is commonly used in voltage dividers, biasing circuits, signal conditioning, feedback networks, and audio systems. With its 0.5-watt power rating, it is designed for circuits that don’t involve high currents, making it perfect for everyday electronics projects, DIY designs, and prototyping.

As always, be sure to calculate the expected power dissipation and ensure that it remains below the 0.5-watt limit to avoid overheating. It is an excellent choice for most standard circuit applications that require an 18k Ohm resistance.
