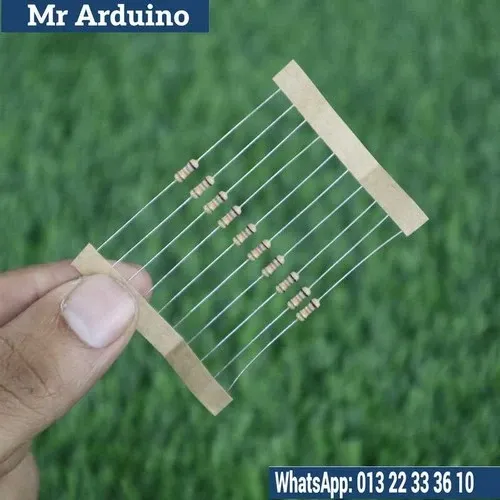

The 18K Ohm Resistor Quarter Watt 0.25W is a fixed resistor with a resistance value of 18,000 ohms (18KΩ) and a power rating of 0.25 watts (quarter-watt). It is widely used in low-power electronic circuits to regulate current, divide voltages, or adjust signal levels. This resistor is suitable for various applications, such as voltage dividers, current-limiting circuits, signal processing, and audio systems. The 0.25W power rating ensures the resistor can handle typical low-power situations without overheating, offering a reliable and cost-effective solution for your electronic projects.

With a compact design, this resistor can easily fit into breadboards, PCBs, and small-scale electronics, making it ideal for hobbyists, engineers, and DIY projects that require low-power components.

Key Features:

• Resistance Value: 18K ohms, perfect for use in circuits where moderate resistance is needed to regulate current or create voltage drops.
• Power Rating: 0.25W (quarter-watt), making it ideal for low-power applications where heat dissipation is minimal and power consumption is controlled.
• Tolerance: Typically available with a ±5% tolerance, which means the actual resistance may vary slightly from the nominal value. Precision versions with ±1% tolerance are also available for more accurate applications.
• Compact Size: The quarter-watt size allows it to fit easily in space-constrained designs and small PCBs.
• Material: Typically made from carbon film or metal oxide, ensuring good durability and reliable performance over time.

How It Works: The 18K Ohm Resistor Quarter Watt 0.25W limits the current flow in a circuit according to Ohm’s Law (V = IR), where V is the voltage across the resistor, I is the current, and R is the resistance. The 18K ohm resistance controls the current flow when a specific voltage is applied across it.

For example, if you apply a 5V voltage across the 18K ohm resistor, the current flowing through the resistor is calculated as:

$$I = \frac{V}{R} = \frac{5V}{18KΩ} = 0.278 \, mA$$

This means that when a 5V supply is used, the current flowing through the 18K ohm resistor would be approximately 0.278 milliamps (mA). This makes the resistor ideal for applications that require very low current flow.

The 0.25W power rating ensures the resistor can safely dissipate up to 0.25 watts of power without overheating or causing damage.

Applications:

• Voltage Dividers: Commonly used in voltage divider circuits to produce specific voltages required for sensors, microcontrollers, or analog-to-digital converters (ADC).
• Signal Conditioning: Used in signal processing to attenuate or filter signals, adjusting their amplitude and ensuring clean, stable signals in analog circuits.
• Current Limiting: Ideal for LED circuits, where it is used to limit the current flowing to the LED, preventing it from burning out due to excess current.
• Impedance Matching: In audio circuits, this resistor can help match the impedance between components for optimal power transfer, ensuring better sound quality and efficiency.
• RC Circuits: Can be used in RC (Resistor-Capacitor) circuits for time constant adjustments, signal filtering, and smoothing of waveforms.
• Sensor Circuits: Helps in controlling the voltage supplied to sensors to prevent overvoltage, ensuring stable and accurate readings.
• Audio Equipment: Found in tone control circuits, amplifiers, and other audio systems where it helps manage the voltage levels for clear sound transmission.

Limitations:

• Low Power Rating: The 0.25W power rating limits its use to low-power applications. For circuits that require more power, a higher power-rated resistor (e.g., 0.5W or 1W) should be used to prevent overheating.
• Current Handling: This resistor is intended for low-current applications. If a circuit requires higher current, a resistor with lower resistance and a higher power rating is recommended to handle the excess power.
• Tolerance: With a ±5% tolerance, the actual resistance value can vary slightly from the nominal value. This tolerance may affect precision in high-accuracy circuits. For more exact resistance values, precision resistors with ±1% tolerance are a better choice.

The 18K Ohm Resistor Quarter Watt 0.25W is a reliable and versatile component, ideal for low-power circuits requiring moderate resistance. It is commonly used in voltage regulation, signal processing, LED circuits, and audio systems. Its small size and affordable cost make it a staple in both professional and hobbyist electronics.
