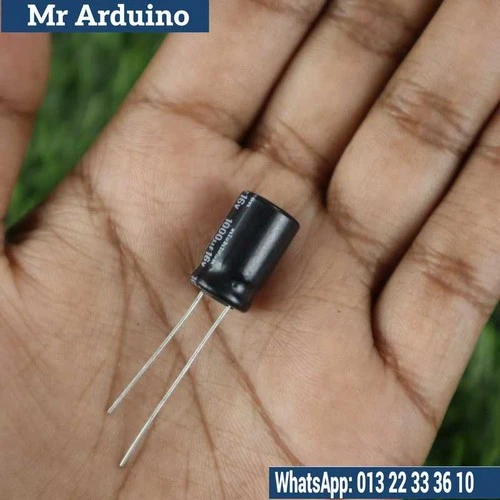

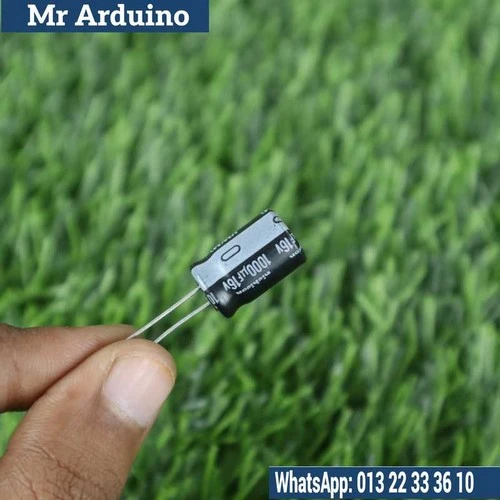

The 16V 1000uF Electrolytic Capacitor is a high-capacity, polarized capacitor designed to store and regulate electrical energy in a variety of electronic circuits. With a capacitance value of 1000µF and a rated voltage of 16V, this capacitor is ideal for use in power supply circuits, voltage regulation systems, and filtering applications. It is especially useful in circuits where large amounts of energy storage and stabilization are required while keeping the voltage at or below 16V.

Being an electrolytic capacitor, it utilizes an electrolyte to achieve a high capacitance in a compact form. It is polarized, meaning it must be connected with the correct polarity to ensure proper function and prevent damage or failure.

Key Features:

• Capacitance Value: 1000µF, offering a significant amount of energy storage for voltage smoothing and energy buffering in various applications.

• Rated Voltage: 16V DC, designed for use in circuits with a maximum voltage of 16V.

• Polarized Design: Requires correct polarity (positive lead to higher voltage side) during installation.

• Compact Size: Despite its high capacitance, the capacitor is small and can be easily integrated into many designs without occupying much space.

• Reliable Performance: Built to last and perform consistently in a wide range of electronic applications.

How It Works: The 16V 1000uF Electrolytic Capacitor works by storing electrical energy in an electric field between two electrodes separated by a dielectric material. When voltage is applied, the capacitor charges up and stores energy. When the voltage fluctuates or a load is applied, the capacitor discharges its stored energy, helping to maintain a stable voltage level.

In power supply systems, this capacitor is typically used for voltage smoothing, filtering out ripples or fluctuations in the DC voltage, ensuring that the circuit receives a stable supply. It also serves in signal processing circuits to block unwanted DC signals and allow AC signals to pass.

Applications:

• Power Supply Filtering: Commonly used in power supplies to reduce ripple and smooth DC voltage, providing stable and clean output.

• Voltage Regulation: Useful in DC-DC converters, voltage regulators, and other circuits where stable voltage output is necessary.

• Audio Systems: Often found in audio amplifiers and audio filters, where it helps to block DC components and pass only the AC signals (audio signals).

• Energy Storage: Provides a large amount of energy storage for circuits requiring a buffering or smoothing effect, such as motor drivers and low-power electronic systems.

• Signal Coupling: Acts as a coupling capacitor to block DC signals and allow AC signals to pass between circuit stages.

Specifications:

• Capacitance: 1000µF (microfarads)

• Rated Voltage: 16V DC

• Tolerance: ±20% (standard tolerance for electrolytic capacitors)

• Temperature Range: Typically -40°C to +85°C (check datasheet for specifics)

• Type: Electrolytic, Polarized

• Mounting Style: Radial or Axial (depending on variant)

• Lead Spacing: Typically 5mm or 7.5mm (check datasheet for exact dimensions)

Limitations:

• Polarized: Correct polarity is crucial during installation. Reversing the polarity can cause the capacitor to fail, leak, or rupture.

• Voltage Rating: Do not exceed 16V applied voltage. Over-voltage can cause permanent damage, leakage, or even rupture.

• Lifespan: Electrolytic capacitors have a limited lifespan, especially when exposed to high voltage, temperature, or continuous use. Over time, their capacitance may decrease, or leakage current may increase.

• Size: Though compact, this capacitor might still be too large for applications where space is extremely limited.
