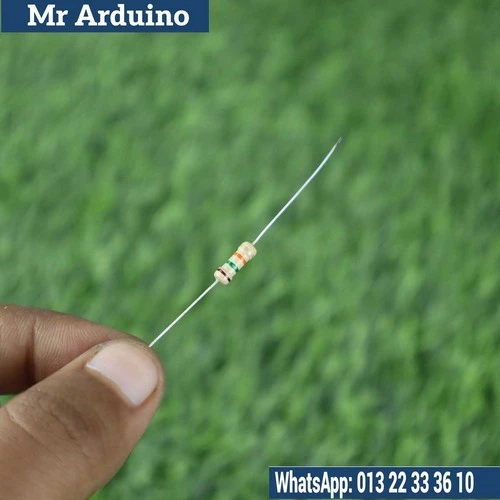

The 15k Ohm 0.5 Watt Resistor is a fixed-value resistor designed with a resistance of 15,000 ohms (15kΩ) and a power rating of 0.5 watts (½ watt). It is commonly used in low-power electronic circuits where current limiting or voltage regulation is required. This resistor type is ideal for applications like voltage dividers, biasing circuits, signal conditioning, and analog signal processing.

Made from high-quality materials like carbon film or metal oxide, the 15k Ohm 0.5 Watt Resistor is a reliable component in general-purpose electronics. Its moderate resistance and low power dissipation make it suitable for controlling current flow in circuits that do not require high power handling.

Key Features:

• Resistance Value: 15,000 Ohms (15kΩ), offering a precise resistance value to control current and voltage in electronic circuits.

• Power Rating: 0.5 Watts (½ Watt), which allows the resistor to safely dissipate up to 0.5 watts of electrical power without overheating.

• Tolerance: Typically ±5%, meaning the actual resistance could deviate by up to 5% from the nominal value.

• Type: Axial-leaded resistor, easy to integrate into through-hole circuits.

• Material: Made from carbon film, metal oxide, or ceramic materials for durability and heat resistance.

• Operating Voltage: Suitable for low-voltage circuits where power dissipation is kept under the 0.5-watt limit.

• Temperature Range: Typically between -55°C to +155°C, though it depends on the material used.

Applications:

1. Voltage Divider Circuits: The 15k Ohm resistor is commonly used in voltage dividers, which are employed to reduce a higher voltage to a lower one. This makes it useful in sensor circuits, signal conditioning, and analog-to-digital conversion.

2. Current Limiting: It can be used in LED circuits or other components where current needs to be limited. This prevents components from overheating or being damaged due to excessive current flow.

3. Biasing Circuits: In transistor or op-amp circuits, the 15k Ohm resistor helps establish the correct biasing conditions for the active devices, ensuring proper operation in amplification circuits.

4. Feedback and Gain Control: In amplifiers, this resistor can be part of the feedback network, helping to set the gain or feedback ratio, which affects the overall response of the circuit.

5. Pull-up or Pull-down Resistor: The 15k Ohm resistor is often used as a pull-up or pull-down resistor in digital circuits, ensuring that floating input pins are properly set to a high or low voltage level.

6. Filter Networks: It can be used in combination with capacitors or inductors to create filtering circuits for low-pass, high-pass, or band-pass filters, which are crucial in audio processing, signal filtering, and RF applications.

7. Impedance Matching: In communication circuits, the 15k Ohm resistor can be used for impedance matching, ensuring that signals transfer smoothly between different stages or components without reflection or signal loss.

8. Audio Applications: In audio amplifiers, the 15k Ohm resistor can be used for volume control, tone control, or equalizer circuits, adjusting the signal strength or frequency response.

How It Works: The 15k Ohm 0.5 Watt Resistor operates according to Ohm's Law, which describes the relationship between voltage (V), current (I), and resistance (R):

$$V = I \times R$$

Where:

• V is the voltage across the resistor.

• I is the current flowing through the resistor.

• R is the resistance (in this case, 15,000 ohms).

The resistor creates a voltage drop across itself when current flows through it. The power dissipated in the form of heat can be calculated using:

$$P = I^2 \times R = \frac{V^2}{R}$$

For example, if the resistor is exposed to a 12V supply:

• The current passing through the resistor is:

  $$I = \frac{V}{R} = \frac{12V}{15,000Ω} = 0.0008A = 0.8mA$$

• The power dissipated by the resistor will be:

  $$P = V \times I = 12V \times 0.0008A = 0.0096W$$

This value is far below the 0.5-watt power dissipation limit, meaning the resistor will operate safely without overheating.

Product Limitations:

• Power Rating: The 0.5-watt power rating limits its use to low-power circuits. If the resistor dissipates more than 0.5 watts, it can overheat, causing it to fail or potentially damage surrounding components.

• Tolerance: With a ±5% tolerance, the actual resistance value may vary slightly. If your application demands precise resistance, a resistor with a tighter tolerance (e.g., ±1% or ±0.5%) may be more appropriate.

• Voltage Rating: Ensure that the voltage across the resistor does not exceed safe limits. High voltage can cause excessive power dissipation and heat buildup, potentially damaging the resistor.

Conclusion: The 15k Ohm 0.5 Watt Resistor is a versatile, reliable component for use in low-power circuits. It is well-suited for applications like voltage dividers, current limiting, signal conditioning, and biasing. Its 0.5-watt power rating makes it ideal for small, low-power circuits, but it’s important to ensure that the power dissipation does not exceed this rating.

Whether you’re working on analog systems, audio electronics, or digital logic circuits, the 15k Ohm resistor offers a great balance between resistance value and power handling capability.
