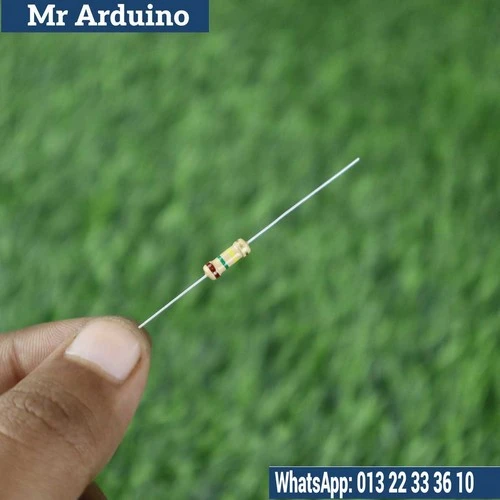

The 150K Ohm 0.5 Watt Resistor is an essential electronic component designed for use in circuits requiring high resistance values and moderate power handling. With a resistance of 150K Ohms (150,000 Ohms) and a power rating of 0.5 Watt, this resistor is ideal for applications where precision is necessary, but the power dissipation needs to be kept low. It is commonly used in high-impedance circuits, voltage dividers, signal conditioning, and other applications where large resistances are required to regulate current flow.

How it Works: This 150K Ohm 0.5 Watt Resistor limits the flow of current in a circuit by introducing resistance, resulting in a voltage drop according to Ohm's Law (V = I * R). The 150K resistance provides a high level of impedance, making it suitable for circuits with lower current requirements. The 0.5-watt power rating ensures that the resistor can safely dissipate up to 0.5 watts of power as heat, making it ideal for low-power circuits where excess heat dissipation is not required.

Specifications:

• Resistance: 150K Ohms (150,000 Ohms)

• Power Rating: 0.5 Watt

• Tolerance: Typically ±5% (check product for exact tolerance)

• Material: Carbon Film or Metal Film (depends on the specific product variant)

• Size: Standard 1/4-watt size for general-purpose, low-power applications

Applications:

• High-Impedance Circuits: Perfect for use in circuits requiring high resistance values to control current flow.

• Voltage Dividers: Commonly used in voltage divider circuits to create different voltage levels in a circuit.

• Signal Conditioning: Used in analog and audio circuits to filter or adjust signals.

• Pull-up or Pull-down Resistors: Ideal for use as pull-up or pull-down resistors in digital logic circuits.

• Low-Power Circuits: Suitable for low-power applications where minimal heat dissipation is required.

Limitations:

• Power Rating: This resistor is rated for 0.5 watts of power dissipation. Exceeding this power rating could lead to overheating and failure of the resistor.

• Tolerance: With a typical ±5% tolerance, the actual resistance may vary slightly from the nominal 150K Ohms, which may impact precision-sensitive applications.

Perfect for high-impedance applications, voltage dividers, signal conditioning, and low-power circuits, the 150K Ohm 0.5 Watt Resistor is an essential component for a variety of electronic projects.
