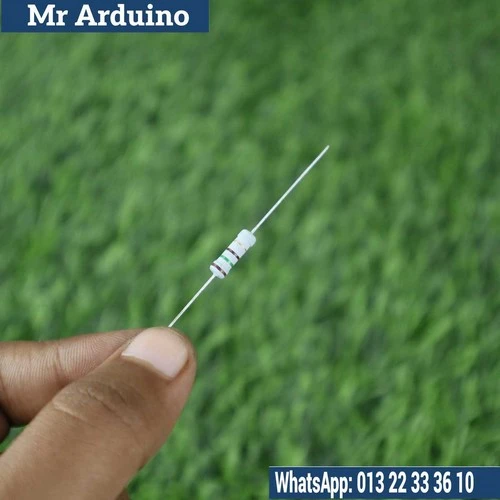

The 150 Ohm 1 Watt Resistor is a highly effective component designed to regulate current flow and prevent damage to sensitive circuit elements. With a resistance value of 150 Ohms and a power rating of 1 Watt, this resistor is perfect for circuits that require moderate current limiting and power dissipation. It is ideal for use in applications such as LED circuits, voltage dividers, and power supply systems, offering reliable performance under moderate power conditions.

How it Works: The 150 Ohm 1 Watt Resistor functions by resisting the flow of electrical current through a circuit, causing a voltage drop according to Ohm’s Law (V = I * R). The 150 Ohm resistance value ensures that the current is limited to a safe level, protecting other components from excess current. The 1-watt power rating ensures that it can safely dissipate up to 1 watt of electrical power as heat, making it suitable for moderate power applications.

Specifications:

• Resistance: 150 Ohms

• Power Rating: 1 Watt

• Tolerance: Typically ±5% (check product for specific tolerance)

• Material: Carbon Film or Metal Film (depending on the variant)

• Size: Standard 1-watt size for general-purpose use in moderate-power applications

Applications:

• Current Limiting: Often used in series with components such as LEDs to limit the amount of current flowing through and protect them from excessive current.

• Voltage Divider Circuits: Ideal for voltage dividers to generate specific lower voltage values from higher voltage sources.

• Power Supply Circuits: Used in power supply systems to help regulate current flow and maintain stable operation of the circuit.

• Signal Conditioning: Employed in analog circuits to adjust, filter, or smooth signals.

• Audio Circuits: Commonly used in audio applications for managing impedance and current dissipation.

Limitations:

• Power Rating: This resistor has a maximum 1-watt power rating. If exceeded, the resistor could overheat and fail.

• Tolerance: With a ±5% tolerance, the actual resistance may vary slightly from the nominal 150 Ohms, which may impact performance in precision-sensitive applications.

The 150 Ohm 1 Watt Resistor is a reliable and versatile choice for current limiting, voltage dividers, power supply regulation, and signal conditioning in moderate-power circuits.
