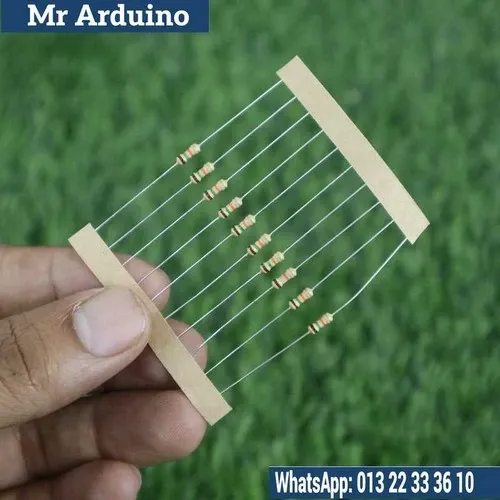

The 15K Ohm Resistor Quarter Watt 0.25W is a fixed resistor with a resistance value of 15,000 ohms (15KΩ) and a power rating of 0.25 watts (quarter-watt). This resistor is designed for use in low-power electronic circuits, helping to limit current, divide voltages, or adjust signal levels. Due to its low power rating, it is typically used in applications where minimal power dissipation is required, such as voltage dividers, current-limiting circuits, and signal processing. The 0.25W power rating ensures that the resistor does not overheat under normal operating conditions.

The quarter-watt size makes this resistor highly compact, allowing it to be used in space-constrained designs, including PCBs and breadboards. It is ideal for both hobbyists and professionals who need reliable, low-power components in their projects.

Key Features:

• Resistance Value: 15K ohms, suitable for a variety of moderate resistance applications where voltage division or current control is needed.
• Power Rating: 0.25W (quarter-watt), designed to operate in low-power circuits where heat dissipation is minimal.
• Tolerance: Typically available with a ±5% tolerance (standard), although precision versions with ±1% tolerance may also be available for high-accuracy applications.
• Compact Size: The quarter-watt form factor makes it suitable for compact electronic devices and small PCBs where space is limited.
• Material: Typically made from carbon film or metal oxide, providing durability and long-term stability.

How It Works: The 15K Ohm Resistor Quarter Watt 0.25W follows Ohm's Law (V = IR), where V is the voltage across the resistor, I is the current flowing through it, and R is the resistance. The 15K ohms value determines the current flow when a specific voltage is applied across the resistor.

For example, if you apply a 5V voltage across the 15K ohm resistor, the current can be calculated as:

$$I = \frac{V}{R} = \frac{5V}{15KΩ} = 0.333 \, mA$$

This means that with a 5V supply, the current flowing through the 15K ohm resistor would be approximately 0.333 milliamps (mA). This makes it suitable for low-current applications.

The 0.25W power rating ensures the resistor can safely dissipate up to 0.25 watts of power without overheating or causing damage.

Applications:

• Voltage Dividers: Used in voltage divider circuits to produce specific voltage levels required for components like sensors, microcontrollers, or analog-to-digital converters (ADC).
• Signal Conditioning: Helps in signal processing by attenuating or filtering signals, ensuring that the signals have the desired amplitude for the circuit.
• Current Limiting: Ideal for LED circuits to regulate the current flowing through the LED, preventing damage due to excessive current.
• Impedance Matching: Used in audio circuits to match impedances between components, optimizing the power transfer and maintaining signal quality.
• RC Circuits: Can be part of RC circuits to set the time constants for filtering, smoothing signals, or creating delays.
• Sensor Circuits: Often used in sensor circuits to control and stabilize the voltage supplied to the sensor, ensuring accurate readings.
• Audio Equipment: Used in tone control or audio signal processing circuits to regulate signal levels and improve performance.

Limitations:

• Low Power Rating: The 0.25W power rating limits its application to low-power circuits. For higher power applications, a resistor with a higher power rating (e.g., 0.5W, 1W) should be used.
• Current Handling: This resistor is designed for low-current applications. For circuits requiring higher current, a lower resistance with a higher power rating should be considered to prevent overheating.
• Tolerance: With a ±5% tolerance, the actual resistance may vary slightly from the nominal value. In applications requiring high precision, precision resistors with ±1% tolerance are recommended.

The 15K Ohm Resistor Quarter Watt 0.25W is a versatile and reliable component that is commonly used in low-power electronic circuits, voltage regulation, signal processing, LED circuits, and audio systems. Its compact size, affordability, and low power dissipation make it an ideal choice for hobbyist and professional electronic designs.
