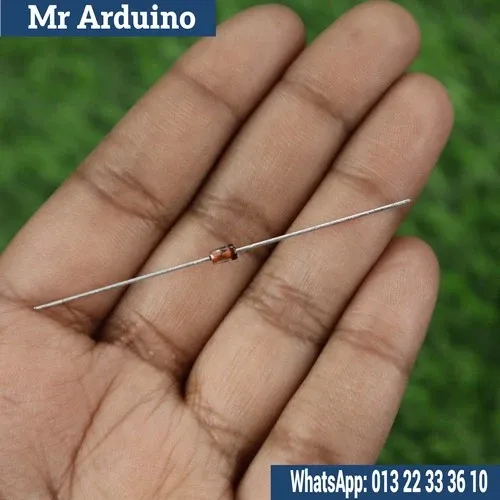

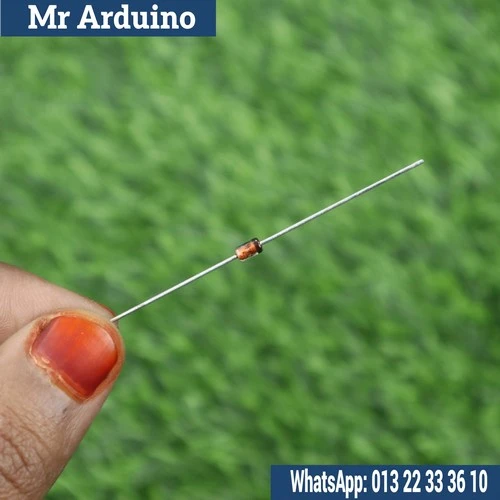

The 13V 1 Watt Zener Diode is a precision voltage regulator diode designed to maintain a stable output of 13 volts in reverse bias. With a power dissipation rating of 1 watt, this diode is ideal for protecting circuits against voltage surges or over-voltage conditions. It is commonly used in voltage regulation applications, surge protection, and signal clipping circuits. This Zener diode is built to withstand moderate power loads and offers reliability in various electronic projects, from hobbyist circuits to professional power supply designs.

How It Works:

When the reverse voltage across the Zener diode reaches 13V, it enters breakdown mode and begins to conduct in reverse, maintaining the voltage across it at a stable 13V. This voltage clamping behavior ensures that sensitive components in the circuit are protected from higher voltages. The diode’s 1-watt power dissipation rating means it can safely dissipate heat from voltage regulation without the risk of thermal damage, as long as the circuit is designed with proper heat management.

Typical Use Cases:

• Voltage regulation in low to medium-power circuits

• Surge protection for sensitive components like transistors, ICs, and microcontrollers

• Clipping or limiting signal voltages in audio or data communication circuits

• Power supply designs for Arduino or other DIY electronics

• Protection in automotive or battery-operated devices

Limitations:

• Maximum power dissipation is limited to 1W — exceeding this can lead to overheating and potential failure.

• Requires proper heat dissipation in high-voltage or high-current applications.

• Voltage tolerance typically ranges ±5%, which may cause slight deviations in voltage regulation.

• Not ideal for high-current or heavy-duty applications due to its lower power capacity.
