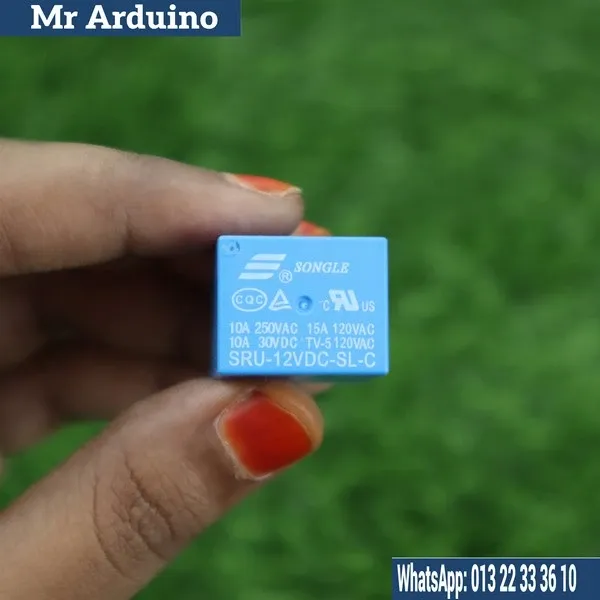

The 12V Relay Songol 5 Pin is a compact and reliable relay designed for controlling high-voltage circuits with a low-voltage signal. This relay operates on a 12V DC input and is equipped with 5 pins for easy wiring and installation. It is commonly used in electronic projects, automotive systems, home automation, and industrial control applications, where switching larger currents or voltages is required with minimal power consumption from the control side.

The Songol 5 Pin relay is built for durability and offers a reliable switching mechanism, making it ideal for controlling high-power devices such as motors, lights, or other electrical appliances. With its standard 5-pin configuration, it can be easily integrated into various circuits for switching and automation purposes.

Key Features:

• Operating Voltage: 12V DC, making it suitable for use in systems powered by a 12V power supply.

• 5-Pin Configuration: Equipped with 5 pins for easy integration into most standard relay circuits, including Common (COM), Normally Open (NO), Normally Closed (NC), and Coil pins.

• High Switching Capacity: Capable of switching high-power devices such as motors, lights, and other appliances that require a relay for control.

• Compact Design: Small and easy to mount in different setups, whether in automotive systems, DIY projects, or industrial applications.

• Durable Construction: Built with high-quality materials, ensuring a long lifespan and reliable performance in various environments.

• Low Power Consumption: Operates on 12V DC, which is commonly available in many battery-powered systems, ensuring minimal power usage.

• Fast Switching: The relay offers quick and efficient switching of connected circuits, ensuring minimal delay and consistent performance.

How it Works:

The 12V Relay Songol 5 Pin works by using an electromagnet to control the switching mechanism. When 12V DC is applied to the coil pin, it generates a magnetic field that moves the switching contacts. The relay has three main contacts:

1. Common (COM): The common pin connects to the power source or device that needs to be switched.

2. Normally Open (NO): When the relay is not activated, the NO contact remains open, meaning no current flows through it. When the relay is energized, the NO contact closes, completing the circuit.

3. Normally Closed (NC): The NC contact is closed when the relay is not activated. When the relay is energized, the NC contact opens, breaking the circuit.

The relay essentially acts as an electronically controlled switch. By applying 12V DC to the coil, the contacts change positions, allowing you to control a larger current with a smaller control signal. This makes it ideal for switching devices like motors, lights, alarms, or other electrical appliances that require a higher current or voltage.

Limitations:

• Voltage Rating: The relay is designed for use with 12V DC, so it is not suitable for use with higher or lower voltage systems unless appropriately adapted.

• Current Handling: While the relay can handle moderate currents, the maximum current and voltage ratings should be adhered to in order to avoid overheating or damage.

• Not Waterproof: This relay is not designed for use in outdoor or wet environments unless protected by a waterproof enclosure.

• Inductive Load Handling: Care must be taken when using the relay to control inductive loads (e.g., motors or solenoids) as they can cause voltage spikes. A flyback diode may be needed to protect the relay from these spikes.

Typical Applications:

• Automotive Systems: Ideal for controlling lights, horns, or other electrical devices in 12V DC-powered vehicles.

• Home Automation: Perfect for switching appliances or lighting systems in home automation projects, allowing you to control devices remotely.

• DIY Electronics Projects: Commonly used in Arduino or Raspberry Pi projects for switching high-power devices like motors or solenoids.

• Industrial Automation: Suitable for use in industrial control systems where low-voltage control signals need to switch high-voltage circuits.

• Alarm Systems: Used for switching on/off alarms, security lights, or sirens in security systems.

• Remote Switching: Can be used in systems that require remote switching of appliances, lights, or motors with a low-voltage control signal.

The 12V Relay Songol 5 Pin provides an efficient and reliable way to control high-power devices with a low-voltage control signal, making it an essential component for various electronic and automation systems.
