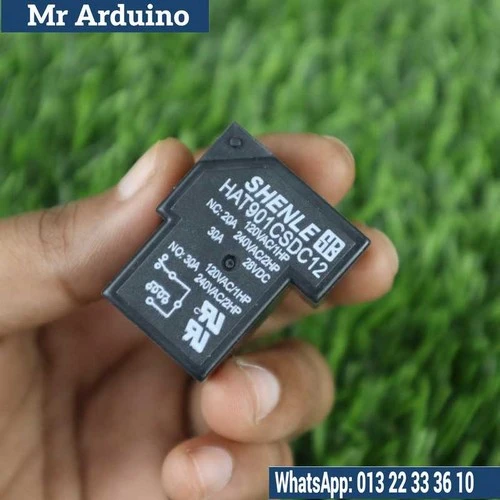

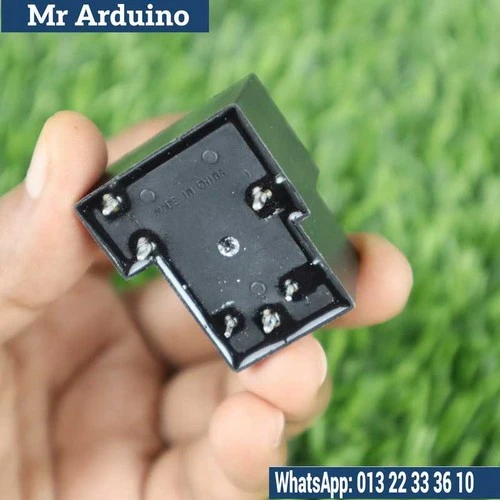

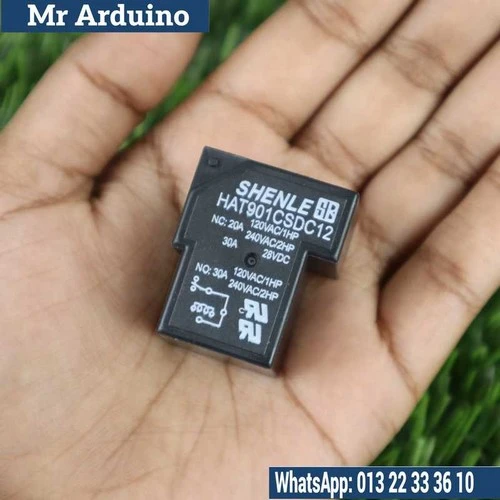

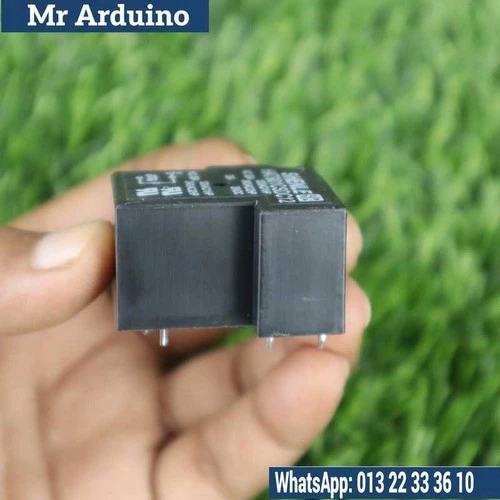

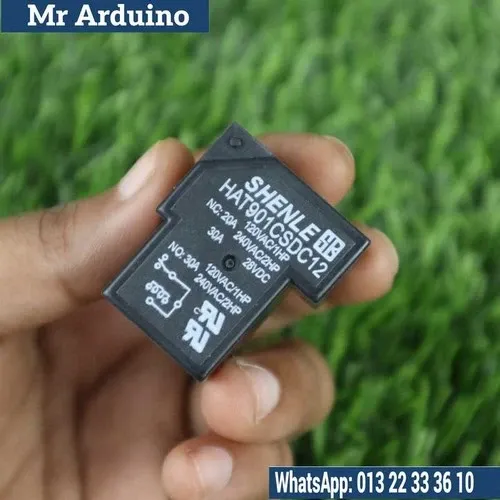

The 12V 30A Bang Relay Shenle is a high-power, heavy-duty relay designed to handle substantial loads, with a 12V DC control voltage and a high current rating of 30A. This relay is engineered for applications requiring the control of high-current circuits with a low-voltage signal, and its robust construction ensures reliable switching even in demanding conditions. The Bang Relay is ideal for automotive, industrial, and power control systems, where high current switching is required for devices such as motors, lights, solenoids, or other heavy-duty electrical components.

The relay is designed with Shenle as the manufacturer, a well-known brand known for producing durable and high-quality relays. It can handle up to 30A of current, making it suitable for both low and high-power applications. The 12V operating voltage ensures compatibility with standard automotive and low-voltage power systems.

Key Features:

• Control Voltage: 12V DC (Standard for automotive and low-voltage systems)

• Current Rating: 30A, suitable for heavy-duty electrical applications

• Manufacturer: Shenle, known for reliable and high-quality relay components

• Contact Type: Typically SPDT (Single Pole Double Throw) or SPST (Single Pole Single Throw) depending on the model

• Durability: Built to withstand high-current switching with robust construction

• Compact and durable design, ideal for automotive, industrial, and high-power switching applications

Applications:

• Automotive systems for controlling high-power components such as lights, horns, and motors

• Industrial control systems to manage heavy-duty electrical equipment like pumps, motors, and solenoids

• Power control systems in electrical panels for managing appliances, heating elements, or other high-power devices

• Home automation systems that require reliable switching for high-current circuits

• Prototyping and DIY electronics projects requiring reliable switching for heavy loads

How It Works: The 12V 30A Bang Relay Shenle operates on the principle of electromagnetism. When a 12V DC voltage is applied to the coil, it generates a magnetic field that actuates the relay’s internal switch, opening or closing the contacts. This allows for the control of high-current devices (up to 30A) with the low-power 12V DC input. The relay ensures that the high-power circuit is safely isolated from the low-power control circuit, providing reliable switching in environments with large electrical loads. Its robust construction and heavy-duty contacts make it suitable for use in harsh and high-power environments.

Product Limitations:

• Voltage Rating: The relay should only be operated within the 12V DC control voltage to avoid damage to the coil or the relay's contacts.

• Current Rating: The 30A current rating should not be exceeded, as this could cause overheating, damage, or failure of the relay's contacts.

• Contact Life: Although designed for heavy-duty applications, frequent switching of high-power loads can cause wear and tear on the contacts over time, reducing the lifespan of the relay.

• Temperature Sensitivity: The relay should be used within its rated temperature range, as extreme temperatures could affect its performance and longevity.

This 12V 30A Bang Relay Shenle is the perfect choice for high-power control applications, providing reliable and durable switching capabilities for both automotive and industrial systems.
