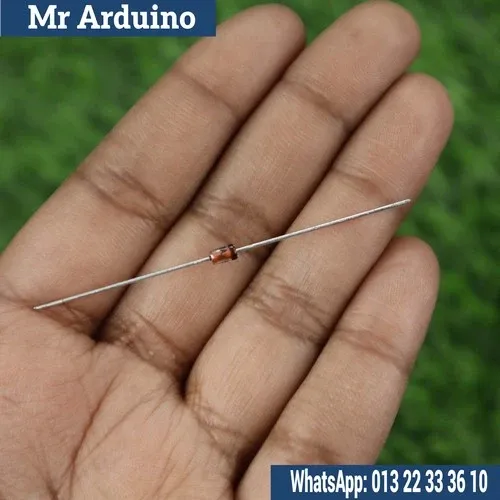

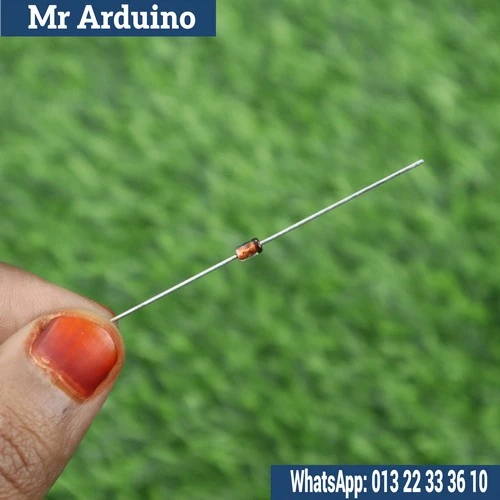

12V 1 Watt Zener Diode

(0) 0 Reviews 0 Orders 0 Wish listed

৳4

Quantity :

Total price :

(Tax : )

Overview
Reviews

The 12V 1 Watt Zener Diode is a high-quality, reliable component designed to regulate voltage in various low-power electronic circuits. It maintains a stable 12V output when connected in reverse bias, making it an ideal choice for over-voltage protection, voltage regulation, and signal clipping applications. With a 1-watt power dissipation rating, this diode can handle moderate power levels while ensuring the stability and protection of sensitive electronic components in your projects.

How It Works:

When a reverse voltage exceeding 12V is applied to the Zener diode, it enters its breakdown region and begins to conduct, maintaining the voltage across it at 12V. This regulation prevents damage to sensitive components by clamping the voltage to a safe and consistent level. The 1-watt power dissipation allows the diode to handle small to moderate amounts of energy without overheating, as long as the circuit is designed for adequate heat management.

Typical Use Cases:

Voltage regulation in power supplies
Over-voltage protection for sensitive components like microcontrollers and transistors
Signal limiting and clipping in audio or signal processing circuits
Power protection for LED circuits and other small devices
Voltage stabilizer in battery-powered projects

Limitations:

Maximum power dissipation of 1W — exceeding this rating can cause thermal failure.
Requires appropriate heat sinking or ventilation in high-power applications to prevent overheating.
Tolerance of Zener voltage is typically ±5%, which could cause small variations in voltage regulation.
Not suitable for high-current or heavy-duty power regulation tasks.
