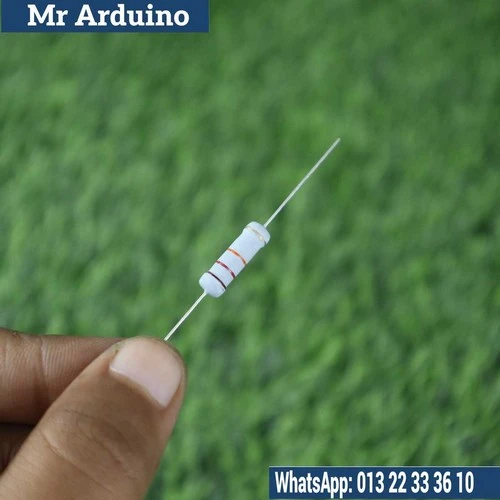

The 12K Ohm 2 Watt Resistor is a high-value resistor designed for applications requiring current control and power dissipation. With a resistance of 12K Ohms (12,000 Ohms) and a power rating of 2 Watts, this resistor is ideal for circuits that involve moderate power and high-impedance applications. It is commonly used in voltage dividers, signal processing, and sensor circuits, offering reliable performance and protecting sensitive components from excess current.

How it Works: The 12K Ohm 2 Watt Resistor operates by resisting the flow of electrical current, creating a voltage drop based on Ohm’s Law (V = I * R). The 12K Ohm resistance value limits the amount of current flowing through the circuit, making it suitable for circuits that need to handle high impedance and low current. With a 2-watt power rating, the resistor can safely dissipate up to 2 watts of power as heat without the risk of overheating, making it suitable for moderate power applications.

Specifications:

• Resistance: 12K Ohms (12,000 Ohms)

• Power Rating: 2 Watts

• Tolerance: Typically ±5% (check product for exact tolerance)

• Material: Carbon Film or Metal Film (depending on the variant)

• Size: Standard 2-watt size for higher-power applications

Applications:

• Voltage Dividers: Perfect for use in voltage divider circuits to reduce voltages to desired levels while ensuring safe power dissipation.

• Signal Conditioning: Often used in signal conditioning circuits for filtering, amplifying, or modifying analog signals, particularly in audio, RF, and sensor systems.

• High-Impedance Circuits: Ideal for high-impedance applications where precise control over current is needed, such as in sensor interfaces and high-accuracy devices.

• Current Limiting: Can be used in series with LEDs, transistors, and other components to limit the current and prevent circuit damage.

• Pull-up/Pull-down Resistors: Commonly used in digital circuits to set logical states with a high resistance value.

Limitations:

• Power Rating: The 2-watt power rating should not be exceeded. Exceeding this limit can cause overheating, resistor damage, and potential failure of the resistor.

• Tolerance: With a ±5% tolerance, the actual resistance may slightly vary from the nominal 12K Ohms, which could impact precision in circuits requiring exact resistance.

The 12K Ohm 2 Watt Resistor is ideal for voltage dividers, signal conditioning, high-impedance circuits, and current limiting applications in moderate to high-power systems.
