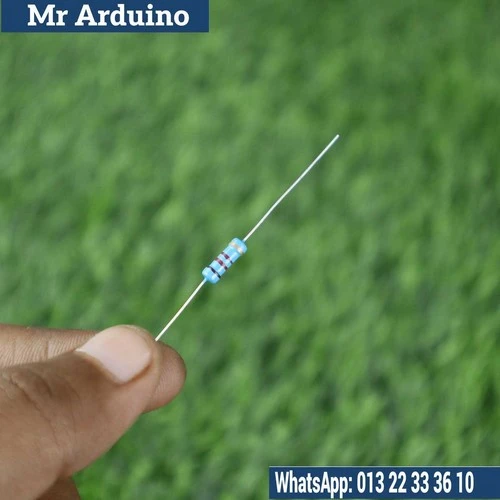

The 1.2K Ohm 0.5 Watt Resistor is a fixed-value resistor with a resistance of 1,200 ohms (1.2kΩ) and a power rating of 0.5 watts (½ watt). This type of resistor is commonly used in low-power electronic circuits where controlled current and voltage regulation are needed. The 1.2kΩ resistance value provides excellent utility for voltage dividers, biasing circuits, current-limiting applications, and signal conditioning tasks.

Made from high-quality materials such as carbon film or metal oxide, this resistor offers great durability and reliability in various applications. The 0.5-watt power rating ensures it can be used in circuits where power dissipation does not exceed this limit.

Key Features:

• Resistance Value: 1,200 Ohms (1.2kΩ), providing a precise resistance for controlling current flow in low-power applications.

• Power Rating: 0.5 Watts (½ Watt), capable of safely dissipating up to 0.5 watts of power without risk of overheating.

• Tolerance: Typically ±5%, meaning the actual resistance can vary by up to 5% from the nominal value.

• Type: Axial-leaded resistor, making it easy to integrate into through-hole circuits.

• Material: Constructed from carbon film or metal oxide, providing good heat resistance and durability.

• Operating Voltage: Designed for low-voltage applications where the power dissipation is kept below the 0.5-watt rating.

• Temperature Range: Typically works within the temperature range of -55°C to +155°C, depending on the resistor's material composition.

Applications:

1. Voltage Divider Circuits: The 1.2k Ohm resistor is often used in voltage dividers to scale down higher voltages for microcontrollers, sensors, or ADCs. It helps create reference voltages for circuits that require specific voltage levels.

2. Biasing Circuits: In transistor-based circuits, the 1.2k Ohm resistor is commonly used to set the biasing of BJT (Bipolar Junction Transistors) or FETs (Field Effect Transistors), ensuring the correct operation of amplifiers or switches.

3. Signal Conditioning: It can be used in signal conditioning circuits to regulate current flow and maintain signal integrity, especially in analog systems.

4. Current Limiting: The resistor is ideal for current-limiting applications, such as LED circuits, where it ensures that excessive current doesn't flow through components, preventing damage.

5. Pull-up or Pull-down Resistor: In digital logic circuits, this resistor is used as a pull-up or pull-down resistor, ensuring that inputs are kept at a defined high or low voltage level, preventing erratic behavior from floating pins.

6. Filter Networks: The 1.2k Ohm resistor can be used in combination with capacitors or inductors to create low-pass, high-pass, or band-pass filters for audio, signal processing, or RF applications.

7. Impedance Matching: In communication circuits, this resistor is often used for impedance matching, ensuring that the signal passes efficiently from one stage to another without reflection or loss.

8. Audio Applications: The 1.2k Ohm resistor is commonly used in audio circuits, such as equalizers, tone controls, and filtering circuits, to adjust the signal strength and frequency response in audio processing.

How It Works: The 1.2k Ohm 0.5 Watt Resistor functions based on Ohm's Law, which describes the relationship between voltage (V), current (I), and resistance (R):

$$V = I \times R$$

Where:

• V is the voltage across the resistor.

• I is the current flowing through the resistor.

• R is the resistance value (in this case, 1,200 ohms).

The resistor creates a voltage drop when current flows through it. The power dissipated as heat can be calculated using the following formula:

$$P = I^2 \times R = \frac{V^2}{R}$$

For example, if the resistor is connected to a 12V supply:

• The current flowing through the resistor is:

  $$I = \frac{V}{R} = \frac{12V}{1,200Ω} = 0.01A = 10mA$$

• The power dissipated by the resistor would be:

  $$P = V \times I = 12V \times 0.01A = 0.12W$$

This is well below the 0.5-watt rating, indicating the resistor will operate safely without overheating in this case.

Product Limitations:

• Power Rating: The 0.5-watt power rating limits the resistor to low-power circuits. If the resistor dissipates more than 0.5 watts, it can overheat and potentially fail, damaging the circuit.

• Tolerance: The ±5% tolerance means the actual resistance value may vary slightly from the nominal value. For applications requiring higher precision, resistors with tighter tolerance (e.g., ±1% or ±0.5%) might be more suitable.

• Voltage Rating: Ensure that the voltage applied to the resistor doesn't exceed the 0.5-watt power dissipation limit. If the voltage is too high, the resistor may overheat.

Conclusion: The 1.2K Ohm 0.5 Watt Resistor is an essential component in low-power electronics. Its 1,200 ohm resistance makes it ideal for use in voltage dividers, biasing, current limiting, signal conditioning, and filtering applications. With a 0.5-watt power rating, it is perfect for low-power circuits where careful control of current is required.

This resistor is widely used in audio, analog, digital, and signal processing circuits. It provides an excellent balance between resistance value and power dissipation, making it a reliable choice for various types of electronic projects.
