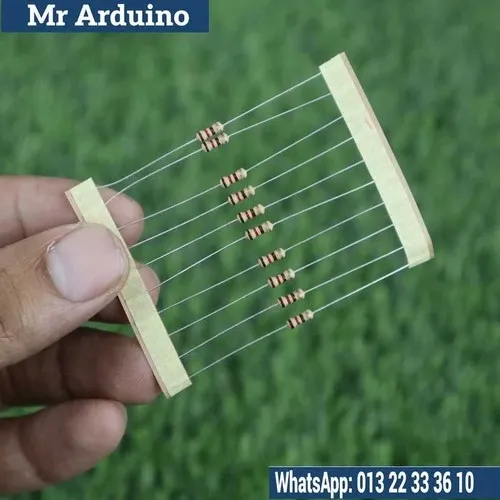

The 120 Ohm Resistor Quarter Watt 0.25W is a fixed resistor with a resistance value of 120 ohms and a power rating of 0.25 watts (quarter-watt). This resistor is commonly used in low-power electronic circuits where moderate resistance is needed to limit current flow. It is ideal for applications like current limiting, voltage dividing, and signal conditioning.

The 120 ohm resistor is widely used in digital circuits, sensor interfaces, and power control circuits. Its small size and quarter-watt power rating make it a suitable choice for compact designs, hobbyist projects, and prototyping, where low power dissipation and minimal heat generation are required.

Key Features:

• Resistance Value: 120 ohms, making it suitable for current-limiting applications, voltage dividers, and analog signal processing.
• Power Rating: 0.25W (quarter-watt), ideal for low-power applications where minimal heat dissipation is needed.
• Tolerance: Typically ±5% tolerance, but precision versions with ±1% tolerance may be available for applications requiring more accurate resistance values.
• Compact Size: The quarter-watt form factor is ideal for use in breadboards, PCBs, and other space-constrained designs.
• Material: Made from carbon film or metal oxide, ensuring stability, durability, and reliable performance in low-power circuits.

How It Works: The 120 Ohm Resistor Quarter Watt 0.25W operates according to Ohm’s Law (V = IR), where V is the voltage, I is the current, and R is the resistance. By controlling the amount of current that flows through a circuit, it helps maintain proper voltage levels and protect sensitive components.

For example, if a 5V supply is applied across the 120 ohm resistor, the current flowing through it can be calculated as:

$$I = \frac{V}{R} = \frac{5V}{120Ω} \approx 0.04167 \, A = 41.67 \, mA$$

This means that with a 5V supply, the current flowing through the 120 ohm resistor will be approximately 41.67 milliamps (mA), which is a higher current compared to higher-value resistors.

The power dissipated by the resistor can be calculated using the formula:

$$P = I^2 \times R$$

Substituting the current into the equation:

$$P = (0.04167 \, A)^2 \times 120Ω \approx 0.208W$$

This results in 0.208W of power dissipation, which is within the 0.25W power rating of the resistor. Therefore, it is safe to use in this application without exceeding the power rating.

Applications:

• Current Limiting: The 120 ohm resistor can be used to limit current in circuits with components that require moderate current protection, such as LEDs, to prevent damage from excessive current.
• Voltage Dividers: Ideal for use in voltage divider circuits to provide specific voltage levels required for analog-to-digital conversion (ADC) or sensor circuits.
• Signal Conditioning: Used in signal conditioning circuits where it can attenuate or filter signals, helping to reduce noise or unwanted frequency components in audio and other analog signals.
• Power Control: Often employed in power control circuits to regulate voltage and current, ensuring components like transistors or ICs receive the correct input voltage.
• Resistor Networks: Frequently used in resistor networks for balancing signals, dividing voltages, or configuring input or output stages in analog systems.
• Test and Measurement: Can be used in test equipment to simulate specific loads or measure circuit behavior under different resistive conditions.

Limitations:

• Low Power Rating: The 0.25W power rating makes this resistor suitable only for low-power circuits. For higher power applications, consider a higher-power resistor (e.g., 0.5W or 1W).
• Current Handling: This resistor is designed for moderate current flow (around 41.67 mA in a 5V circuit). For circuits with higher current demands, a lower resistance value and a higher power-rated resistor would be necessary to prevent overheating.
• Tolerance: With a ±5% tolerance, the actual resistance value may vary slightly. If precision is required, look for a precision resistor with a ±1% tolerance.

The 120 Ohm Resistor Quarter Watt 0.25W is a reliable and versatile component for a variety of low-power electronic circuits. Its ability to limit current, divide voltages, and filter signals makes it an essential part of circuits that require moderate resistance without excessive power dissipation. Whether you are working on current-limiting for LEDs, voltage dividers, or signal conditioning, this resistor provides stable and efficient performance for your applications. Its compact size, affordable cost, and durable construction make it an excellent choice for DIY electronics, hobby projects, and engineering designs.
