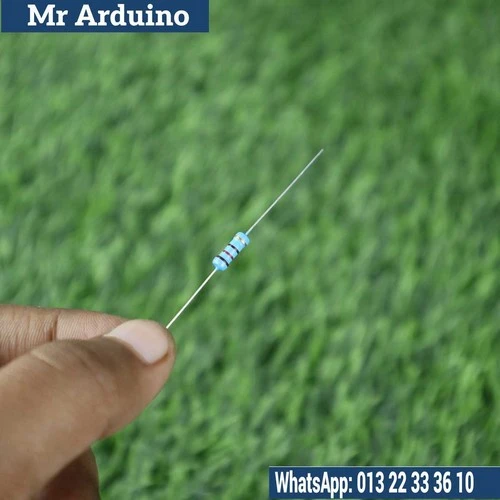

The 120 Ohm 0.5 Watt Resistor is a versatile and reliable electronic component designed for controlling current flow and protecting sensitive components in low to moderate power circuits. With a resistance of 120 Ohms and a power rating of 0.5 Watt, this resistor is ideal for applications where current needs to be limited while keeping power dissipation at a safe level. It is commonly used in applications like LED circuits, voltage dividers, and signal processing.

How it Works: The 120 Ohm 0.5 Watt Resistor operates by restricting the flow of electric current, creating a voltage drop according to Ohm's Law (V = I * R). This resistor allows a precise amount of current to pass through the circuit, preventing excessive current from damaging components. The 0.5-watt power rating indicates that this resistor can safely dissipate up to 0.5 watts of electrical power as heat, making it suitable for low-power circuits where heat dissipation must be minimized.

Specifications:

• Resistance: 120 Ohms

• Power Rating: 0.5 Watt

• Tolerance: Typically ±5% (check product for specific tolerance)

• Material: Carbon Film or Metal Film (depending on the variant)

• Size: Standard 1/4-watt size for general-purpose, low-power applications

Applications:

• Current Limiting: Frequently used in series with LEDs and other components to control the amount of current flowing through the circuit and prevent damage.

• Voltage Divider: Used in voltage divider circuits to generate specific voltages for various parts of the circuit.

• Signal Conditioning: Ideal for analog circuits where signal shaping, smoothing, or filtering is required.

• Basic Circuit Protection: Helps protect sensitive components by reducing excessive current in low-power systems.

• Audio and Communication Circuits: Often used in audio amplifiers and communication systems for impedance matching or signal control.

Limitations:

• Power Rating: The 0.5-watt power rating should not be exceeded, as doing so can cause the resistor to overheat and fail.

• Tolerance: With a ±5% tolerance, the actual resistance value may vary slightly from the nominal 120 Ohms, which may affect precision in circuits that require exact resistance.

This 120 Ohm 0.5 Watt Resistor is an excellent choice for low-power applications, current limiting, signal processing, and basic circuit protection.
