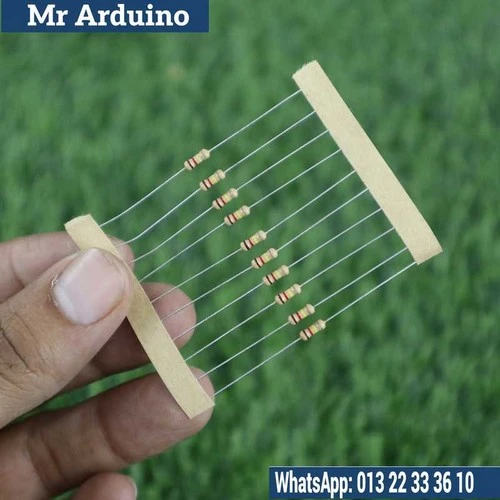

The 120K Ohm Resistor Quarter Watt 0.25W is a high-quality resistor with a resistance value of 120,000 ohms (120K ohms) and a 0.25-watt (quarter watt) power rating. This resistor is ideal for low-power electronic circuits that require precise resistance to control current and voltage while minimizing heat generation. With a 0.25-watt power rating, it is designed to work efficiently in circuits where power dissipation is minimal, making it a great choice for energy-conscious designs.

This 120K ohm resistor is commonly used in voltage dividers, pull-up/pull-down resistors, feedback loops, and other applications where higher resistance values are needed in low-power electronic systems.

Key Features:

• Resistance Value of 120K Ohms: Provides accurate resistance for controlling current and voltage in circuits requiring higher resistance.
• 0.25-Watt Power Rating (Quarter Watt): Safe for dissipating up to 0.25 watts of power, making it ideal for low-power circuits where heat generation must be minimal.
• Compact Size: Small and easy to integrate into breadboards, PCBs, and compact designs.
• Durable Construction: Made from high-quality materials for long-lasting performance and reliability in electronic systems.
• Versatile Applications: Perfect for use in voltage dividers, signal conditioning, biasing, feedback networks, and other high-resistance applications in low-power electronics.

How It Works:

1. Current Limiting: The 120K ohm resistor limits the flow of current in the circuit, providing protection to sensitive components by preventing excessive current that could cause damage.
2. Power Dissipation: With its 0.25-watt power rating, this resistor efficiently dissipates heat, making it suitable for low-power circuits with minimal heat generation.
3. Voltage Regulation: The 120K ohm resistor helps maintain consistent voltage levels in circuits that require stable voltage regulation, protecting other components from potential voltage spikes.
4. Signal Conditioning: Commonly used in voltage divider circuits and other signal processing applications, the 120K resistor helps fine-tune voltage and current for optimal circuit performance.

Limitations:

• Power Rating: This resistor is rated for 0.25 watts of power dissipation. If the circuit demands more than this amount of power, the resistor may overheat and fail.
• Tolerance: The actual resistance may vary slightly from the nominal 120K ohms based on the tolerance level, typically ±5% or ±1%.
• Not Suitable for High-Power Circuits: Designed for low-power applications, this resistor is not appropriate for circuits that require significant power dissipation or generate substantial heat.

Perfect for:

• Low-Power Circuits: Ideal for battery-powered devices, low-voltage systems, and energy-efficient designs where power loss and heat buildup need to be minimized.
• DIY Electronics & Prototyping: A reliable resistor for hobbyists, students, and engineers working on breadboards, PCBs, and experimental circuits.
• Voltage Dividers & Signal Processing: Excellent for voltage divider circuits and other applications requiring higher resistance values to adjust voltage and current levels.
• Current Limiting & Feedback Circuits: Suitable for current-limiting applications, biasing, and feedback networks in analog and digital systems.

The 120K Ohm Resistor Quarter Watt 0.25W is a reliable and efficient component, perfect for high-resistance, low-power applications. Whether you're working on voltage dividers, signal conditioning, or current-limiting circuits, this resistor ensures precise and efficient performance while minimizing power dissipation and heat generation.
