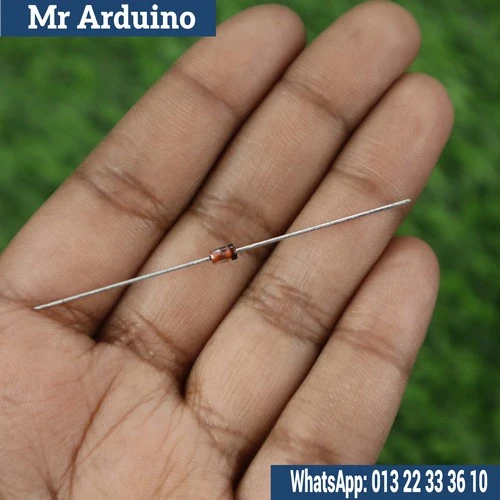

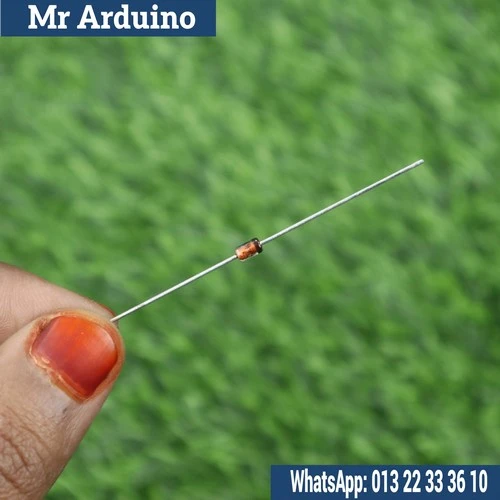

10V 1 Watt Zener Diode

(0) 0 Reviews 0 Orders 0 Wish listed

৳2

Quantity :

Total price :

(Tax : )

Overview
Reviews

The 10V 1 Watt Zener Diode is a precision voltage regulation component designed to provide a stable 10V output when reverse-biased. With a power dissipation rating of 1 watt, this diode is ideal for use in circuits where voltage regulation or over-voltage protection is needed. It is commonly used in power supply circuits, signal processing, and battery-powered projects, offering reliable voltage clamping with a compact form factor.

How It Works:

In reverse bias, the 10V Zener Diode conducts when the reverse voltage exceeds 10V, maintaining a stable 10V across its terminals. This makes it an excellent choice for voltage regulation in low-power applications, protecting sensitive components from over-voltage conditions. The 1-watt power rating allows the diode to safely handle moderate power dissipation, ensuring reliable performance without overheating.

Typical Use Cases:

Voltage regulation for low-power power supplies
Over-voltage protection for microcontrollers and sensitive electronics
Signal clipping and limiting in audio or communication circuits
Battery-powered device protection
Surge protection in DC circuits

Limitations:

1 Watt maximum power dissipation — exceeding this may cause thermal damage.
Not suitable for high-current or high-power applications.
Requires proper heat dissipation to avoid overheating.
Voltage tolerance typically varies within ±5%, which could cause slight deviations in the regulated voltage.
Not suitable for high-frequency applications due to parasitic capacitance.
