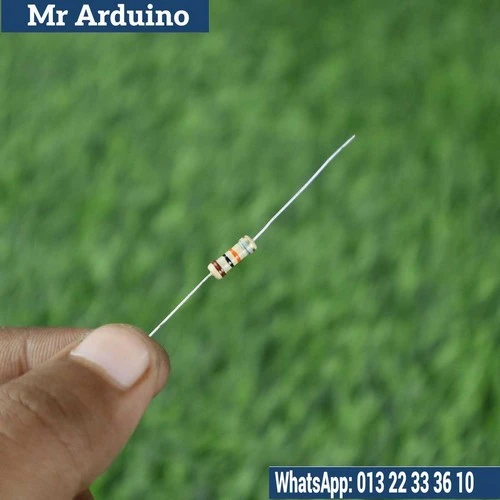

The 10K Ohm 0.5 Watt Resistor is a fixed-value resistor designed with a resistance of 10,000 ohms (10kΩ) and a power rating of 0.5 watts (½ watt). It is a commonly used component in electronic circuits where precise control of current and voltage is necessary. The 10kΩ resistance value makes it suitable for a variety of applications, including voltage dividers, biasing circuits, and signal processing.

This resistor is made from durable materials like carbon film or metal oxide, ensuring reliability and longevity in low-power applications. The 0.5-watt power rating makes it ideal for circuits that do not involve high power but require consistent performance.

Key Features:

• Resistance Value: 10,000 Ohms (10kΩ), providing reliable resistance for current control or voltage regulation.

• Power Rating: 0.5 Watts (½ Watt), designed to safely dissipate up to 0.5 watts of power without overheating.

• Tolerance: Typically ±5%, meaning the actual resistance can vary by up to 5% from the nominal value.

• Type: Axial-leaded resistor, easy to integrate into through-hole circuits.

• Material: Manufactured from carbon film or metal oxide, which ensures durability and heat resistance.

• Operating Voltage: Safe for use in low-voltage circuits where power dissipation does not exceed the 0.5-watt limit.

• Temperature Range: Typically operates within -55°C to +155°C, depending on the material and construction.

Applications:

1. Voltage Divider Circuits: The 10k Ohm resistor is widely used in voltage divider circuits to step down a higher voltage to a desired level. This is useful for sensor interfaces, analog-to-digital conversion (ADC), and other applications requiring controlled voltage levels.

2. Biasing Circuits: It plays a key role in transistor biasing circuits, helping establish the correct operating conditions for BJT (Bipolar Junction Transistor) or FET (Field Effect Transistor) amplifiers.

3. Signal Conditioning: The 10k Ohm resistor is often used in signal conditioning circuits where impedance matching is required. It can help control the current flow and maintain signal integrity in analog systems.

4. Pull-up or Pull-down Resistor: It is commonly used as a pull-up or pull-down resistor in digital circuits, ensuring that floating input pins are correctly biased to a known high or low voltage level. This prevents erratic behavior or noise from affecting the circuit.

5. Current Limiting: The resistor is often used in current-limiting applications, such as LED circuits, where it ensures that the current through the component does not exceed safe limits, preventing overheating or damage.

6. Filter Networks: The 10k Ohm resistor can be used in filtering circuits, often in combination with capacitors or inductors, to create low-pass, high-pass, or band-pass filters in signal processing or audio circuits.

7. Impedance Matching: It is used for impedance matching in communication systems to ensure smooth signal transfer between different stages of the circuit without reflections or signal degradation.

8. Audio Applications: The 10k Ohm resistor is common in audio electronics, where it can be used for tone control, volume control, and filtering to adjust the frequency response or signal strength in audio circuits.

How It Works: The 10k Ohm 0.5 Watt Resistor works based on Ohm’s Law, which defines the relationship between voltage (V), current (I), and resistance (R):

$$V = I \times R$$

Where:

• V is the voltage across the resistor.

• I is the current flowing through the resistor.

• R is the resistance (in this case, 10,000 ohms).

When a current flows through the resistor, it causes a voltage drop across the resistor. The power dissipated by the resistor as heat can be calculated using the following formulas:

1. Power Dissipation:

   $$P = I^2 \times R$$

   or alternatively:

   $$P = \frac{V^2}{R}$$

For example, if the resistor is connected to a 12V supply:

• The current passing through the resistor would be:

  $$I = \frac{V}{R} = \frac{12V}{10,000Ω} = 0.0012A = 1.2mA$$

• The power dissipated by the resistor would be:

  $$P = V \times I = 12V \times 0.0012A = 0.0144W$$

This is well below the 0.5-watt rating, meaning the resistor would be safe to use in this scenario without overheating.

Product Limitations:

• Power Rating: The 0.5-watt power rating limits the resistor to low-power circuits. Using it in higher power circuits could lead to overheating and failure.

• Tolerance: With a ±5% tolerance, the actual resistance value could deviate slightly from the nominal value. For more precise applications, consider resistors with a tighter tolerance.

• Voltage Rating: Ensure the voltage across the resistor does not exceed the 0.5-watt power dissipation limit. High voltage or excessive current could lead to overheating or circuit failure.

Conclusion: The 10k Ohm 0.5 Watt Resistor is a versatile and reliable component for low-power electronic circuits. It is ideal for applications such as voltage dividers, current limiting, signal conditioning, biasing, and filtering. The 0.5-watt power rating ensures it is suited for low-power environments, but careful attention should be given to prevent exceeding the maximum power dissipation rating.

This resistor is widely used in digital, analog, and audio circuits, making it a fundamental component for prototyping, DIY projects, and commercial electronics. Whether you're designing circuits for sensors, audio systems, or logic control, the 10k Ohm 0.5 Watt Resistor provides reliable performance.
