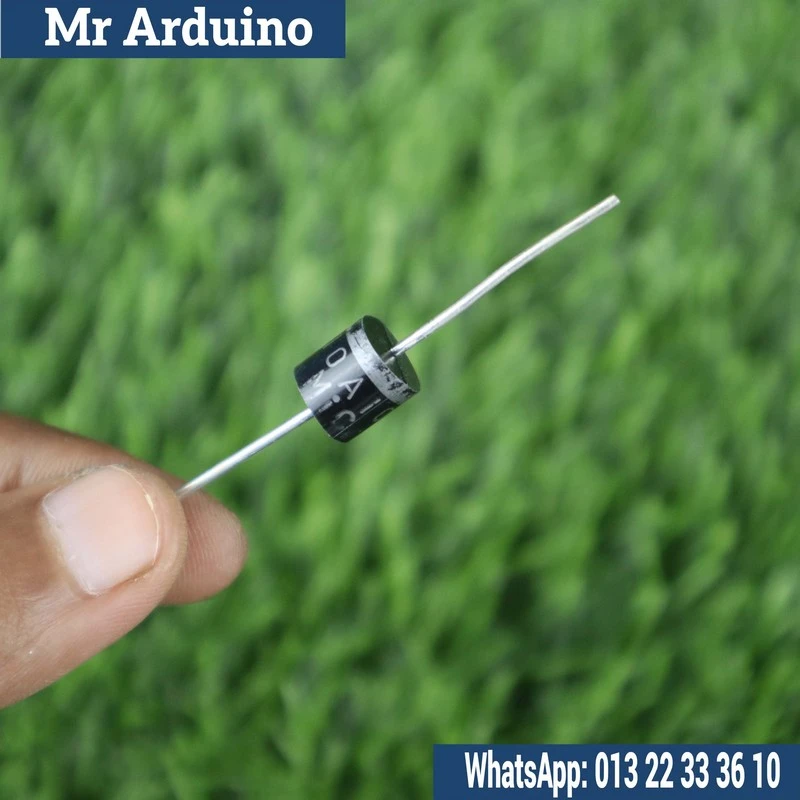

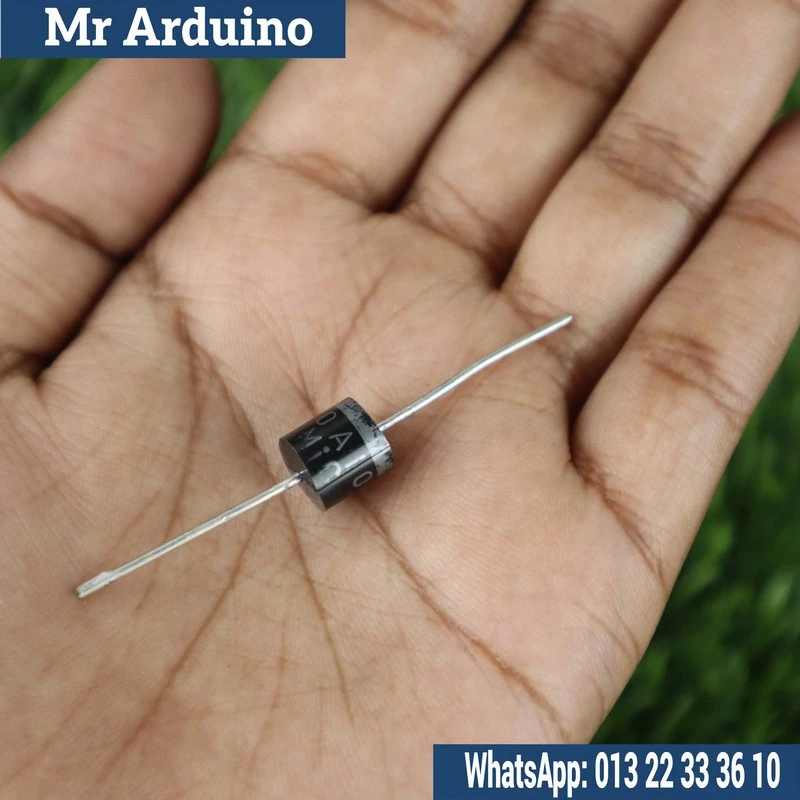

The 10A10 Diode is a high-current, 10A-rated rectifier diode designed for power applications where reliable and efficient current rectification is required. With a 10A current rating and a 1000V reverse voltage rating, this diode is commonly used in power supply circuits, motor drives, and high-voltage rectification applications. The 10A10 diode is built to handle higher currents, making it ideal for industrial, automotive, and other high-power applications.

Features:

• Current Rating: 10A, capable of handling up to 10 amps of current.

• Reverse Voltage: 1000V, meaning it can withstand reverse voltages up to 1000 volts.

• Rectifier Diode: Primarily used for rectifying AC to DC, allowing current to flow in one direction while blocking reverse current.

• Fast Switching: Features a fast switching time, making it suitable for applications with high-speed power changes.

• Durable Design: Designed for high-power applications, ensuring reliable operation even under demanding conditions.

• High Efficiency: Offers low forward voltage drop and low leakage current, resulting in efficient operation with minimal energy loss.

How It Works:

The 10A10 Diode works by allowing electrical current to flow in only one direction— from anode to cathode—while blocking current flow in the reverse direction. This unidirectional current flow is essential in rectifying AC signals into DC, or in protecting circuits by allowing only the intended current to pass. When a voltage is applied in the forward direction (anode to cathode), the diode conducts electricity. When the voltage is reversed (cathode to anode), the diode blocks current flow.

1. Forward Bias: When a positive voltage is applied to the anode (relative to the cathode), the diode becomes forward biased and allows current to flow.

2. Reverse Bias: When the voltage is reversed, the diode becomes reverse biased, blocking any current from flowing in the reverse direction.

3. Rectification: In power supplies, this property is used to convert alternating current (AC) to direct current (DC), a process known as rectification.

Product Limitations:

• Voltage Rating: The 1000V reverse voltage rating is the maximum the diode can handle in reverse without risking breakdown. Exceeding this voltage can cause permanent damage to the diode.

• Current Rating: The 10A current rating is the maximum continuous current the diode can handle. Higher currents could cause excessive heating and potentially destroy the diode.

• Power Dissipation: Although the 10A10 diode has high current and voltage capabilities, it still generates heat during operation. Adequate cooling or heat dissipation methods should be used in high-power applications to prevent thermal damage.

Applications:

• Power Rectifiers: Used in power supplies to rectify AC into DC, often found in switching power supplies, DC-DC converters, and AC-DC adapters.

• Motor Drives: Commonly used in motor drive circuits, where high currents are necessary to control motor direction and speed.

• Inverters: Useful in inverter circuits, which convert DC to AC in solar power systems and UPS (Uninterruptible Power Supply) systems.

• Reverse Voltage Protection: Protects sensitive components in electronic circuits by allowing current flow in one direction only, blocking reverse current that could cause damage.

• Automotive Applications: Found in automotive rectifier systems, where it helps convert AC alternator output into usable DC for charging batteries.

The 10A10 Diode is a crucial component in many high-power electronics and electrical systems. Its high current and reverse voltage capabilities make it perfect for applications such as power rectification, motor drives, and energy conversion in both industrial and automotive systems.
