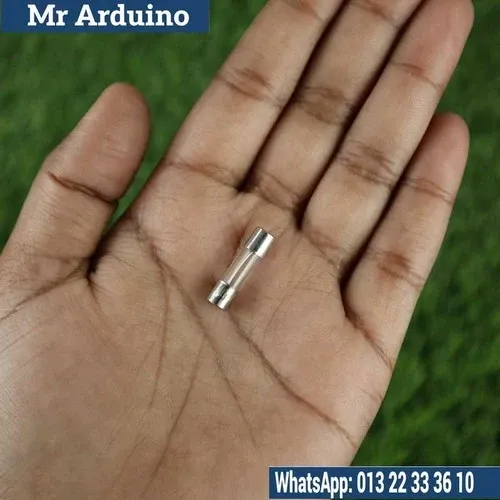

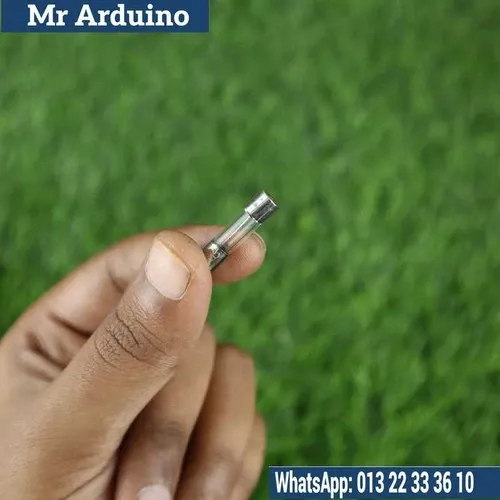

The 10A AC Glass Fuse is a protective device used in AC (Alternating Current) electrical circuits to safeguard against overcurrent conditions. When the current flowing through a circuit exceeds the 10-ampere (10A) rating of the fuse, the internal filament will melt, disconnecting the circuit and preventing further damage to the electrical components. This is crucial for preventing potential damage due to excessive current, such as from short circuits or overloads.

The glass body of the fuse allows for easy visual inspection to determine if the fuse has blown, offering quick maintenance or replacement. The 10A AC Glass Fuse is commonly used in household appliances, power supplies, and other AC-powered devices to protect sensitive components from current surges or prolonged overcurrent situations.

Key Features:

• Current Rating: Rated for 10A AC, designed to protect circuits that carry up to 10 amps of current in AC systems.

• Glass Body: Features a transparent glass casing, allowing for quick and easy inspection to see if the fuse has blown (i.e., the filament inside is broken or damaged).

• Fast Acting: Typically a fast-acting fuse, meaning it responds quickly to an overcurrent condition and disconnects the circuit to prevent damage.

• Easy to Replace: After the fuse blows, it can be easily replaced with another 10A AC glass fuse, making maintenance and repairs straightforward.

• Voltage Rating: Commonly rated for 250V AC, which is compatible with most household and industrial AC electrical systems.

• Compact Size: Designed for standard electrical fixtures, making it ideal for use in tight spaces or integrated into appliances and devices.

• Safe and Reliable: Provides an essential overcurrent protection mechanism that helps to avoid damage to components, overheating, or even fires caused by electrical overload.

Applications:

• Household Appliances: Used in everyday household electronics like microwaves, blenders, refrigerators, air conditioners, and vacuum cleaners to protect from electrical overloads and surges.

• Power Supplies: Commonly found in AC-DC power supplies for computers, servers, audio equipment, and other devices that require overcurrent protection.

• Lighting Systems: Used in lighting fixtures, ceiling fans, and industrial lights to prevent circuit damage due to high current.

• HVAC Systems: Installed in heating, ventilation, and air conditioning systems to protect components like compressors and motors from overcurrent damage.

• Motors & Industrial Equipment: Often used to protect the internal circuits of motors, transformers, control panels, and other industrial equipment from damage caused by overcurrent.

• Power Strips and Surge Protectors: Used in AC power strips or surge protectors to prevent overcurrent situations from affecting connected devices.

How It Works: The 10A AC Glass Fuse works by using an internal metal filament or wire that is designed to carry the rated current of 10A. When the current flowing through the fuse exceeds the 10-amp threshold, the filament inside the fuse heats up and melts, thus breaking the circuit and stopping the flow of electricity. This interruption helps to prevent overheating and protects downstream components from being exposed to excessive current.

• Normal Operation: Under normal conditions, the metal filament inside the fuse allows the current to pass through without issue, maintaining a stable electrical connection.

• Overcurrent Event: If an overcurrent situation arises (such as during a short circuit or power surge), the filament heats up and eventually melts, breaking the circuit and preventing damage.

• Visual Inspection: After the fuse blows, the glass casing allows you to visually inspect the fuse. If the filament is melted or broken, you can replace the fuse with a new one of the same rating.

Product Limitations:

• Current Rating: The 10A AC Glass Fuse is only suitable for circuits that require 10A of current. Using a fuse with a higher or lower current rating can result in improper protection, either blowing too early or failing to protect the circuit.

• Voltage Rating: The fuse is typically rated for 250V AC, which is appropriate for most standard electrical systems, but it’s essential to verify the voltage compatibility with your specific application.

• Single Use: Once the fuse blows due to an overcurrent event, it cannot be reused and must be replaced with a new one.

• Response Time: The fast-acting nature of this fuse means it reacts quickly to sudden overcurrents but may not be suitable for devices with a high inrush current, such as motors or devices that momentarily draw high current when powered on.

• Fuse Size and Compatibility: Ensure that the physical size of the fuse is appropriate for your device. Some equipment requires specific fuse dimensions for proper installation.

The 10A AC Glass Fuse is an essential safety component that provides reliable protection for your AC-powered systems. Its fast-acting design, easy replacement, and transparent casing make it a practical solution for protecting sensitive electronic components from damage caused by electrical surges, short circuits, or overloads.
