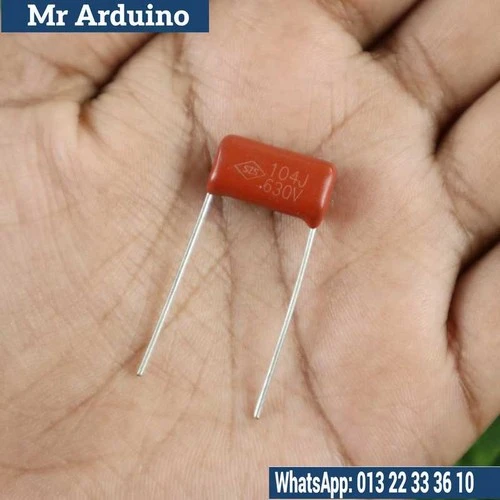

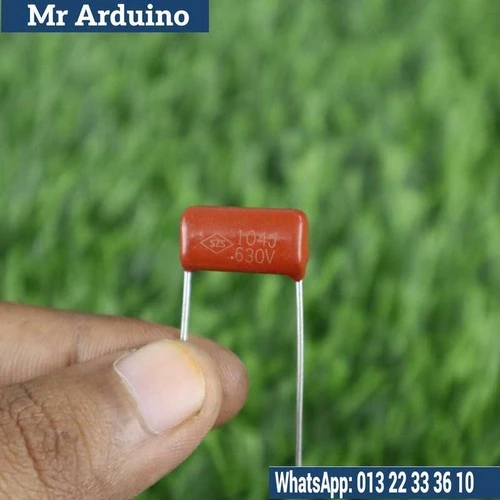

The 104J 630V Ceramic Capacitor is a high-voltage, ceramic dielectric capacitor designed for a wide range of applications requiring voltage suppression, filtering, and energy storage. The 104 part number indicates that the capacitor has a nominal capacitance of 100nF (100,000 pF), while the "J" signifies a tolerance of ±5%, meaning the actual capacitance can vary within a 5% range from the nominal value. The 630V voltage rating means this capacitor is capable of safely withstanding up to 630V without damage, making it suitable for medium to high-voltage circuits.

Ceramic capacitors like this one are known for their compact size, low cost, and wide availability, while also offering good performance in many general-purpose applications. This particular capacitor is commonly used in power supplies, motor circuits, AC systems, and other electrical and electronic circuits that require reliable voltage filtering and stabilization.

Key Features:

• Capacitance: 100nF (100,000 pF), which is ideal for smoothing, decoupling, and filtering applications in both AC and DC circuits.

• Voltage Rating: 630V, which provides protection against high-voltage spikes and surges in power circuits and systems operating under medium to high voltages.

• Tolerance: ±5% tolerance, indicating that the capacitance may vary by 5% from its nominal value, suitable for most general-purpose applications.

• Material: Ceramic dielectric, offering good stability, durability, and resilience in both low and high-temperature environments.

• Size and Packaging: Compact size, suitable for use in tight spaces on printed circuit boards (PCBs) and other electronic devices.

• Temperature Stability: Typically operates in the temperature range of -25°C to +85°C, depending on the material used, making it stable in most general environments.

Applications:

• Power Supplies: Often used in AC/DC power supplies, where it filters out voltage spikes and smooths DC output voltages. It helps stabilize the voltage and reduce ripple in power supplies.

• Motor Circuits: In AC motor drives, brushless motors, and inductive loads, this capacitor helps manage power fluctuations, reducing electrical noise and enhancing efficiency.

• AC Circuits: Common in high-voltage AC systems, such as lighting systems, HVAC equipment, and industrial motors, where it provides voltage suppression and filtering to avoid damage from surges or spikes.

• Switching Power Supplies: Used in switching regulators and inverters, where capacitors are needed to filter out high-frequency noise and smooth the output voltage.

• Signal Coupling and Decoupling: Used for signal coupling in circuits where AC signals are transferred between different stages, and also in decoupling applications to smooth power delivery and reduce noise.

• Lighting Circuits: Often used in lighting systems (such as fluorescent or LED drivers) to stabilize the power input and suppress electrical noise.

• Surge Protection: The 630V voltage rating makes it suitable for use in surge protection circuits, where it can clamp down transient voltage spikes, protecting sensitive components.

• Telecommunication Equipment: Used in telecom systems for voltage regulation, signal coupling, and noise filtering to ensure reliable operation.

How It Works: A ceramic capacitor, such as the 104J 630V, works by storing electrical energy in the form of an electrostatic field between its two conductive plates (electrodes) separated by the ceramic dielectric material. Here's a breakdown of how the capacitor operates:

1. Energy Storage: When a voltage is applied to the terminals of the capacitor, electrical charges accumulate on the conductive plates. The dielectric material between the plates prevents the charges from flowing directly between the plates but allows an electrostatic field to form, storing energy.

2. Voltage Smoothing and Filtering: In AC circuits, the capacitor can smooth out voltage fluctuations or ripples by absorbing sudden changes in voltage and releasing stored energy when necessary. This helps stabilize the voltage and reduce noise in the circuit.

3. Decoupling: In decoupling applications, the capacitor provides a low-impedance path to ground for high-frequency noise, effectively filtering out unwanted signals while allowing DC or low-frequency signals to pass through. This makes the capacitor essential for power supply decoupling, where it stabilizes the voltage supplied to sensitive components.

4. Surge Protection: When a voltage spike occurs (such as from a surge or transient event), the 630V rating of the capacitor ensures that the capacitor can absorb the spike without breaking down or causing damage. The capacitor essentially clamps the excess voltage, protecting the other components in the circuit.

5. Resistive and Reactive Behavior: The ceramic capacitor behaves as a reactive component in AC circuits, providing a phase shift between current and voltage due to its capacitive reactance. In DC circuits, it provides a stable voltage level with little resistance.

Product Limitations:

• Tolerance and Precision: The ±5% tolerance may not be suitable for applications that require highly precise capacitance values, such as in timing circuits or high-frequency applications.

• Size and Capacitance: While this capacitor is useful for a wide range of general-purpose applications, it may not be the best choice for circuits that require higher capacitance or very small sizes.

• Temperature Sensitivity: Ceramic capacitors can have a temperature coefficient that may affect their capacitance value as temperature fluctuates. For circuits operating in extreme temperatures, this may impact the performance of the capacitor.

• High-Frequency Performance: Like most ceramic capacitors, the 104J 630V may exhibit some performance degradation at high frequencies due to parasitic inductance and microphonic noise, limiting its use in high-frequency circuits such as RF (radio frequency) applications.

Conclusion: The 104J 630V Ceramic Capacitor is a reliable, medium-voltage capacitor ideal for filtering, decoupling, voltage suppression, and energy storage applications. With a 100nF capacitance and a 630V voltage rating, it is perfectly suited for a wide range of applications, including AC power supplies, motor circuits, signal coupling, and surge protection. Its compact size, affordable cost, and durability make it a great choice for both hobbyist projects and industrial applications.

While it offers good performance in most general-purpose applications, it may not be suitable for high-precision or high-frequency applications, where more specialized capacitors (like film capacitors or tantalum capacitors) might be needed.
