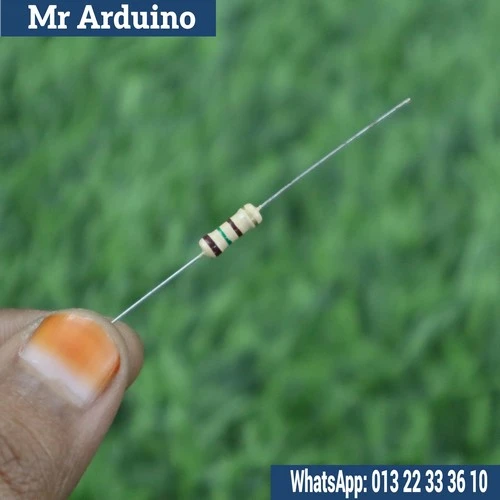

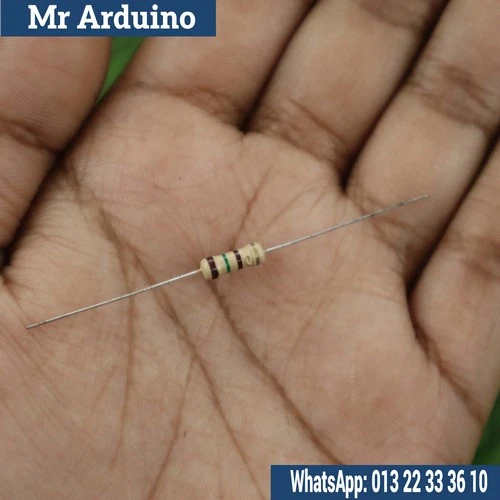

The 150 Ohm 0.5 Watt Resistor is a standard fixed resistor that provides a resistance value of 150 ohms and can safely dissipate up to 0.5 watts of power. Resistors are essential components used in electronic circuits to control the flow of electric current by providing a specific resistance. This particular resistor is commonly used in a variety of applications, including voltage dividers, current limiting, signal conditioning, and filter circuits.

The 0.5-watt rating indicates that the resistor can safely handle a maximum power dissipation of 0.5 watts without overheating. It is suitable for low to medium-power applications where the current passing through the resistor is relatively low. The resistor is compact, durable, and typically comes in a standard axial lead format, making it easy to incorporate into circuits for various electronics and DIY projects.

Key Features:

• Resistance Value: 150 ohms, which determines the amount of opposition to current flow in a circuit.
• Power Rating: 0.5 watt (500 milliwatts), indicating the maximum power the resistor can safely handle.
• Tolerance: Typically available with a tolerance of ±5% or ±1%, which indicates how accurately the actual resistance matches the stated value.
• Size: Compact and lightweight, typically housed in a standard axial lead form factor that fits easily into breadboards or printed circuit boards (PCBs).
• Durability: Made of high-quality materials to ensure long-lasting performance in various environments.
• Common Applications: Used in current-limiting circuits, voltage dividers, biasing circuits, filter circuits, and LED circuits, where precise resistance is required without the need for high power dissipation.

How It Works: Resistors like the 150 Ohm 0.5 Watt Resistor work by providing resistance to the flow of current in a circuit. When an electrical voltage is applied across the resistor, it restricts the current flow according to Ohm’s Law:

$$V = I \times R$$

Where:

• V is the voltage across the resistor (in volts).
• I is the current flowing through the resistor (in amperes).
• R is the resistance of the resistor (in ohms).

For a 150 ohm resistor, if a voltage of 9V is applied across it, the current flowing through it would be:

$$I = \frac{V}{R} = \frac{9V}{150\ \Omega} = 0.06A = 60mA$$

This resistor would limit the current to 60 milliamps. The 0.5-watt power rating ensures that it can safely dissipate the energy from the electrical current without overheating. If more than 0.5 watts of power is dissipated, the resistor could become too hot and potentially fail, so it’s important to keep the power dissipation within the rated limits.

Limitations:

• Power Dissipation: The 0.5-watt power rating limits the amount of current it can handle without overheating. If higher current is expected in your application, a higher-wattage resistor would be necessary.
• Tolerance: With a typical tolerance of ±5%, the actual resistance may vary slightly from the nominal value of 150 ohms, which may not be ideal for highly precise circuits where exact resistance is critical.
• Physical Size: This resistor is designed for low to medium-power circuits, and it may not be suitable for high-current applications or circuits that require significant power dissipation.

The 150 Ohm 0.5 Watt Resistor is an ideal component for many basic and intermediate electronic projects. It is commonly used for limiting current, voltage division, and protecting sensitive components like LEDs or transistors in low to medium power applications.
