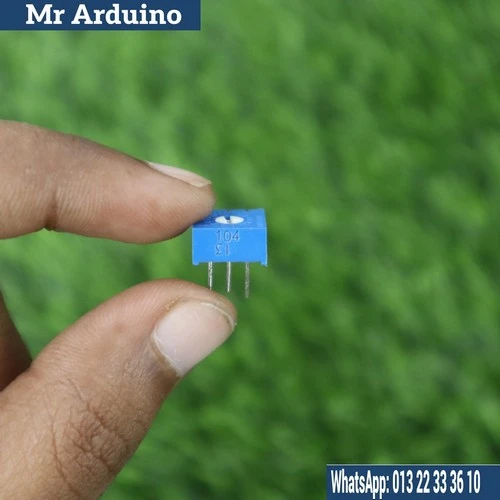

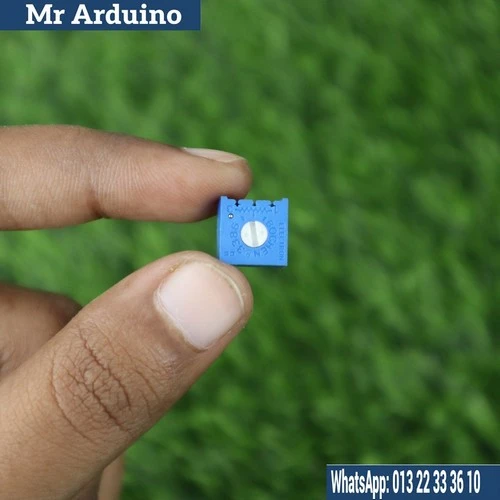

The 104 100K VR Trimmer Square is a precision variable resistor designed for fine-tuning and calibration in various electronic circuits. With a resistance value of 100k ohms, this trimmer potentiometer is perfect for applications that require accurate adjustments, such as audio devices, signal processing, and other electronic projects.

Key Features:

• Adjustable Resistance: The 100k ohm value allows for versatile applications, enabling users to make precise adjustments to current and voltage levels in circuits.
• Square Design: Its compact square form factor makes it easy to integrate into circuit boards, saving space while providing efficient performance.
• Durable Construction: Built from high-quality materials, this trimmer is designed for longevity, ensuring reliable performance through numerous adjustments.
• Easy Adjustment Mechanism: The screw-type adjustment allows for simple and accurate tuning, facilitating quick changes as needed.
• Wide Range of Applications: Ideal for various electronic applications, including audio and video equipment, RF circuits, and calibration tasks.

Working Principle

The 104 100K VR Trimmer operates based on the principle of variable resistance. Here’s how it functions:

1. Basic Structure: The trimmer consists of a resistive element and a movable wiper that changes resistance based on its position.
2. Resistance Adjustment: Turning the adjustment screw moves the wiper along the resistive path, altering the resistance between the terminals.
3. Circuit Integration: When included in a circuit, this adjustable resistor can control voltage, current, or signal levels, allowing for precise calibration and tuning.
4. Enhanced Functionality: This capability makes the trimmer an essential component for optimizing performance in a variety of electronic applications.

The 104 100K VR Trimmer Square is an excellent solution for those needing precise resistance adjustments, ensuring enhanced functionality and efficiency in their electronic projects.
