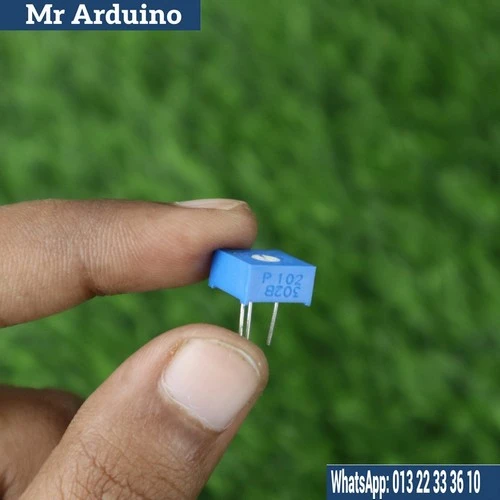

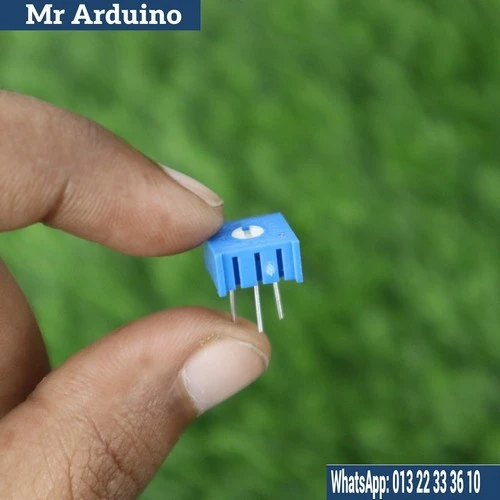

The 102 1K VR Trimmer Square is a high-precision variable resistor designed for fine-tuning and calibration in electronic circuits. With a resistance value of 1k ohms, this trimmer potentiometer is perfect for applications that require accurate adjustments, such as audio devices, signal processing, and various electronic projects.

Key Features:

• Adjustable Resistance: The 1k ohm rating allows for versatile applications, enabling precise control over current and voltage levels in circuits.
• Square Design: Its compact square shape facilitates easy integration into circuit boards, optimizing space while providing efficient performance.
• Durable Construction: Made from high-quality materials, this trimmer is designed to withstand frequent adjustments, ensuring long-lasting reliability.
• Easy Adjustment Mechanism: The screw-type adjustment allows for simple and accurate tuning, enabling quick changes to resistance levels as needed.
• Wide Application Range: Suitable for various electronic applications, including audio and video equipment, RF circuits, and calibration tasks.

Working Principle

The 102 1K VR Trimmer operates based on the principle of variable resistance. Here’s how it functions:

1. Basic Structure: The trimmer consists of a resistive element and a movable wiper that alters resistance based on its position.
2. Resistance Adjustment: By turning the adjustment screw, the wiper moves along the resistive path, changing the resistance between the terminals.
3. Circuit Integration: When included in a circuit, this adjustable resistor can control voltage, current, or signal levels, allowing for precise calibration and tuning.
4. Enhanced Functionality: This capability makes the trimmer essential for optimizing performance in a variety of electronic applications.

The 102 1K VR Trimmer Square is an excellent choice for those needing reliable and precise resistance adjustments in their electronic projects, enhancing the overall functionality and efficiency of circuits.
