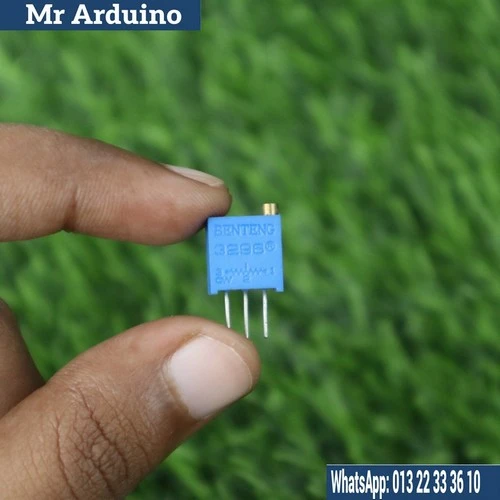

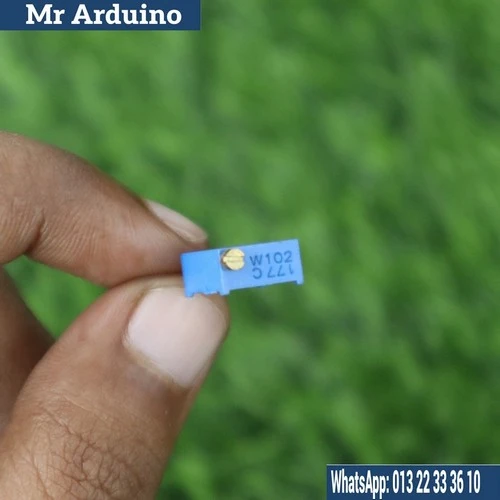

The 102 1K VR Trimmer Rectangular is a precision variable resistor designed for fine-tuning and calibration in various electronic circuits. With a resistance value of 1k ohms, this trimmer potentiometer is ideal for applications that require accurate adjustments, such as audio equipment, sensors, and other electronic devices.

Key Features:

• Adjustable Resistance: The 1k ohm rating allows for versatile applications, enabling precise control over current and voltage levels in circuits.
• Rectangular Design: Its compact rectangular shape allows for easy mounting on circuit boards, optimizing space while ensuring efficient performance.
• Durable Construction: Made from high-quality materials, this trimmer is built to withstand regular adjustments, ensuring long-lasting reliability.
• Easy Adjustment Mechanism: The screw-type adjustment facilitates smooth and accurate tuning, allowing for quick changes to resistance levels as needed.
• Wide Application Range: Suitable for various electronic applications, including audio and video equipment, RF circuits, and calibration tasks.

Working Principle

The 102 1K VR Trimmer operates based on the principle of variable resistance. Here’s how it functions:

1. Basic Structure: The trimmer consists of a resistive element and a movable wiper that changes resistance based on its position.
2. Resistance Adjustment: Turning the adjustment screw moves the wiper along the resistive path, altering the resistance between the terminals.
3. Circuit Integration: When incorporated into a circuit, this adjustable resistor can control voltage, current, or signal levels, enabling precise calibration and tuning.
4. Enhanced Functionality: This capability makes the trimmer essential for optimizing performance in a variety of electronic applications.

The 102 1K VR Trimmer Rectangular is an excellent choice for those needing reliable and precise resistance adjustments in their electronic projects, enhancing the overall functionality and efficiency of circuits.
