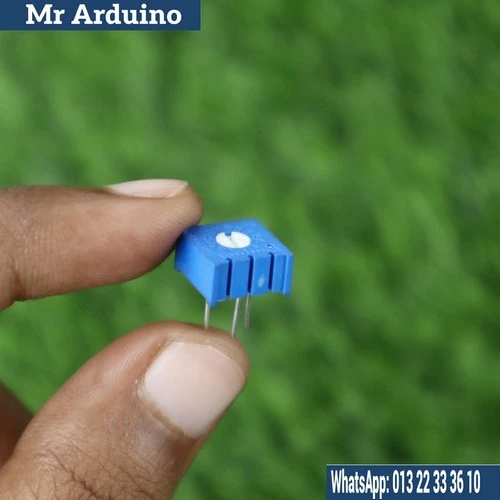

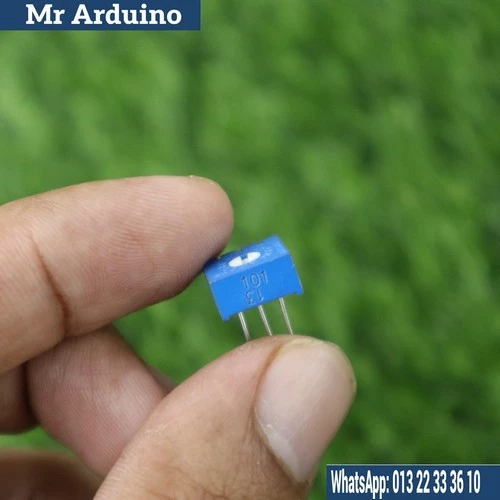

The 101 100 Ohm VR Trimmer Square is a high-quality variable resistor designed for precision adjustments in electronic circuits. This compact trimmer pot allows for fine-tuning resistance values, making it an essential component for engineers and hobbyists alike. With a resistance value of 100 ohms, it provides reliable performance in a variety of applications, from audio equipment to circuit calibration.

Featuring a durable square design, this trimmer is easy to handle and mount on circuit boards. Its robust construction ensures longevity, while the smooth adjustment mechanism allows for quick and accurate tuning. Ideal for prototyping, testing, and final assembly, the 101 100 Ohm VR Trimmer Square is perfect for anyone looking to optimize their electronic projects.

Working Principles

The 101 100 Ohm VR Trimmer Square operates on the principle of variable resistance. Here’s how it works:

1. Resistive Element: Inside the trimmer, a resistive material (usually carbon or conductive plastic) is used to create a variable resistance path.

2. Adjustment Mechanism: The trimmer is equipped with a screw or slider that, when turned, changes the position of a wiper that moves along the resistive element. This movement alters the length of the conductive path, allowing you to adjust the resistance.

3. Circuit Integration: When integrated into a circuit, the trimmer allows for fine-tuning of electrical parameters. By adjusting the resistance, users can calibrate voltages, control current, or set specific thresholds, depending on the application.

4. Feedback Loop: In many applications, the trimmer works within a feedback loop, helping to stabilize or modify the performance of the circuit it’s integrated into, leading to enhanced functionality and accuracy.

This combination of adjustability and reliability makes the 101 100 Ohm VR Trimmer Square an invaluable tool in any electronic designer’s toolkit.
