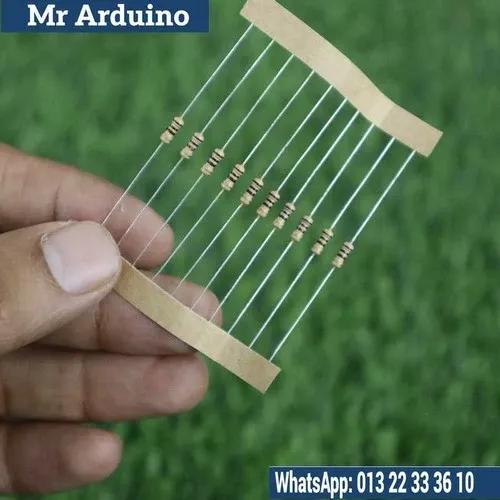

The 100 Ohm Resistor Quarter Watt 0.25W is a fixed resistor with a resistance value of 100 ohms and a power rating of 0.25 watts (quarter-watt). This resistor is ideal for use in low-power electronic circuits where current limiting, voltage division, or signal conditioning is required. With its moderate resistance, it helps control the current flow and ensures voltage stability within the circuit.

This 100 ohm resistor is commonly used in LED circuits, voltage dividers, and signal filtering applications. It’s a versatile component for DIY electronics, hobby projects, and prototyping where space and power dissipation are important considerations.

Key Features:

• Resistance Value: 100 ohms, suitable for controlling current, dividing voltages, and filtering signals in low-power circuits.
• Power Rating: 0.25W (quarter-watt), making it ideal for low-power applications where minimal heat generation is necessary.
• Tolerance: Typically ±5% tolerance, although precision versions with ±1% tolerance may be available for applications requiring more accurate resistance values.
• Compact Size: The quarter-watt form factor is perfect for breadboards, PCBs, and other space-constrained designs.
• Material: Constructed from carbon film or metal oxide, providing excellent stability, durability, and reliable performance for low-power applications.

How It Works: The 100 Ohm Resistor Quarter Watt 0.25W limits the current flow in a circuit according to Ohm’s Law (V = IR), where V is the voltage, I is the current, and R is the resistance. By adjusting the resistance, it controls the amount of current flowing through the circuit and protects other components from excessive current.

For instance, if a 5V supply is applied across the 100 ohm resistor, the current flowing through the resistor can be calculated as:

$$I = \frac{V}{R} = \frac{5V}{100Ω} = 0.05A = 50 \, mA$$

This means, with a 5V supply, the current flowing through the 100 ohm resistor will be approximately 50 milliamps (mA), which is a moderate current.

The power dissipated by the resistor can be calculated using the formula:

$$P = I^2 \times R$$

Substituting the current into the equation:

$$P = (0.05A)^2 \times 100Ω = 0.25W$$

This shows that the resistor will dissipate 0.25 watts of power, which is within its rated 0.25W power handling capacity, making it a safe and efficient choice for low-power applications.

Applications:

• Current Limiting: Used to limit current in LED circuits, ensuring that the LED is protected from excessive current which could cause damage.
• Voltage Dividers: Essential for creating specific voltage levels in voltage divider circuits, commonly used in sensor circuits, microcontroller interfacing, or analog-to-digital conversion (ADC).
• Signal Filtering: Often used in signal conditioning circuits where it can help filter or attenuate unwanted signals in audio systems or analog systems.
• Power Control: Can be used in power control circuits to stabilize the voltage and current that feeds sensitive electronic components.
• RC Circuits: Common in Resistor-Capacitor (RC) circuits, which are used for timing and filtering applications.
• Impedance Matching: Helps with impedance matching in audio circuits, ensuring that signals are transmitted with minimal loss.
• Test Equipment: Useful in test setups for simulating specific loads or measuring circuit behavior with specific resistance values.

Limitations:

• Low Power Rating: With a 0.25W power rating, this resistor is suitable only for low-power circuits. For higher-power applications, use a higher-power resistor (e.g., 0.5W or 1W).
• Current Handling: It is designed for moderate current applications (e.g., 50mA at 5V). If your application involves higher currents, a lower resistance value and a higher power-rated resistor may be required.
• Tolerance: The ±5% tolerance allows for some variation in the actual resistance value. For precise applications, consider using a precision resistor with ±1% tolerance.

The 100 Ohm Resistor Quarter Watt 0.25W is an essential component in low-power electronics and is well-suited for applications requiring current limiting, voltage division, or signal attenuation. Its small size, affordable price, and reliable performance make it ideal for hobbyists, DIY projects, and engineers working on prototypes or low-power designs.
