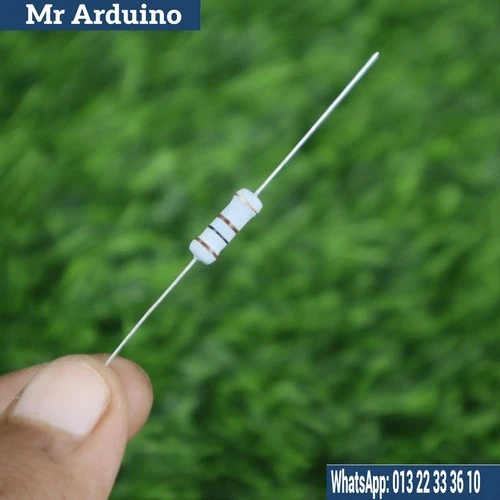

The 100 Ohm 1 Watt Resistor is a versatile and reliable component designed for a wide range of electronic applications. With a resistance value of 100 ohms and a power rating of 1 watt, this resistor is ideal for circuit applications that require precise current limiting and voltage division.

Constructed from high-quality materials, it ensures durability and stability under varying temperature conditions. This resistor is perfect for use in power supplies, amplifiers, and signal processing circuits, offering consistent performance and low thermal noise. Its compact size allows for easy integration into circuit boards, making it an essential component for both professional and DIY electronic projects.

Working Principles

The 100 Ohm 1 Watt Resistor operates on the fundamental principles of resistance in electrical circuits. Here’s how it functions:

1. Resistive Material: Made from resistive materials (such as carbon film or metal oxide), the resistor limits the flow of electrical current. The material’s inherent resistance determines the voltage drop across the component.

2. Ohm's Law: The behavior of the resistor is governed by Ohm's Law (V = IR), where:

   • V is the voltage across the resistor,
   • I is the current flowing through it,
   • R is the resistance (100 ohms in this case).

3. Power Dissipation: With a power rating of 1 watt, the resistor can safely dissipate heat generated by the current passing through it. If the power exceeds this rating, it may lead to overheating and potential failure.

4. Voltage Division: In circuit configurations, the resistor can be used to create voltage dividers, helping to lower voltage levels for specific components or to ensure proper biasing.

5. Current Limiting: It is also commonly used to limit current in LED circuits, protecting sensitive components from excessive current that could cause damage.

This combination of performance and reliability makes the 100 Ohm 1 Watt Resistor an essential component for any electronics enthusiast or professional.
