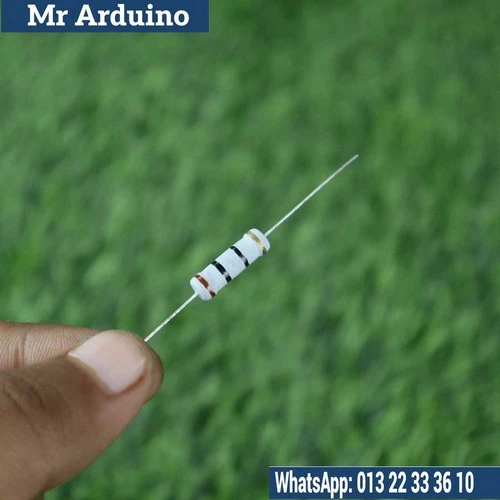

The 10 Ohm 2 Watt Resistor is a low-resistance, high-power resistor designed for applications that require effective current limiting and power dissipation in circuits with moderate power levels. With a resistance of 10 Ohms and a power rating of 2 Watts, this resistor is ideal for power supply circuits, current-limiting applications, and situations where significant current needs to be controlled safely without causing excessive heat buildup. It is commonly used in high-current circuits such as motor drives, amplifiers, and other power-related applications.

How it Works: The 10 Ohm 2 Watt Resistor works by restricting the flow of electrical current, creating a voltage drop according to Ohm’s Law (V = I * R). With a 10 Ohm resistance value, it allows higher currents to pass through the circuit, making it suitable for applications where higher current handling is required. The 2-watt power rating allows this resistor to safely dissipate up to 2 watts of power as heat, making it a great choice for medium-power applications without the risk of overheating.

Specifications:

• Resistance: 10 Ohms

• Power Rating: 2 Watts

• Tolerance: Typically ±5% (check product for exact tolerance)

• Material: Carbon Film or Metal Film (depending on the variant)

• Size: Standard 2-watt size for moderate to high-power applications

Applications:

• Current Limiting: Used in series with high-power components like LEDs, transistors, or motors to limit the current and prevent damage from excessive current flow.

• Power Supply Circuits: Ideal for use in power supply circuits, providing current regulation to ensure stable performance of the system.

• Voltage Drop: Can be used in high-current circuits to introduce a specific voltage drop and control the current in the system.

• Signal Conditioning: Employed in some analog or audio circuits where current control is essential while dissipating moderate amounts of power.

• Motor Drives and Amplifiers: Perfect for motor drive circuits or audio amplifiers where high currents are involved and where power dissipation must be controlled.

Limitations:

• Power Rating: The 2-watt power rating must not be exceeded. Overheating or resistor failure may occur if this rating is surpassed.

• Tolerance: With a ±5% tolerance, the actual resistance may vary slightly from the nominal value of 10 Ohms, which can impact precision in circuits requiring exact resistance values.

The 10 Ohm 2 Watt Resistor is perfect for current limiting, power supply regulation, and medium to high-power applications where precise control over current and safe power dissipation are required.
