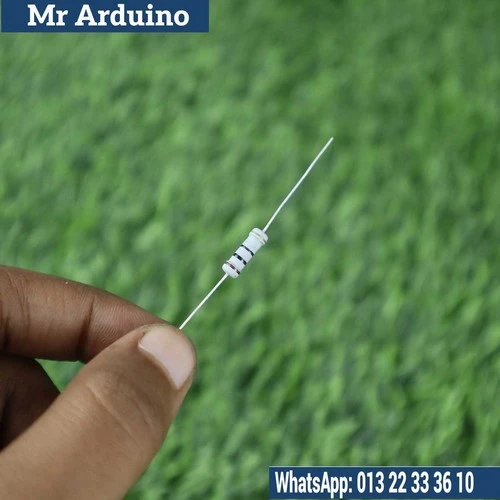

The 10 Ohm 1 Watt Resistor is a compact yet highly efficient electronic component that provides reliable resistance in various circuits. With a resistance value of 10 Ohms and a power rating of 1 Watt, this resistor is ideal for low to medium-power applications where current needs to be controlled or limited. It's perfect for protecting sensitive components, reducing voltage, and ensuring proper current distribution in your electronic projects.

How it Works: The 10 Ohm 1 Watt Resistor works by restricting the flow of electric current through a circuit, creating a voltage drop based on Ohm's Law (V = I * R). This resistor can safely handle up to 1 watt of power dissipation as heat. When current passes through the resistor, the electrical energy is converted into heat, and this heat must not exceed the resistor's power rating to avoid damage.

Specifications:

• Resistance: 10 Ohms

• Power Rating: 1 Watt

• Tolerance: Typically ±5% (check product specifics)

• Material: Carbon Film or Metal Film (varies by model)

• Size: Standard 1-watt size for general applications

Applications:

• Current Limiting: Often used in series with LEDs, transistors, and other components to limit the current and prevent overheating or damage.

• Voltage Division: Commonly used in voltage divider circuits to generate different voltage levels.

• Signal Filtering: Can be part of low-pass or high-pass filters in analog circuits to smooth or shape electrical signals.

• Heat Dissipation: Suitable for applications requiring some degree of heat dissipation, like power supplies or small heating elements.

• Basic Circuit Protection: Essential in protecting sensitive components by controlling current flow.

Limitations:

• Power Handling: Rated for 1-watt dissipation; exceeding this rating could cause overheating, component failure, or thermal damage.

• Tolerance Impact: With a typical ±5% tolerance, the actual resistance may vary slightly, which may influence circuits where precision is critical.

This resistor is an excellent choice for low to medium power applications, DIY electronics, and hobbyist projects that require efficient current regulation.
