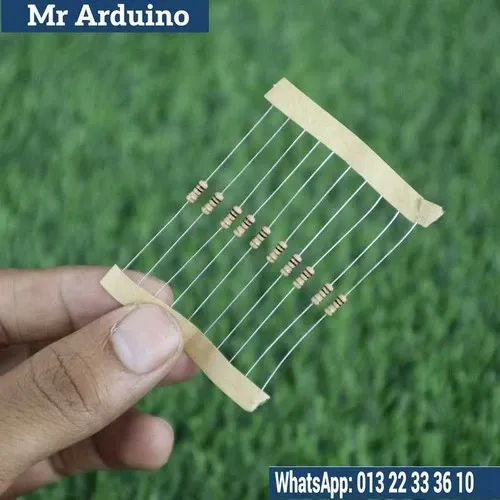

The 1 Ohm Resistor Quarter Watt 0.25W is a low-value resistor with a resistance of 1 ohm and a power rating of 0.25 watts (quarter-watt). This resistor is commonly used in applications where current limiting, voltage drop, or current sensing is required in low-power circuits. The 1 ohm resistance value is suitable for situations where small amounts of resistance are needed to control or measure current flow without introducing significant voltage drops. The 0.25W power rating ensures that the resistor can safely dissipate heat generated from the current flowing through it without causing damage to the component.

The 1-ohm resistance makes it particularly effective for current sensing applications in circuits where accurate measurement of high current flows is not as critical. It is widely used in low-power systems, sensor circuits, audio systems, and battery-powered projects.

Key Features:

• Resistance Value: 1 ohm, ideal for low-resistance applications such as current sensing, current limiting, and voltage drop across a circuit.
• Power Rating: 0.25W (quarter-watt), suitable for low-power applications, ensuring safe power dissipation in small circuits.
• Tolerance: Typically available in ±5% tolerance (standard) or ±1% tolerance (high precision), depending on the required accuracy.
• Compact Size: Being a quarter-watt resistor, it is compact and fits easily into tight spaces on circuit boards, making it ideal for small, compact designs.
• Material: Typically made from carbon film or metal oxide, offering reliable performance and consistent resistance over time.

How It Works: A 1 Ohm Resistor Quarter Watt 0.25W works by limiting the flow of electrical current through a circuit. According to Ohm’s Law (V = IR), the voltage drop (V) across this resistor is determined by the current (I) passing through and the resistance (R) of the resistor.

For instance, if a 5V voltage is applied across the 1-ohm resistor, the current can be calculated as:

$$I = \frac{V}{R} = \frac{5V}{1Ω} = 5A$$

This calculation shows that the 1-ohm resistor will allow 5A of current to flow if 5V is applied. The resistor helps in regulating and controlling the current, ensuring that the circuit does not draw excessive current that could damage sensitive components.

The 0.25W power rating ensures that the resistor can safely dissipate heat without exceeding its thermal limits. If the power dissipated exceeds the 0.25W, the resistor could overheat and potentially fail.

Applications:

• Current Sensing: The 1-ohm resistor can be used as a shunt resistor in current-sensing circuits. The small voltage drop across the resistor can be measured and used to calculate the current flowing through the circuit (using Ohm’s Law).
• Current Limiting: This resistor can be used to limit current in various low-power applications, such as LED protection, battery chargers, or sensor circuits, where excessive current could damage components.
• Voltage Drop: It is ideal for creating small voltage drops in circuits, for example, in voltage dividers and other low-power applications where precise voltage regulation is needed.
• Power Supply Systems: Often used in power supply circuits to regulate the current flow and provide stable voltage levels to downstream components.
• Audio Equipment: In audio circuits, it can help control or attenuate signals, ensuring appropriate current flow and avoiding overload in sensitive components like speakers or amplifiers.
• Overload Protection: Used to protect circuits by limiting current in case of a short-circuit or overload, ensuring that sensitive components are not damaged.
• Battery-Powered Devices: It is frequently used in battery-powered applications, where it helps with current regulation, protection, and efficiency.

Limitations:

• Low Power Rating: The 0.25W power rating restricts this resistor to low-power circuits only. It cannot handle high currents or voltages that require higher power dissipation. Using this resistor in circuits that demand more power can lead to overheating or damage.
• Current Handling: While this resistor is ideal for low-power applications, it may not be suitable for circuits where higher resistance or higher current flow is necessary.
• Tolerance: The ±5% tolerance means that the actual resistance could vary slightly, which might affect accuracy in high-precision circuits. For more critical applications, resistors with tighter tolerance (±1%) may be needed.

The 1 Ohm Resistor Quarter Watt 0.25W is a versatile and essential component for low-power circuits, ideal for current sensing, current limiting, and voltage regulation. It is commonly used in DIY electronics projects, battery-powered systems, and audio applications. Whether you're building a voltage divider, current-limiting circuit, or protecting your components from excessive current, this resistor offers a reliable and cost-effective solution.
