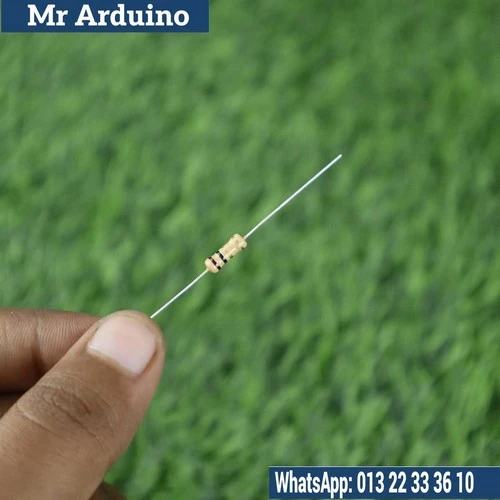

The 1 Ohm 0.5 Watt Resistor is a fixed-value resistor with a resistance of 1 ohm (1Ω) and a power rating of 0.5 watts (½ watt). This resistor is designed to provide very low resistance and is typically used in current sensing, current limiting, or voltage drop applications. The 1Ω resistance makes it suitable for applications where precise control over current is necessary, such as power supply circuits, battery management systems, or high current circuits that require low resistance.

Made from high-quality materials like carbon film or metal oxide, this resistor is built to withstand heat dissipation and perform reliably in low to medium-power applications. The 0.5-watt power rating ensures it can be used safely in circuits where power dissipation stays within this limit.

Key Features:

• Resistance Value: 1 Ohm (1Ω), ideal for low-resistance applications such as current sensing and voltage drop regulation.

• Power Rating: 0.5 Watts (½ Watt), designed to safely dissipate up to 0.5 watts of power without overheating.

• Tolerance: Typically ±5%, meaning the actual resistance can vary by up to 5% from the nominal value.

• Type: Axial-leaded resistor, making it easy to integrate into through-hole circuits.

• Material: Constructed from carbon film or metal oxide, offering high heat resistance and long-lasting performance.

• Operating Voltage: Suitable for use in low to medium voltage circuits where the power dissipation does not exceed 0.5-watt.

• Temperature Range: Typically operates within -55°C to +155°C, depending on the material and construction.

Applications:

1. Current Sensing: The 1 Ohm resistor is often used in current sensing applications to measure current flow in circuits. When current passes through this low-resistance resistor, a small voltage drop develops across it, which can be measured to calculate the current flowing through the circuit.

2. Power Supply Circuits: In power supply circuits, this resistor can be used to limit current and ensure safe operation of sensitive components like capacitors, ICs, and transistors by preventing excessive current flow.

3. Battery Management Systems: It is commonly used in battery management systems to monitor and manage the current drawn from or supplied to a battery. A 1 Ohm resistor can help calculate and regulate the charging or discharging current to ensure the battery operates safely.

4. Voltage Drop Regulation: This resistor can be used in circuits that need to create a small voltage drop to control current flow. It is often used in voltage regulation circuits where maintaining a stable current is crucial.

5. Current Limiting: The 1 Ohm resistor is ideal for current-limiting applications, such as protecting LEDs or semiconductor devices from excess current that could cause damage. It ensures that the current flowing through the component is limited to a safe value.

6. Pulse Circuits: Due to its low resistance, the 1 Ohm resistor can be used in circuits dealing with pulses or short bursts of current, where precise current control is necessary to avoid overload or damage to components.

7. High Power Applications: The 1 Ohm resistor can be used in high-power circuits, where it is crucial to manage high current levels while maintaining safe operating conditions.

How It Works: The 1 Ohm 0.5 Watt Resistor works based on Ohm’s Law, which describes the relationship between voltage (V), current (I), and resistance (R):

$$V = I \times R$$

Where:

• V is the voltage across the resistor.

• I is the current flowing through the resistor.

• R is the resistance (in this case, 1 ohm).

When current flows through the 1 Ohm resistor, a small voltage drop occurs across it. The power dissipated by the resistor can be calculated using the formula:

$$P = I^2 \times R = \frac{V^2}{R}$$

For example, if the resistor is connected to a 12V supply:

• The current flowing through the resistor is:

  $$I = \frac{V}{R} = \frac{12V}{1Ω} = 12A$$

• The power dissipated by the resistor would be:

  $$P = V \times I = 12V \times 12A = 144W$$

This is far above the 0.5-watt rating, indicating that the resistor would overheat and potentially fail in this case. However, if the resistor is used in circuits with much lower voltages, such as 0.5V to 1V, it will be within the 0.5-watt dissipation limit.

Product Limitations:

• Power Rating: The 0.5-watt power rating limits this resistor to low-power circuits. Using it in higher-power circuits where power dissipation exceeds 0.5 watts will result in overheating and possible failure.

• Tolerance: With a ±5% tolerance, the actual resistance could vary slightly from the nominal value. For applications requiring higher precision, consider resistors with a tighter tolerance, such as ±1%.

• Voltage Rating: Ensure that the voltage applied to the resistor does not cause the power dissipation to exceed 0.5 watts. Exceeding this limit can lead to resistor failure due to overheating.

Conclusion: The 1 Ohm 0.5 Watt Resistor is a specialized component used primarily for current sensing, current limiting, and voltage drop regulation in low-power circuits. Its low 1 ohm resistance makes it ideal for applications where precise control of current is needed, such as in battery management systems, power supply circuits, and high-current circuits.

With a 0.5-watt power rating, this resistor can be used safely in low-power circuits. However, it should not be used in high-power applications where dissipation exceeds the rating. It is a crucial component for many electronic designs and is widely used in analog, digital, and signal processing systems.
