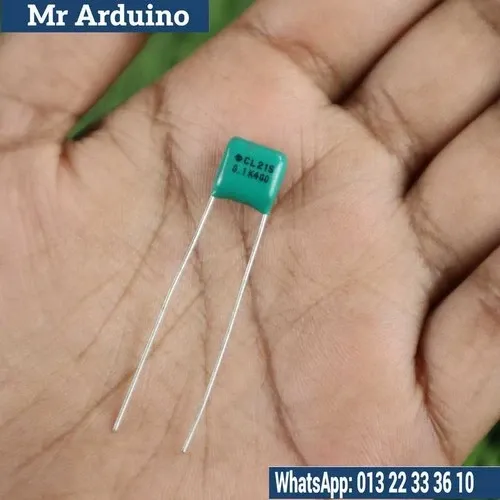

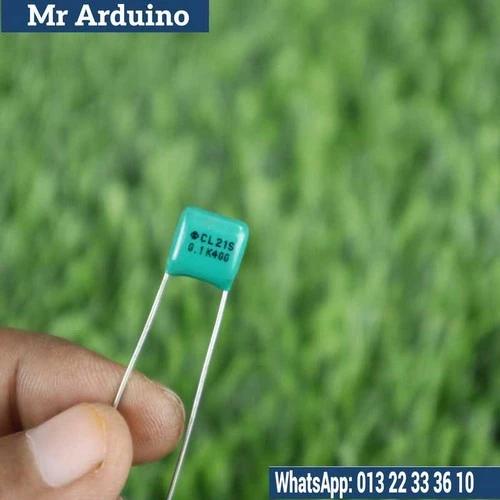

The 0.1k 400V Polyester Film Capacitor is a high-performance capacitor designed for use in circuits requiring moderate capacitance and high voltage handling. With a capacitance of 0.1µF (100nF) and a 400V voltage rating, this capacitor is ideal for applications where stable performance and reliable operation under higher voltage conditions are required. Made from polyester film, this capacitor offers excellent insulation and durability, making it a cost-effective solution for a wide range of electronic and electrical circuits.

This polyester film capacitor is commonly used in filtering, decoupling, and bypassing applications in power supplies, signal processing circuits, and other electronic devices where voltage stability is critical. The 400V rating ensures that this capacitor can handle higher voltage fluctuations, providing a high level of protection for sensitive components.

Key Features:

• Capacitance: 0.1µF (100nF), ideal for general-purpose applications

• Voltage Rating: 400V, capable of handling higher voltage levels, providing added protection

• Tolerance: Typically ±5%, suitable for applications where slight variations in capacitance are acceptable

• Dielectric Material: Polyester film, offering excellent electrical insulation, reliability, and durability

• Package Type: Available in Through-Hole or Axial Lead packages (depending on the model)

• Temperature Stability: Suitable for operation in standard temperature ranges for most electronic circuits

• Low ESR (Equivalent Series Resistance): Ensures efficient operation in high-frequency applications

Applications:

• Power Supply Filtering: Helps reduce voltage fluctuations and smooths out ripple in DC power supplies, providing stable and clean power to other components.

• Decoupling and Bypass: Used in decoupling and bypassing applications to filter high-frequency noise and stabilize voltage in sensitive circuits.

• Signal Coupling: Can be used in audio and RF circuits to pass AC signals while blocking DC components, maintaining the integrity of the signal.

• Timing Circuits: Ideal for use in RC timing circuits where stable capacitance is needed for generating oscillations or delays.

• Pulse Circuits: Can be used in circuits that require handling of higher voltage pulses, such as pulse width modulation (PWM) circuits.

• General-Purpose Filtering: Suitable for a wide range of filtering applications in both power and signal circuits, including in home electronics, power amplifiers, and industrial devices.

How It Works: The 0.1k 400V Polyester Film Capacitor works by storing electrical energy in an electric field between its two conductive plates, which are separated by a polyester film dielectric. The capacitance value (0.1µF) determines the amount of charge the capacitor can store and release in the circuit, which is essential for smoothing voltage, filtering noise, or coupling signals.

In power supply circuits, it helps smooth out voltage by filtering out high-frequency noise and ripples, ensuring that sensitive components receive clean, stable DC power. In signal circuits, it allows AC signals to pass through while blocking DC signals, which is important for applications like audio equipment, radio-frequency (RF) circuits, and signal conditioning.

The 400V rating ensures that the capacitor can withstand high voltage surges without breaking down, making it ideal for circuits where voltage fluctuations or transient spikes may occur. Its polyester film dielectric offers good stability and performance across a wide range of operating conditions.

Product Limitations:

• Voltage Rating: While the 400V rating provides good protection for high-voltage circuits, it's important not to exceed this rating to prevent potential breakdown of the dielectric and failure of the capacitor.

• Tolerance: The ±5% tolerance may not be suitable for precision applications that require extremely tight capacitance control. In such cases, capacitors with a lower tolerance may be needed.

• Temperature Sensitivity: Polyester film capacitors generally have stable performance, but they may experience slight changes in capacitance over a wide range of temperatures, which may affect their performance in high-precision circuits.

• Size: With a capacitance of 0.1µF, it is not suitable for applications requiring very high or very low capacitance values for specific filtering or tuning needs.

The 0.1k 400V Polyester Film Capacitor is a versatile, cost-effective solution for applications requiring high-voltage handling, stable capacitance, and reliability. It is well-suited for use in power electronics, signal processing, and general-purpose filtering tasks.i
