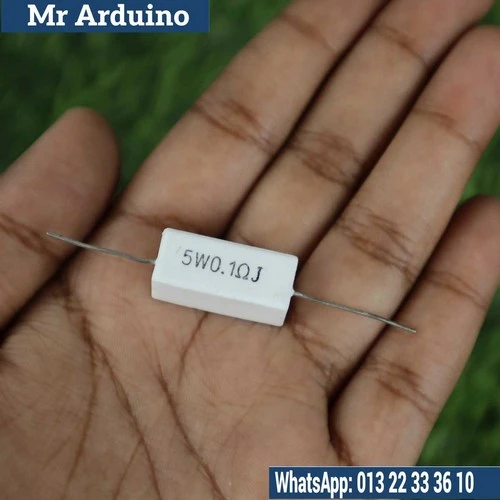

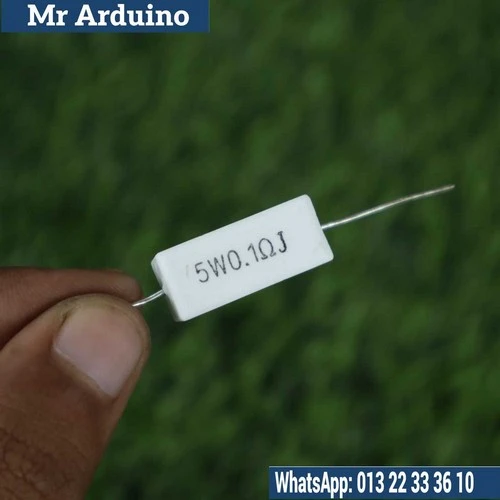

The 0.1 Ohm 5 Watt Resistor is a low-resistance, high-power resistor designed for high-current applications where efficient power dissipation and current regulation are essential. With a resistance value of 0.1 Ohms and a power rating of 5 Watts, this resistor is ideal for use in power management circuits, shunt resistors for current sensing, and applications where large amounts of current need to be monitored or controlled without causing excessive heat buildup. It is commonly used in power supplies, battery management systems, and motor control circuits.

How it Works: The 0.1 Ohm 5 Watt Resistor functions by resisting the flow of electrical current, causing a voltage drop according to Ohm’s Law (V = I * R). With a 0.1 Ohm resistance value, this resistor is designed to allow significant current flow while creating a measurable voltage drop. This is useful for applications like current sensing or current limiting. The 5-watt power rating ensures that the resistor can safely dissipate up to 5 watts of electrical energy as heat, making it suitable for high-current applications without overheating or failure.

Specifications:

• Resistance: 0.1 Ohms

• Power Rating: 5 Watts

• Tolerance: Typically ±5% (check product for exact tolerance)

• Material: Wire-wound or metal oxide (depending on the variant)

• Size: Standard 5-watt size for high-power applications

Applications:

• Current Sensing: Often used as a shunt resistor for current sensing in power supplies, battery chargers, and motor control circuits, where the voltage drop across the resistor is measured to determine the amount of current flowing.

• Power Supply Circuits: Employed in power supply circuits to provide accurate current regulation while handling higher current levels.

• Motor Control: Ideal for motor control systems, where current needs to be monitored or limited to prevent motor damage due to excessive current flow.

• Battery Management Systems: Used in battery charging and management circuits to measure and control current flow, ensuring efficient and safe charging/discharging cycles.

• Current Limiting: Can be used in series with components like LEDs or transistors to limit the current flowing through the circuit.

Limitations:

• Power Rating: The 5-watt power rating should not be exceeded. Exceeding this rating could result in overheating, resistor failure, or damage to surrounding components.

• Tolerance: With a ±5% tolerance, the actual resistance may vary slightly from the nominal 0.1 Ohms, which may affect precision in circuits where exact resistance values are critical.

The 0.1 Ohm 5 Watt Resistor is perfect for current sensing, power supply regulation, and high-current applications where stable performance and efficient power dissipation are crucial.
