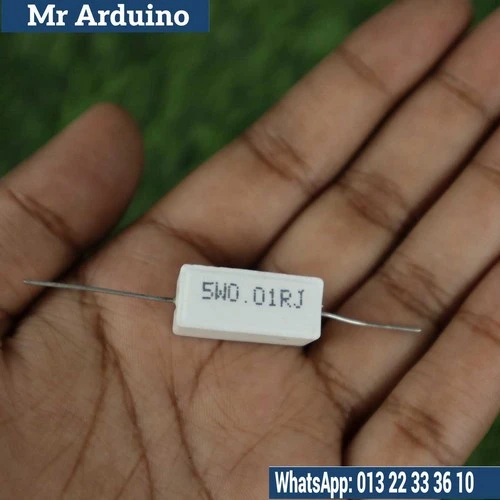

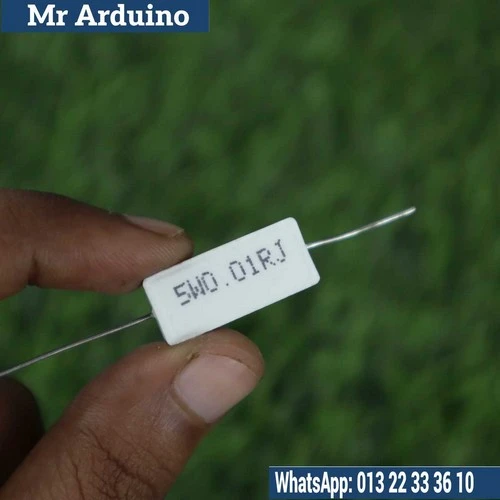

The 0.01 Ohm 5 Watt Resistor is an ultra-low resistance, high-power resistor designed for applications that require precise current measurement and power dissipation. With a resistance of only 0.01 Ohms and a power rating of 5 Watts, this resistor is primarily used in high-current sensing and power monitoring applications. It is commonly used in power supplies, battery management systems, and electric motor circuits to measure and control large currents efficiently without introducing significant resistance that could affect the overall circuit performance.

How it Works: The 0.01 Ohm 5 Watt Resistor operates by creating a very small voltage drop across it when a current flows through it, as per Ohm’s Law (V = I * R). Despite its low resistance of 0.01 Ohms, this resistor allows high amounts of current to pass through, making it suitable for applications where precise current sensing is needed. The 5-watt power rating allows the resistor to safely dissipate up to 5 watts of electrical power as heat, making it ideal for applications that require monitoring large current flows without risking overheating or failure.

Specifications:

• Resistance: 0.01 Ohms

• Power Rating: 5 Watts

• Tolerance: Typically ±5% (check product for exact tolerance)

• Material: Wire-wound or metal oxide (depending on the variant)

• Size: Standard 5-watt size for high-power applications

Applications:

• Current Sensing: Often used as a shunt resistor in high-current applications for precise current measurement, especially in power supplies, battery charging circuits, and motor control systems. The small voltage drop across the resistor can be measured to calculate the current flowing through the circuit.

• Power Monitoring: Ideal for use in power management systems, where accurate current monitoring is essential to prevent overcurrent conditions and ensure proper energy efficiency.

• Battery Management Systems (BMS): Commonly employed in battery management systems to monitor charging and discharging currents, ensuring safe and efficient operation.

• Electric Motor Control: Used in electric motor control circuits for current monitoring, ensuring that the motor operates within safe limits and avoiding damage from excessive current.

• Current Limiting: Can be used in series with high-current components to limit or measure the current flowing through the circuit without significantly affecting the overall resistance of the system.

Limitations:

• Power Rating: The 5-watt power rating should not be exceeded. Overloading the resistor can lead to excessive heating, potential failure of the resistor, and damage to other components in the circuit.

• Tolerance: With a ±5% tolerance, the actual resistance may slightly vary from the nominal 0.01 Ohms, which could affect the precision in circuits that require exact current measurement.

The 0.01 Ohm 5 Watt Resistor is ideal for current sensing, power monitoring, and high-current applications where low resistance and efficient power dissipation are essential.
