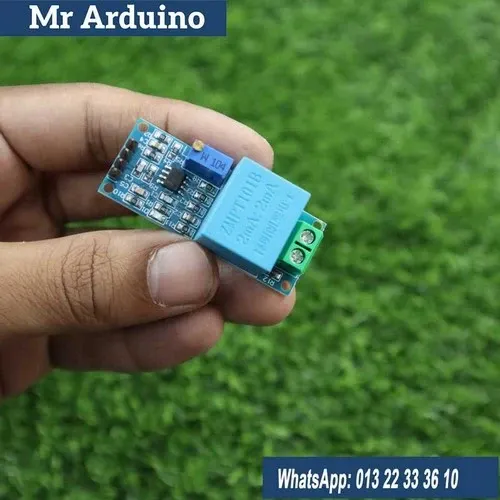

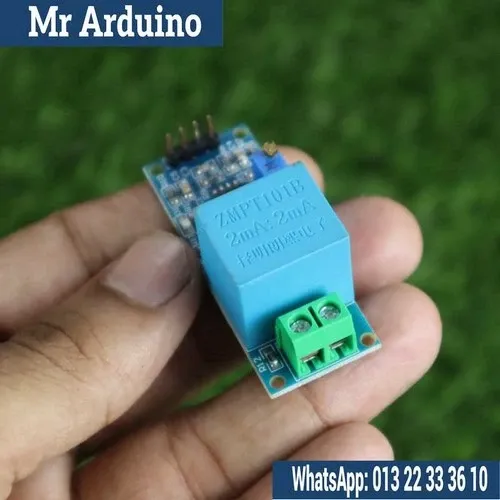

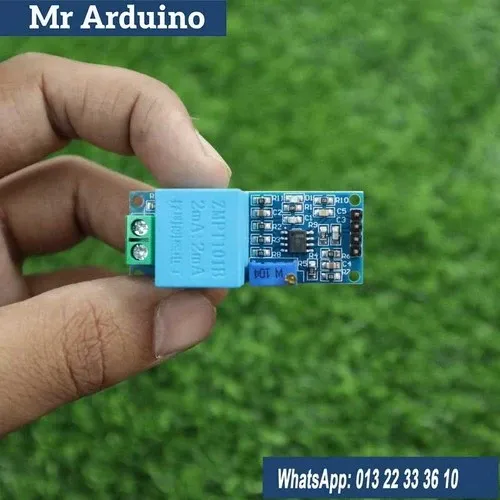

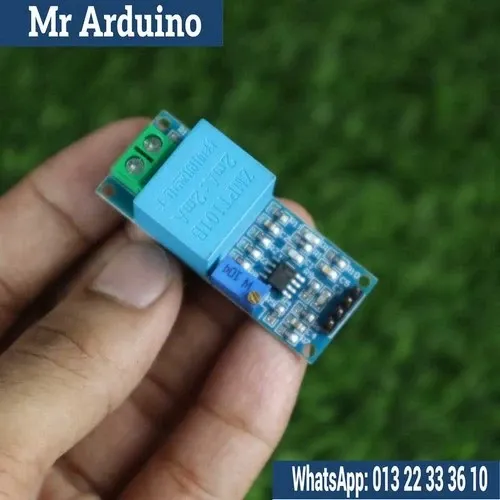

Active Single Phase Voltage Transformer ZMPT101B

2 Orders 0 Wish listed

৳230

Qty

Total price:

৳230

Overview
Reviews

Detail Description

Active Single Phase Voltage Transformer ZMPT101B is a high-accuracy AC voltage measurement module designed to safely sense and measure single-phase AC voltage. It is based on the ZMPT101B precision voltage transformer, which provides excellent linearity, isolation, and stability for voltage detection applications.

The module includes onboard signal conditioning circuitry and a multi-turn potentiometer for fine calibration, allowing accurate voltage scaling according to application requirements. It outputs an analog signal proportional to the input AC voltage, making it easy to interface with microcontrollers such as Arduino, ESP8266, ESP32, and other ADC-based systems.

This module is commonly used in AC voltage monitoring, smart energy meters, power measurement systems, home automation, and protection circuits. Due to its electrical isolation, it ensures safe measurement of high AC voltages while protecting low-voltage control electronics. It is suitable for students, hobbyists, and professionals working on power electronics and energy monitoring projects.

🔹 Key Technical Information (Important)

Sensor Type: AC Voltage Transformer Module
Transformer Model: ZMPT101B
Phase Type: Single Phase
Input Voltage: AC (typically up to 250V AC)
Output Type: Analog Voltage Signal
Calibration: Onboard multi-turn potentiometer
High accuracy and good linearity
Electrical isolation for safety

🔹 Common Applications

AC voltage monitoring systems
Smart energy and power meters
Arduino and ESP32 power measurement
Home automation and protection systems
Industrial and educational projects
DIY electronics and energy analysis
