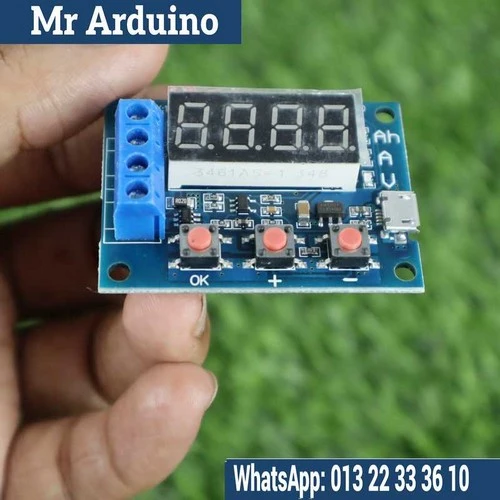

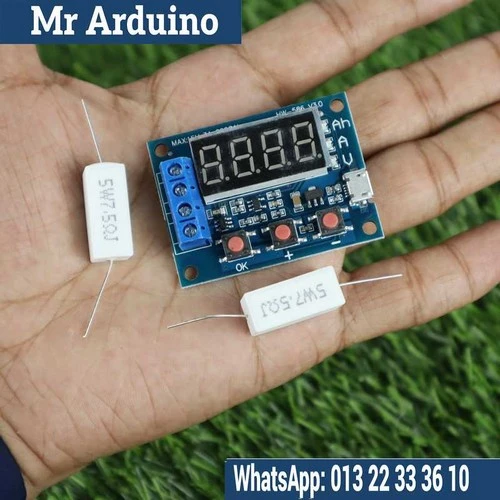

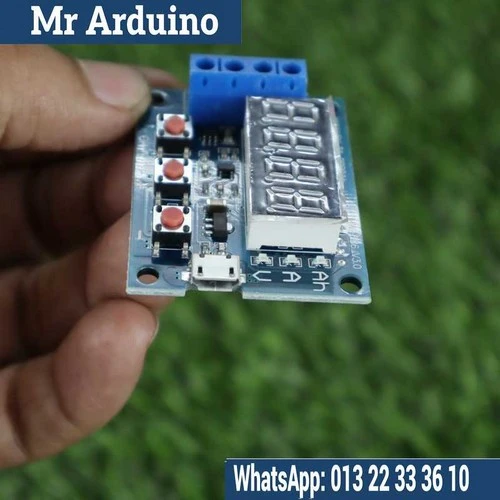

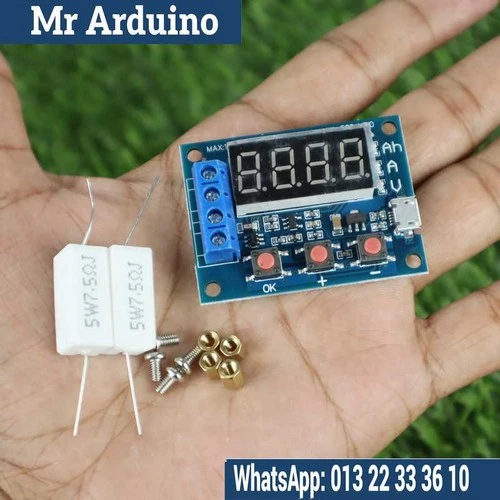

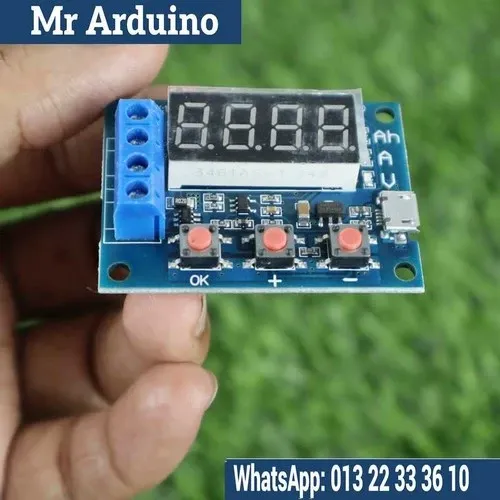

The ZB2L3 Battery Capacity Tester is a compact and efficient tool used for measuring the remaining charge or capacity of rechargeable batteries. It is designed to work with Li-ion, NiMH, and other types of rechargeable batteries, offering an easy way to assess the state of a battery's charge. This device is ideal for testing battery capacity in applications such as electric vehicles, robotics, battery-powered tools, and other electronics that rely on rechargeable batteries.

The ZB2L3 is particularly helpful for DIY projects, hobbyists, and professionals who need to monitor the health and performance of their rechargeable batteries to ensure they are functioning optimally. By testing the capacity, you can determine whether a battery needs to be replaced or if it is still in good condition for continued use.

How It Works: The ZB2L3 Battery Capacity Tester works by connecting the battery to the tester and running a discharge cycle. The tester measures the battery's voltage and current during the discharge process and estimates the remaining capacity or charge.

• Testing Process: The tester typically discharges the battery at a controlled rate and measures how long it takes for the battery's voltage to drop below a predefined threshold. Based on the amount of current discharged and the time it takes, the tester calculates the battery's overall capacity (usually in mAh or Wh).
• Voltage Monitoring: The tester constantly monitors the battery's voltage during the discharge cycle, displaying the current voltage on a screen. It also often includes an alarm or indicator to warn when the battery has reached the low voltage cutoff.
• Battery Types Supported: It can test a variety of battery types, including Li-ion, LiPo, and NiMH batteries, which are commonly used in electronic projects and devices.

Key Features:

• Multi-Battery Type Support: Can test multiple types of rechargeable batteries, including Li-ion, LiPo, NiMH, and others, making it versatile for various applications.
• Capacity Measurement: Provides an accurate reading of a battery's remaining charge or capacity in units such as mAh or Wh, allowing users to understand the battery's health and performance.
• Easy-to-Read Display: Typically includes a clear LCD or LED display showing important information such as voltage, current, capacity, and discharge time.
• Discharge Rate Control: Allows users to select the discharge rate based on the type and size of the battery being tested.
• Over-Discharge Protection: Includes automatic shut-off or alarms to prevent over-discharge, which could damage the battery.
• Portable Design: Compact and easy to carry, ideal for field testing or on-the-go battery assessments.

Specifications:

• Supported Battery Types: Li-ion, LiPo, NiMH, and other common rechargeable batteries.
• Testable Voltage Range: Usually operates with batteries ranging from 1.2V to 12V (depending on the model).
• Display Type: LCD or LED display for easy reading of results.
• Capacity Measurement: Displays battery capacity in mAh or Wh.
• Discharge Rate: Adjustable discharge rate for different battery sizes and types (typically around 100mA to 1A depending on the battery being tested).
• Low Voltage Cutoff: Typically around 2.5V to 3.0V for Li-ion/LiPo batteries, with adjustable settings for different chemistries.
• Current Measurement: Typically measures discharge current during testing, which is useful for battery performance analysis.
• Power Supply: Powered by the battery under test, no external power source needed.
• Over-Discharge Protection: Prevents deep discharges that could permanently damage the battery.

Applications:

• Battery Testing for Electronics: Ideal for checking the charge status of batteries in electronic projects, remote controls, cordless tools, and other battery-powered devices.
• Electric Vehicle (EV) and Robotics Applications: Used in testing and monitoring the health of batteries in electric vehicles, drones, robots, and other mobile units.
• DIY and Hobbyist Projects: Perfect for hobbyists who work with rechargeable batteries in their projects, allowing them to assess the battery's condition before use.
• Battery Health Monitoring: Useful for monitoring the health and capacity of batteries to determine when they need to be replaced or recharged.
• Professional Applications: Used in industries where battery health is critical, such as solar energy systems, emergency backup power systems, and medical devices.

Limitations:

• Discharge Process: The battery must be fully discharged for the most accurate capacity reading, which can take time. Some users may prefer faster testing methods.
• Not Suitable for High-Current Batteries: The tester is best suited for lower current applications. For high-capacity or high-discharge batteries (like those in power tools or vehicles), a more specialized tester might be required.
• Limited Voltage Range: The ZB2L3 may have a voltage range that limits its ability to test very high-voltage batteries, such as those used in large electric vehicles or industrial power systems.
• Accuracy Variations: Capacity measurements may vary depending on the battery’s age, condition, and previous usage history, which could affect the accuracy of the test.

The ZB2L3 Battery Capacity Tester is a highly useful tool for anyone working with rechargeable batteries. Whether you're a hobbyist, DIY enthusiast, or professional, this tester helps you accurately measure the remaining capacity of your batteries, ensuring their proper use and maintenance.
