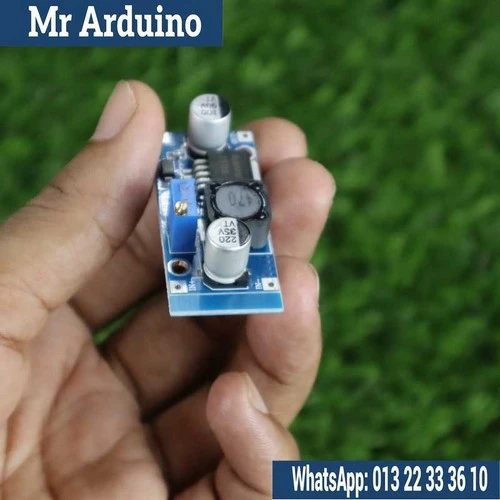

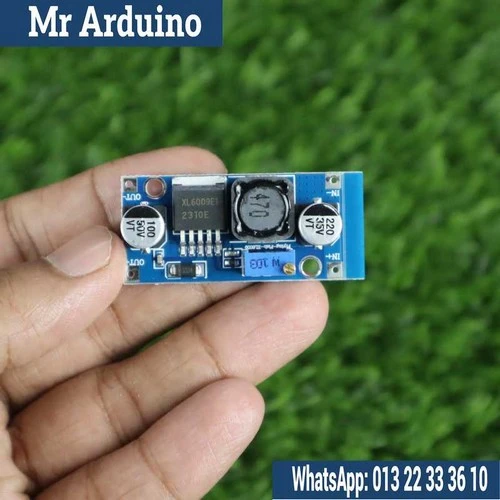

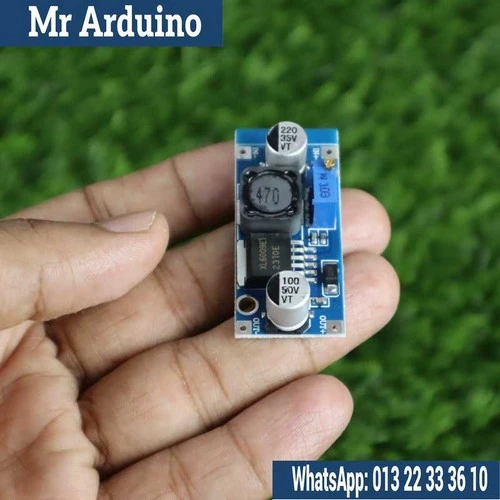

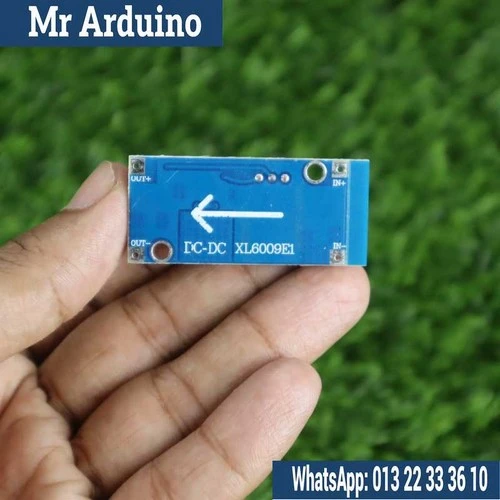

The XL6009 Boost Module is a highly efficient, adjustable DC-DC boost converter used to step up (increase) a lower DC voltage to a higher DC voltage. This module is based on the XL6009 integrated circuit, which is known for its reliability and high efficiency. The module is capable of providing a stable output voltage, making it suitable for various applications such as powering devices that require a higher voltage from a lower voltage source, powering LED strips, charging batteries, and more.

With an adjustable output voltage range and the ability to handle relatively high currents (typically up to 2-4A), the XL6009 Boost Module is ideal for projects where power needs to be converted efficiently and reliably. It’s commonly used in Arduino, Raspberry Pi projects, solar systems, and other DIY electronics requiring a stable, higher output voltage.

How It Works: The XL6009 Boost Module operates by utilizing a switching regulator that increases the input voltage to a higher, adjustable output voltage. The module uses the XL6009 chip to regulate the voltage through inductors, capacitors, and switching transistors to efficiently step up the voltage. It works by storing energy in an inductor and releasing it to the output at a higher voltage.

The module has a potentiometer (adjustment knob), allowing you to set the output voltage to the desired level within the module's output range (typically 5V to 35V, depending on the model). The XL6009 IC ensures high conversion efficiency, typically around 90%, making it suitable for battery-powered applications where conserving power is critical.

Key Features:

• Wide Input Voltage Range: Supports input voltages from 3V to 32V DC, making it compatible with a wide range of power sources (e.g., 12V batteries, 5V USB, solar panels).
• Adjustable Output Voltage: Allows output voltage adjustment from 5V to 35V, making it versatile for various applications that require different output voltages.
• High Efficiency: With an efficiency of up to 90%, it reduces energy loss during voltage conversion, making it suitable for portable or battery-powered projects.
• Current Output: Typically provides an output current of up to 2-4A depending on input and output conditions, making it ideal for powering medium-power devices.
• Overload and Short-Circuit Protection: Built-in protections help safeguard the module from damage caused by excessive load or wiring faults.
• Compact Design: Small form factor makes it easy to integrate into DIY electronics projects or commercial devices.
• Stable Output: Delivers a consistent, reliable output voltage for sensitive electronics.
• Wide Application Range: Perfect for use in solar systems, battery-powered devices, robotics, LED lighting, power supplies for Arduino or Raspberry Pi, and other electronics requiring a step-up voltage converter.

Specifications:

• Input Voltage Range: 3V to 32V DC
• Output Voltage Range: 5V to 35V DC (adjustable)
• Output Current: Typically 2A (maximum), up to 4A in short bursts
• Efficiency: Up to 90% depending on load and input/output conditions
• Switching Frequency: Typically 150kHz (depends on the specific module)
• Protection Features: Overload protection, short-circuit protection, and overvoltage protection
• Operating Temperature Range: -40°C to +85°C
• Size: Compact, typically around 50mm x 30mm x 15mm, ideal for integration into small spaces

Limitations:

• Maximum Output Current: While the module can handle up to 2A continuous output current, the maximum output current depends on input voltage and efficiency. If you need higher current outputs, you may need a different, higher-rated boost converter.
• Heat Generation: At higher output currents and voltages, the module may generate heat. Adequate ventilation or a heatsink may be required for long-term or high-power usage.
• Output Voltage Limits: The module’s output voltage can be adjusted, but it is limited to a maximum of 35V. For applications requiring voltages above this, a different solution may be needed.
• Input Voltage Limit: The module supports a maximum input voltage of 32V. Using an input voltage higher than this may damage the module.

The XL6009 Boost Module is an excellent choice for applications requiring efficient, adjustable voltage conversion. Its ability to step up voltage from as low as 3V to as high as 35V, combined with its high efficiency, makes it ideal for a wide variety of DIY electronics projects, especially those that need reliable and energy-efficient power conversion. Whether you're powering sensors, motors, or LED lights, this module is a great solution for powering projects that require a stable and adjustable higher voltage.
