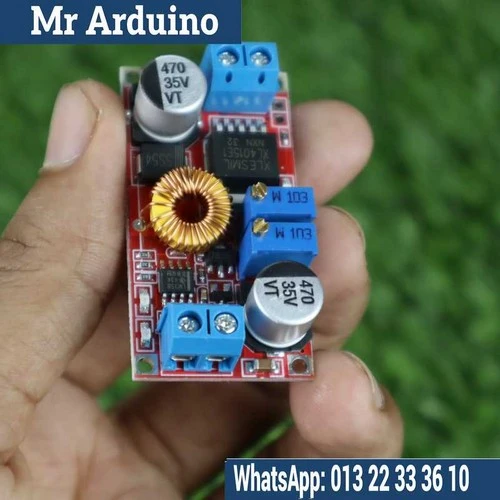

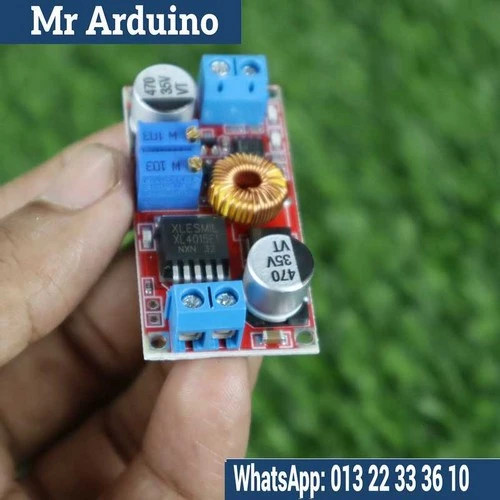

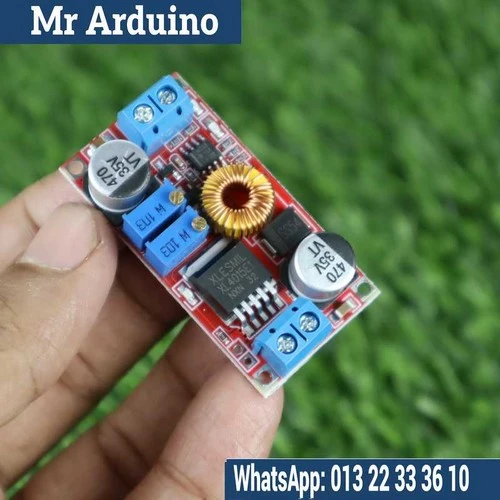

The XL 4015 is a DC-DC buck converter (step-down voltage regulator) used for efficiently converting a higher input voltage to a lower output voltage. It is built around the XL4015 integrated circuit and is typically used in power supply applications, where reducing voltage while maintaining efficiency is critical. The XL 4015 is capable of handling higher output currents compared to similar modules, making it suitable for powering a wide range of devices, including Arduino, Raspberry Pi, LED strips, and other electronics that require a stable lower voltage.

The module is commonly used in DIY projects, robotics, and other electronics where a high-efficiency, compact, and reliable power supply is needed. With adjustable output voltage and current capabilities, it is perfect for situations requiring precise power regulation.

How It Works: The XL 4015 operates based on the principles of a buck converter, which steps down the input voltage while maintaining high efficiency. It uses a PWM (Pulse Width Modulation) control mechanism to regulate the output voltage.

• The input voltage is supplied to the converter, typically ranging from 8V to 40V.
• The XL4015 IC adjusts the duty cycle of the pulse-width modulation to control the flow of energy to the output, effectively reducing the voltage to the desired level.
• The output voltage is adjustable via a potentiometer (often labeled as "Vout") on the module, and the output current is regulated based on the load.
• The efficiency of the conversion can be as high as 96%, which reduces heat generation and increases the overall performance compared to linear regulators.

Key Features:

• Wide Input Voltage Range: Supports input voltages ranging from 8V to 40V DC, making it versatile for various applications.
• Adjustable Output Voltage: The output voltage can be easily adjusted using a potentiometer from approximately 1.25V to 36V DC, providing flexibility for different applications.
• High Output Current: Capable of delivering up to 5A of continuous output current, making it suitable for powering devices that draw higher current loads.
• High Efficiency: Typically around 96%, which means less energy is wasted as heat, leading to better performance and longer lifespan of the system.
• Short Circuit and Overcurrent Protection: Includes protection features to prevent damage to the module or the powered device in case of short circuits or excessive current draw.
• Overtemperature Protection: Prevents overheating by shutting down the module if it exceeds safe operating temperatures.
• Compact Design: The module is small and easy to integrate into various projects, including embedded systems, hobbyist setups, and industrial applications.

Specifications:

• Input Voltage: 8V to 40V DC (depending on the specific version)
• Output Voltage: 1.25V to 36V DC (adjustable)
• Maximum Output Current: 5A (Note: The actual current limit can be less depending on input/output voltage conditions and cooling)
• Efficiency: Up to 96% (varies depending on input/output conditions)
• Adjustable Output: Yes, via potentiometer
• Protection Features:
  • Overcurrent protection
  • Short circuit protection
  • Overtemperature protection
• Operating Temperature Range: Typically -40°C to +85°C
• Size: Typically around 5.5 cm x 2.5 cm for the module, compact and easy to use.

Applications:

• Power Supply for Microcontrollers: Perfect for providing a stable and efficient power source for microcontrollers like Arduino, ESP32, or Raspberry Pi.
• Battery-Powered Projects: Ideal for projects powered by batteries that require a step-down voltage conversion to maintain efficient power usage.
• LED Lighting Systems: Used for powering LED strips or other lighting systems that require lower voltage (e.g., 12V or 5V) from a higher input source.
• Robotics: Provides the required voltage and current for various robotic systems, including motors, sensors, and controllers.
• Automotive and Solar Systems: Used in automotive applications and solar-powered systems to regulate power output from batteries or solar panels.
• Electric Vehicles and Drones: Powers systems that require high current and stable voltage, making it suitable for these applications.

Limitations:

• Limited to Step-Down Conversion: The XL 4015 is a buck converter, meaning it can only step down the voltage. It is not suitable for situations where you need to boost the voltage (e.g., step-up converters).
• Heat Dissipation: Although the module is efficient, high current outputs may require proper heat management to prevent overheating. A heatsink may be necessary for sustained high-power operation.
• Current Limiting: The maximum current of 5A is dependent on various factors such as the input voltage and output voltage difference, and the real-world performance might be slightly lower under certain conditions.
• Complex Integration for Beginners: While easy to use in most applications, beginners might need some understanding of how DC-DC converters work to ensure proper setup and avoid issues like overheating or incorrect voltage levels.

The XL 4015 DC-DC buck converter is an excellent solution for projects that require an efficient, adjustable, and reliable power source. Its high efficiency, wide voltage range, and high current output make it an essential component for DIY electronics, robotics, and various industrial applications.
