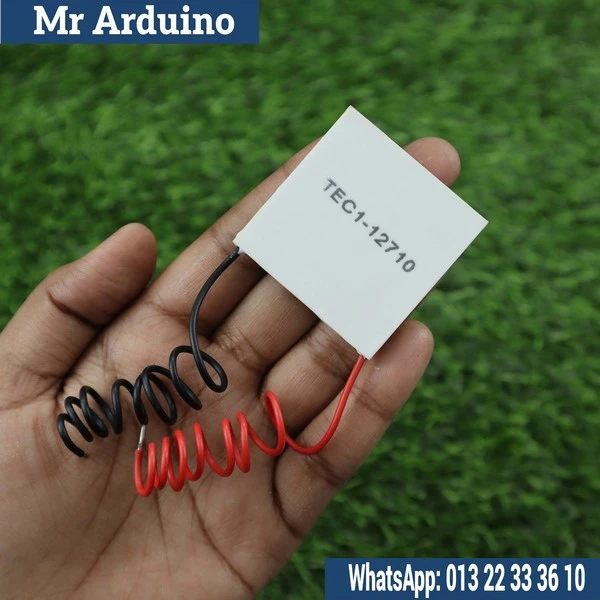

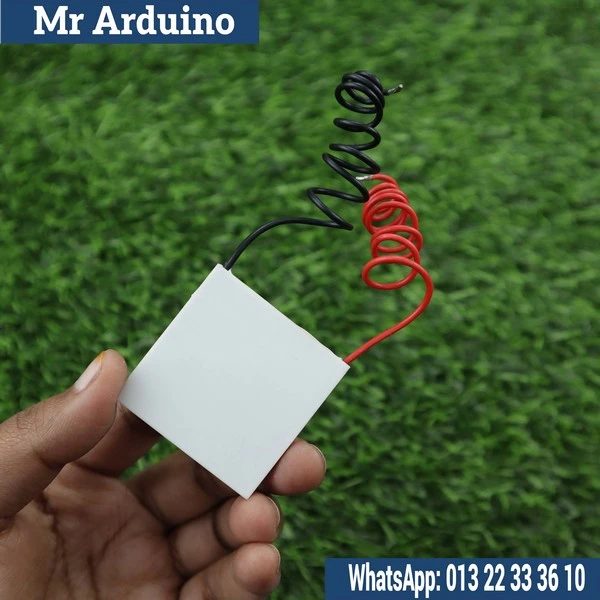

The TEC1-12710 Thermoelectric Cooler Peltier Module is a solid-state device designed for efficient temperature regulation. Utilizing the Peltier effect, it is capable of cooling or heating by transferring heat from one side of the module to the other. The module features high efficiency and compact design, making it ideal for various temperature control applications like cooling systems, small refrigerators, climate-controlled enclosures, and electronic device cooling.

This module is a great choice for DIY projects and custom cooling solutions, providing precise and reliable cooling or heating in systems that need temperature management.

How It Works:
When a DC voltage is applied to the TEC1-12710 module, one side becomes cold and absorbs heat, while the other side becomes hot and releases heat. The device operates on the principle of thermoelectric cooling, and the hot side must be properly dissipated using a heat sink or fan to prevent overheating. The cold side can be used to cool objects or electronic components, while the hot side requires effective heat dissipation.

Specifications:

• Module Type: Peltier Thermoelectric Cooler

• Maximum Voltage: 12.6V DC

• Maximum Current: 10A

• Maximum Power Consumption: 120W

• Cooling Capacity: Up to 50W (depending on temperature differential)

• Temperature Difference (ΔT): Max 67°C (between hot and cold sides)

• Operating Voltage: 12V DC (standard operating voltage)

• Size: 40mm x 40mm x 4mm (approx.)

• Material: Ceramic (cold and hot sides)

• Max Operating Temperature: 70°C

• Lead Length: 100mm (for both positive and negative terminals)

• Weight: ~25g

Features:

• Efficient Cooling/Heating: Capable of providing a significant temperature difference, ideal for cooling small electronic components or custom temperature-controlled environments.

• Compact and Lightweight: Its small size makes it suitable for portable or tight-space cooling applications.

• No Moving Parts: As a solid-state cooling solution, the TEC1-12710 has no mechanical parts, ensuring maintenance-free operation and longevity.

• Silent Operation: Unlike traditional fans and compressors, this Peltier module operates silently, making it ideal for noise-sensitive environments.

• Easy to Integrate: Can be integrated easily into custom cooling systems, DIY electronics projects, and small-scale refrigeration setups.

Applications:

• Cooling of electronic components like CPUs, GPUs, or microcontrollers

• Portable or mini refrigeration systems (e.g., drink coolers or small fridges)

• Temperature control for scientific and laboratory experiments

• Custom air conditioning or climate control systems

• Cooling of sensitive equipment in medical, optical, or telecommunications devices

• DIY thermoelectric-based cooling and heating systems

Limitations:

• Requires proper heat dissipation: The hot side of the module must be connected to a heat sink or active cooling system (like a fan) to ensure proper performance and avoid damage due to overheating.

• High power consumption: The module requires a sufficient power source, typically a 12V DC power supply capable of delivering at least 10A.

• Temperature differential affects performance: The module works best with a lower temperature difference between the hot and cold sides. A higher differential reduces its efficiency.

• Not suitable for large-scale cooling without proper thermal management (e.g., large heat sinks or multiple modules).
