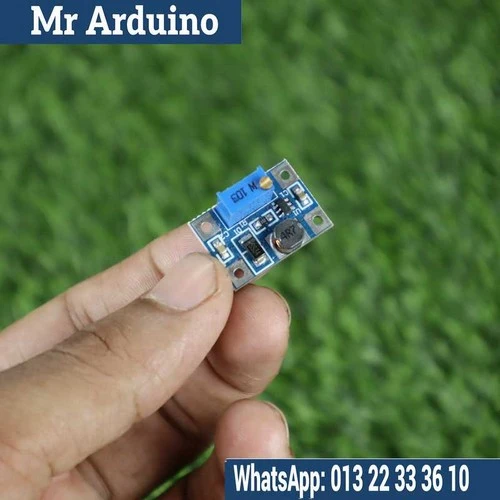

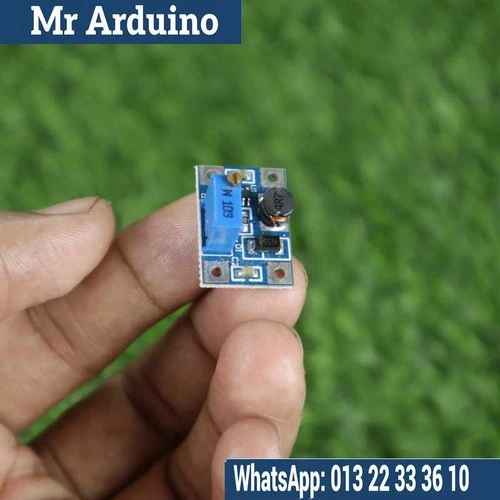

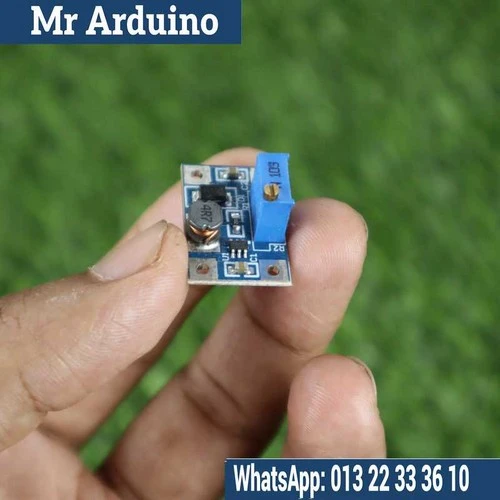

The SX1308 is a highly efficient DC-DC step-up (boost) converter module designed to convert lower voltages into higher voltages. It is commonly used to power devices that require a higher voltage than the available input, such as 5V to 12V or 3.7V to 5V. The SX1308 is popular in various DIY electronics projects, battery-powered devices, and other applications that require efficient voltage boosting with minimal energy loss.

This module is typically used to power small electronics, such as LED strips, Arduino boards, small motors, and other components from a low-voltage power source (such as a Li-ion battery or solar panel). The SX1308 boasts high efficiency, often up to 96%, ensuring minimal heat generation and extended battery life in portable applications.

How It Works: The SX1308 operates as a step-up (boost) converter, which means it increases the input voltage to a higher output voltage. Here’s how it works:

1. Input Voltage: The module typically accepts input voltages from 0.9V to 5V (making it suitable for low-voltage power sources like single-cell Li-ion or LiPo batteries, or even solar panels).
2. Boost Conversion: Using an oscillator circuit and an inductor, the SX1308 boosts the voltage to the required level. The module switches on and off rapidly to store energy in the inductor and then release it at a higher voltage.
3. Adjustable Output: The output voltage is adjustable using a small potentiometer (a trimmer knob) on the module. This allows you to fine-tune the output to meet the needs of your device or project.
4. Efficiency: Due to its efficient switching technology, the SX1308 can provide a high output voltage while consuming minimal input power, making it ideal for battery-powered applications.

Key Features:

• Wide Input Voltage Range: The SX1308 can operate from 0.9V to 5V, which is suitable for powering from a wide range of low-voltage sources, such as a single-cell Li-ion battery or solar panels.
• Adjustable Output Voltage: Output voltage is adjustable, typically from 5V to 12V, depending on the requirements of the application. This makes it versatile for various projects.
• High Efficiency: The SX1308 operates with high efficiency, typically around 96%, meaning more of the input power is converted into usable output power with minimal energy loss.
• Compact and Lightweight: The module has a small form factor, making it ideal for compact projects and portable applications.
• Low Power Consumption: The module consumes very little power itself, making it highly efficient for battery-operated devices.
• Overcurrent and Overvoltage Protection: It provides built-in protections to avoid damage from overcurrent or overvoltage conditions, ensuring safe and reliable operation.
• Easy to Use: Simple and easy to integrate into various projects with adjustable output for fine-tuning to meet your voltage needs.

Specifications:

• Input Voltage: 0.9V to 5V (typically powered by a single-cell Li-ion or LiPo battery, or other low-voltage power sources).
• Output Voltage: Adjustable, typically 5V to 12V (depending on the input voltage and your specific needs).
• Maximum Output Current: Up to 2A (with proper cooling and suitable input voltage).
• Efficiency: Up to 96%, depending on the input-output voltage difference.
• Power Supply: Powered by the input voltage source (no additional power required).
• Output Voltage Accuracy: Typically within ±0.1V of the set output voltage.
• Size: Compact, typically around 3.5 cm x 2.5 cm, making it suitable for small-scale projects.
• Protections: Overcurrent, overvoltage, and short-circuit protection to prevent damage to the module and the powered device.
• Operating Temperature Range: Typically -40°C to 85°C, suitable for a wide range of environments.

Applications:

• Battery-Powered Projects: Ideal for projects where you need to boost a low voltage (e.g., Li-ion battery at 3.7V) to a higher voltage (e.g., 5V or 12V for powering devices).
• LED Lighting: Can be used to power LED strips or other LED-based lighting systems that require higher voltages than what is available from typical battery voltages.
• Arduino Projects: Commonly used to power Arduino boards or other microcontroller-based projects that need a voltage higher than the battery voltage.
• Solar Energy Systems: Suitable for small solar systems where you want to boost the low voltage from the solar panel (e.g., 5V or 3.7V) to a higher voltage (e.g., 12V for powering devices).
• Portable Electronics: Great for making portable power supplies, such as powering small motors or sensors from a battery.
• Drones and Robotics: Used in small-scale robotic systems to power motors or other components that require higher voltage than what is available from a battery.
• Rechargeable Power Systems: Works well with rechargeable batteries to maintain a steady power output at a specific voltage.

Limitations:

• Current Limitation: Although it can supply up to 2A output current, higher current demands could lead to overheating or voltage drop if the module is not properly cooled or if the input voltage is insufficient.
• Heat Generation: When the module operates at high output currents or large voltage differentials, it may generate heat. This can be mitigated with additional heat sinks or better ventilation in high-power applications.
• Input Voltage Range: The module is designed for low-voltage sources, so it may not work effectively with input voltages outside the specified range of 0.9V to 5V.
• Lower Output at Higher Voltage Conversion: As with any boost converter, the output current decreases as the input voltage is stepped up. For example, if you are converting from 3.7V to 12V, the available current at 12V will be lower than at 3.7V.

The SX1308 is a versatile and highly efficient DC-DC boost converter ideal for a variety of electronics and DIY projects where you need to step up a lower voltage to a higher one. Its compact design, high efficiency, and adjustable output voltage make it perfect for battery-powered projects, solar systems, and other low-voltage applications.
