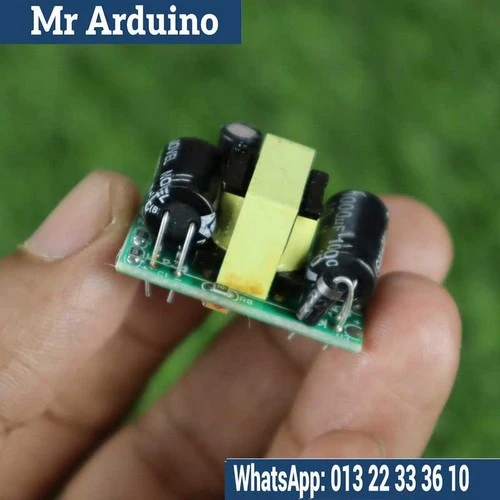

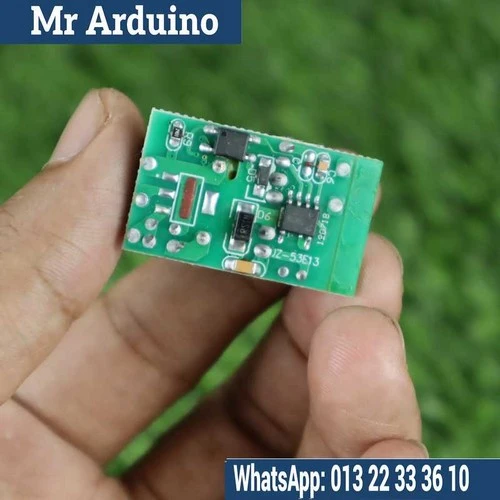

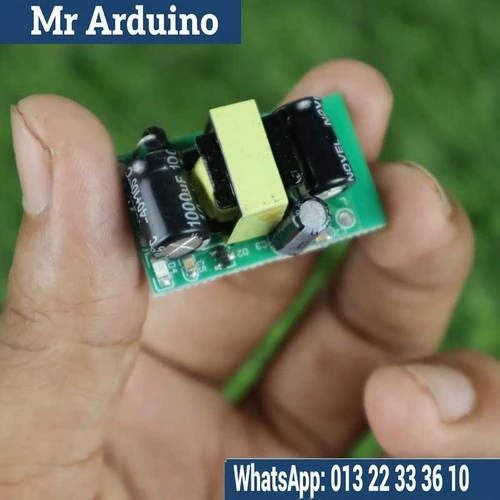

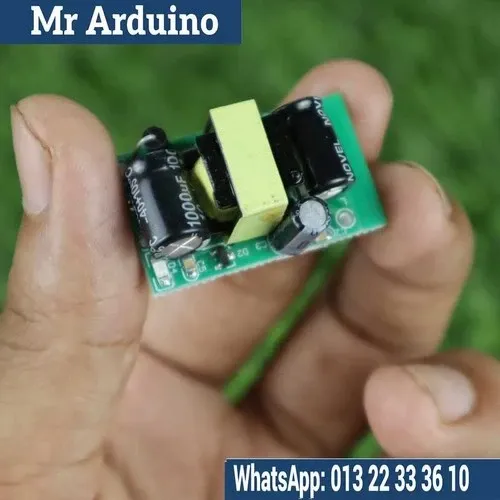

The SMPS (Switch Mode Power Supply) 5V 700mA is a compact and efficient power supply module designed to convert AC (Alternating Current) to DC (Direct Current) power. This module provides a stable 5V output with a current capacity of 700mA, making it ideal for powering small electronics and microcontroller-based projects, such as Arduino boards, LED strips, sensors, and other low-power devices.

The key advantage of using an SMPS module over traditional linear power supplies is its higher efficiency, as it reduces heat dissipation and energy loss. This makes it more energy-efficient and suitable for portable or battery-operated systems where power consumption is crucial.

How It Works: The SMPS 5V 700mA operates by switching the input AC voltage at a high frequency to DC voltage with the help of semiconductors, such as transistors. This is done in the following steps:

1. AC Input: The module receives an AC voltage input, typically 110V or 220V AC depending on your region.
2. Rectification: The AC input is first rectified to DC using a rectifier circuit, which converts the alternating current to a unidirectional current.
3. Switching Regulation: The rectified DC voltage is then fed into a switching regulator circuit, which uses a high-frequency oscillator to switch the voltage on and off rapidly. This helps to control the output voltage.
4. Filtering: After switching, the output is smoothed using capacitors and inductors to provide a clean and stable 5V DC output.
5. Output: The final output is a steady 5V DC at 700mA, suitable for low-power electronic circuits.

Key Features:

• Efficient Conversion: Converts AC to 5V DC with high efficiency (typically above 80%), minimizing power loss and heat dissipation.
• Stable Output Voltage: Provides a stable 5V DC output, making it ideal for powering sensitive electronics that require a constant voltage.
• Current Capacity: The module can supply a maximum of 700mA, which is sufficient for powering a wide range of low-power devices like sensors, microcontrollers, and small modules.
• Compact and Lightweight: The module is small in size, allowing for easy integration into various applications where space is limited.
• Overload Protection: Many versions of the SMPS module are equipped with overload protection to prevent damage to the module and connected devices in case of excessive current draw.
• Short-Circuit Protection: Provides short-circuit protection to safeguard the module from damage if there is a short on the output side.
• Low Heat Generation: Due to the nature of switching power supplies, the SMPS 5V 700mA operates with significantly less heat generation compared to linear power supplies.
• Universal AC Input: Typically supports an input range of 110V to 220V AC, making it suitable for use in different regions worldwide.

Specifications:

• Input Voltage: Typically 110V-220V AC (depending on the region; the module is designed for universal AC input).
• Output Voltage: 5V DC.
• Output Current: 700mA maximum.
• Efficiency: Typically 80% to 85%, which reduces energy loss and heat generation.
• Power Output: Can supply a maximum power of 3.5W (5V × 0.7A).
• Protection Features: Overload protection, short-circuit protection, and thermal protection for safe operation.
• Operating Temperature Range: Typically 0°C to 40°C.
• Dimensions: Usually compact, around 5cm x 4cm, depending on the specific module design.
• Weight: Lightweight, typically 10-20 grams.
• Cooling: No active cooling required, operates efficiently with minimal heat generation.

Applications:

• Microcontroller Projects: Perfect for powering Arduino, Raspberry Pi, or other development boards and small electronics that require a stable 5V supply.
• LED Strips: Ideal for driving low-power LED strips or other lighting applications that require a stable 5V DC power input.
• Sensors and Modules: Used to power various sensors, displays, and other low-power electronic modules in embedded systems.
• Battery Charging Systems: Used in charging circuits or to power small battery charging systems.
• Portable Devices: Suitable for use in battery-operated devices where high efficiency is needed to prolong battery life.
• Communication Systems: Can be used to power small communication devices that require a stable 5V supply, such as radio modules or Wi-Fi/Bluetooth modules.

Limitations:

• Current Limitation: The module can only supply up to 700mA of current. If your project requires more current, you'll need to use a higher-rated power supply.
• AC to DC Conversion: It requires an AC source, so it’s not suitable for projects that only have a DC power input.
• Limited Voltage Options: The module is designed specifically for a 5V output and cannot be easily adjusted to other voltages.
• Temperature Sensitivity: While the module has a reasonable operating temperature range, prolonged use in high-temperature environments could impact its lifespan or performance.

The SMPS 5V 700mA is a practical and reliable power supply solution for various low-power electronics. Its high efficiency, small size, and stable output make it ideal for a wide range of applications, from microcontroller projects to powering small LED systems or sensors. Whether you're building a DIY project, creating a battery-powered system, or developing a portable device, the SMPS 5V 700mA offers a compact and energy-efficient solution for your power needs.
