A pulse sensor module is a device designed to measure the heart rate by detecting the pulse through the skin. It is commonly used in DIY electronics projects, fitness trackers, and health monitoring systems. Here’s a detailed description of a typical pulse sensor module:

1. Functionality:

   • The pulse sensor module works by detecting the change in volume of blood flow through the fingertip or earlobe. This is achieved using an optical sensor that consists of an LED and a photodetector.
   • The LED emits light into the skin, and the photodetector measures the amount of light that is reflected back. As the heart pumps blood, the volume of blood in the tissues changes, leading to a change in the amount of reflected light, which the sensor detects as a pulse.

2. Components:

   • Optical Sensor: Typically includes an LED and a photodetector. The LED may emit green, red, or infrared light.
   • Microcontroller Interface: The sensor is designed to interface with microcontrollers such as Arduino. It outputs an analog signal corresponding to the heartbeat.
   • Amplifier and Filter Circuitry: To enhance the weak signal from the photodetector and filter out noise.

3. Specifications:

   • Operating Voltage: Generally between 3.3V to 5V.
   • Output: Analog signal that can be read by an ADC (Analog to Digital Converter) on a microcontroller.
   • Accuracy: Dependent on the placement of the sensor and environmental conditions.

4. Applications:

   • Used in wearable fitness devices to monitor heart rate.
   • Incorporated in medical devices for patient monitoring.
   • Employed in DIY electronics projects for educational purposes.

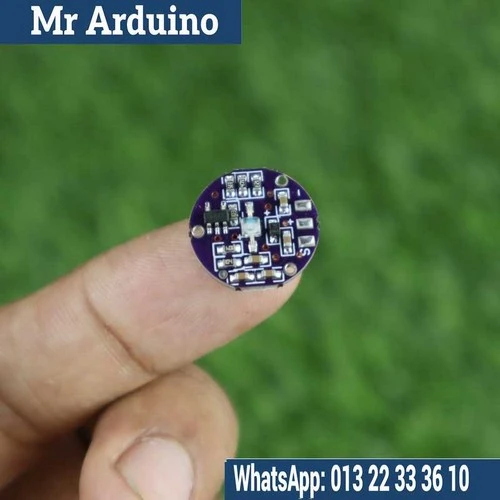

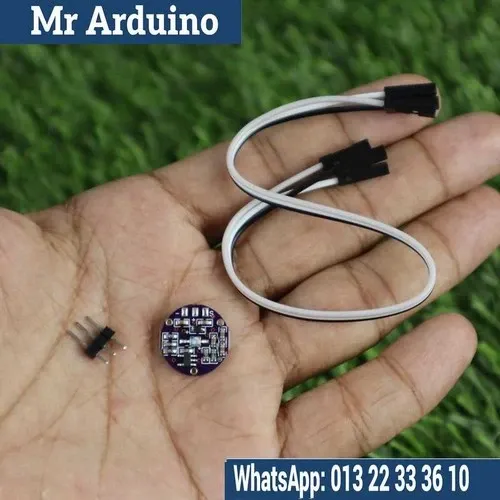

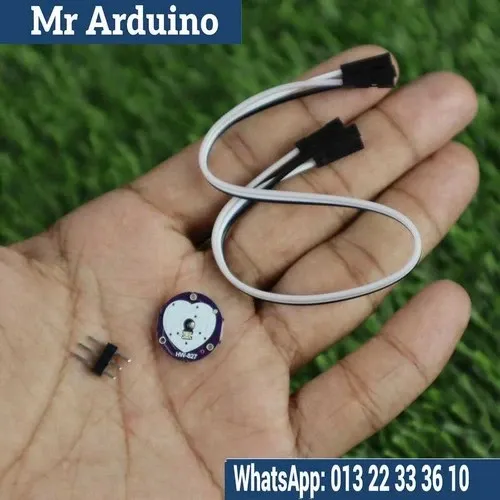

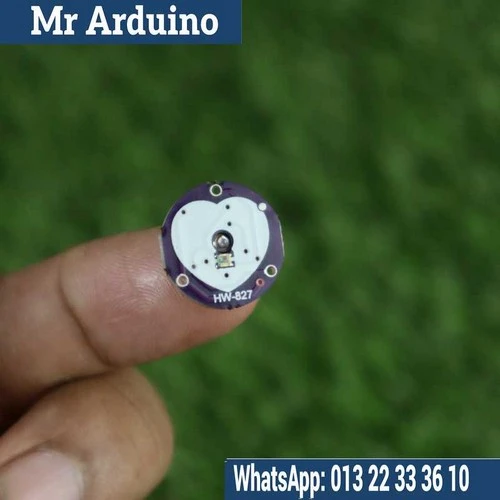

For a specific product example, consider the "Pulse Sensor 3.3-5V Heartbeat Heart Rate Monitor Sensor" [1], which is designed to be used with microcontrollers like Arduino for easy integration into various projects.
