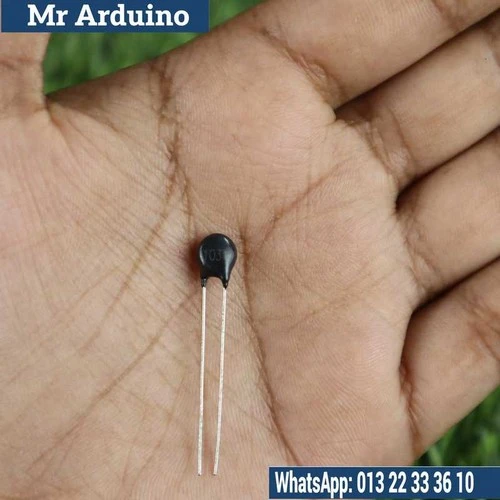

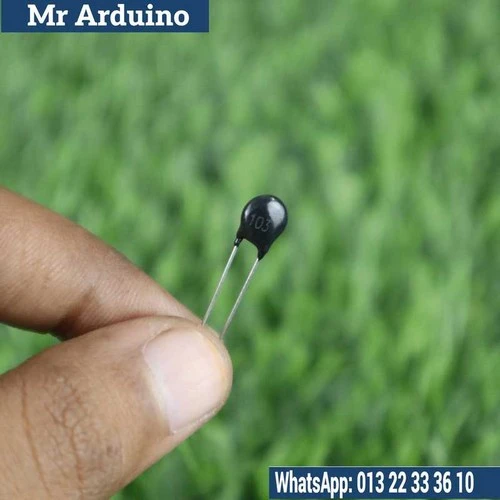

The NTC 103 Thermistor is a type of Negative Temperature Coefficient (NTC) thermistor, which means its resistance decreases as the temperature increases. Specifically, the NTC 103 thermistor has a resistance value of approximately 10kΩ at 25°C (room temperature), and its resistance decreases with rising temperature. This characteristic makes it ideal for temperature sensing and circuit protection applications.

NTC thermistors are commonly used in temperature measurement, temperature compensation, and current limiting circuits. The NTC 103 thermistor is widely used in power supplies, batteries, and other electronic circuits where temperature monitoring and regulation are necessary. As the temperature increases, the resistance of the thermistor drops, which can trigger specific actions within a circuit, such as activating a fan, adjusting a voltage regulator, or shutting down a system if the temperature becomes too high.

Key Features:

• Resistance: 10kΩ at 25°C (room temperature), typically used for temperature sensing or compensation applications.

• NTC (Negative Temperature Coefficient): The resistance decreases as the temperature increases, making it suitable for temperature measurement and control.

• Temperature Range: Typically operates in a temperature range of -40°C to +125°C, depending on the specific model.

• High Stability: Offers good resistance stability over a wide range of temperatures, ensuring reliable performance in various environments.

• Compact Size: Typically available in a small disc or bead form factor, allowing easy integration into circuits.

• Material: Made from ceramic materials with metallic oxide compositions, providing durability and consistent performance.

Applications:

• Temperature Sensing: Used in temperature sensing applications, such as monitoring the temperature of batteries, motors, or electronic components.

• Thermal Protection: Can be used for circuit protection, such as preventing overheating by triggering actions (e.g., turning on a cooling fan or shutting down a system) when the temperature exceeds a predefined threshold.

• Current Limiting: In power supply circuits, an NTC thermistor is often used as an inrush current limiter to reduce the initial current surge when the device is powered on, protecting components from sudden voltage spikes.

• Temperature Compensation: Used in circuits to compensate for temperature-induced changes in resistance, maintaining the stability and accuracy of sensitive electronic devices.

• Battery Management: Frequently used in battery management systems (BMS) to monitor and protect the temperature of battery packs during charging and discharging.

How It Works: The NTC 103 Thermistor operates based on its negative temperature coefficient property, meaning that as the temperature increases, the resistance of the thermistor decreases. This allows it to act as a temperature sensor, where a change in temperature will result in a measurable change in resistance.

In temperature sensing applications, the thermistor’s resistance is measured by a circuit, and the change in resistance is correlated to temperature. For example, as the temperature rises in a system (e.g., an overheating power supply or battery), the thermistor’s resistance decreases, which can be used to trigger an alert or automatic system response (e.g., reducing power or activating a cooling system).

In current limiting applications, the thermistor is placed in series with the power supply to limit the initial surge of current. When the device is first powered on, the thermistor is cold and has higher resistance, which limits the current. As the thermistor heats up due to the current flow, its resistance decreases, allowing more current to pass through the circuit once the inrush surge has passed.

Product Limitations:

• Voltage Rating: The NTC 103 Thermistor typically operates at lower voltages (e.g., 25V to 50V). It's important to ensure that the thermistor is used within its voltage rating to avoid breakdown or failure.

• Temperature Sensitivity: While the thermistor offers good performance, its resistance change is not linear across the entire temperature range. In high-precision applications, calibration may be required for accurate temperature measurement.

• Power Dissipation: The thermistor will generate heat due to its own resistance during operation, and excessive power dissipation can affect its performance or lead to failure. It's important to ensure that the thermistor is used within the specified power rating.

The NTC 103 Thermistor is a versatile, reliable, and cost-effective component for a wide range of temperature-related applications, offering precise temperature sensing, circuit protection, and current limiting capabilities. Its small size, high stability, and negative temperature coefficient make it an essential part of many electronic designs.
