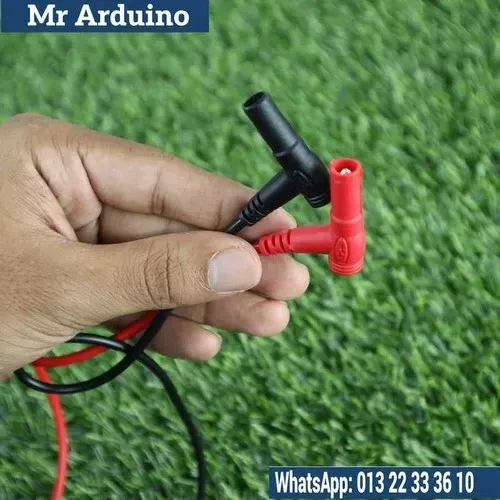

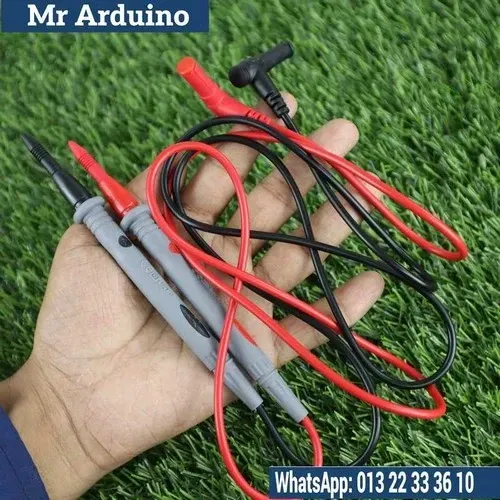

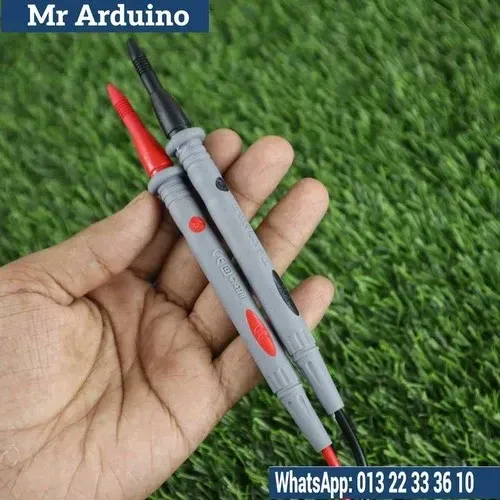

The Multimeter Probe is an essential accessory used in conjunction with a digital multimeter or analog multimeter for measuring electrical parameters such as voltage, current, and resistance. These probes are the primary tools for establishing a connection between the multimeter and the component or circuit under test. Typically, multimeter probes come in pairs—red for positive connections and black for negative—and they allow the user to take accurate readings by directly contacting the electrical points.

Made from high-quality materials, the multimeter probes are designed for reliable performance and are suitable for use in various electrical, industrial, automotive, and household applications. They often feature insulated handles for safety, soft rubber grips for ease of use, and sharp metal tips for precise contact with test points.

Key Features:

• Red and Black Probes: The red probe is used for positive connections, while the black probe is for negative or ground connections, following standard measurement practices.
• High-Quality Insulation: Probes are typically made with high-quality, durable insulation to prevent accidental shorts and ensure safe measurements.
• Flexible and Durable Leads: The probe wires are made from flexible, insulated cables to prevent damage and allow easy maneuvering in tight spaces while maintaining a strong electrical connection.
• Sharp Metal Tips: The tips are usually made of hard, durable metal (often stainless steel), allowing for precise contact with the points being measured, such as wires, terminals, or circuit boards.
• Versatile Compatibility: Multimeter probes can be used with most digital or analog multimeters, making them a universal accessory for electrical testing and measurements.
• Safety Features: Many probes come with insulated handles that provide protection from electrical shock, as well as safety ratings that ensure safe operation in various environments.

How It Works: Multimeter probes are used to connect the multimeter to the circuit or device being tested. Here's how they work:

1. Connecting to the Multimeter: Insert the probes into the appropriate ports on the multimeter—red into the positive port (typically labeled as VΩmA) and black into the common (COM) port.

2. Testing Voltage: To test voltage, place the red probe on the point where you want to measure the positive voltage (e.g., the positive terminal of a battery or circuit) and the black probe on the negative terminal or ground.

3. Testing Resistance: To measure resistance, disconnect the circuit and place the probes across the component you're testing. The multimeter will display the resistance in ohms (Ω).

4. Testing Current: To measure current, you must break the circuit and insert the probes in series with the circuit. The current will flow through the multimeter and the probes, allowing you to take a reading.

5. Safe Handling: Always ensure the probes are connected securely before taking measurements and never touch the metal parts of the probes while testing a live circuit to prevent electrical shocks.

Limitations:

• Voltage and Current Limits: Different probes have specific voltage and current ratings. If you exceed the limits, it could result in damage to the probes or multimeter, and pose a safety hazard.
• Not Suitable for High Voltage Systems: While they are suitable for most household and automotive applications, the probes may not be rated for high voltage or high current applications. Always check the specifications for safe operation.
• Potential for Damage: The sharp tips can wear out over time with heavy use or if not handled properly, leading to difficulty in achieving accurate contact with test points.

The Multimeter Probe is a crucial tool for anyone working with electrical systems, providing a safe, reliable means of making accurate measurements with your multimeter. Whether you're working with low-voltage circuits, automotive systems, or household electronics, these probes ensure precision and safety during testing and troubleshooting.
