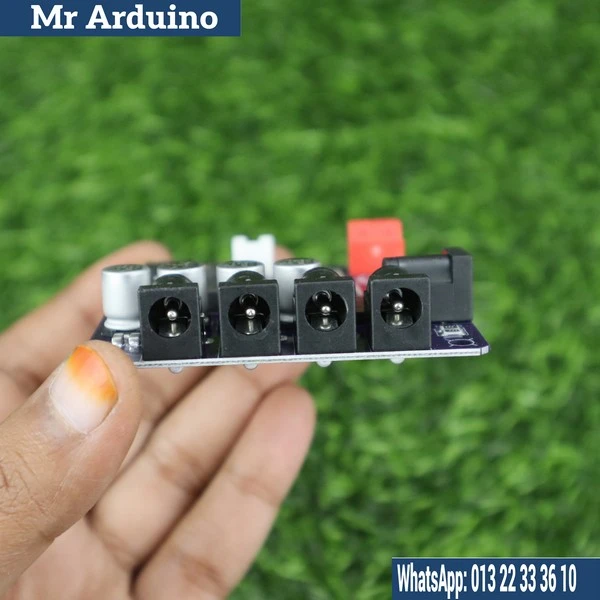

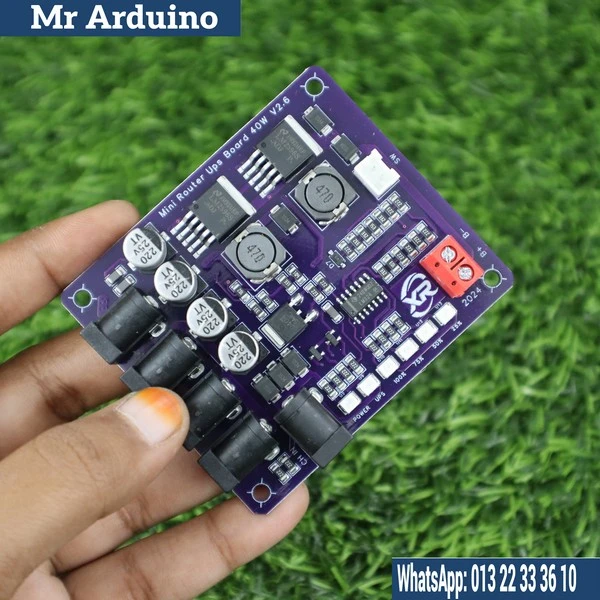

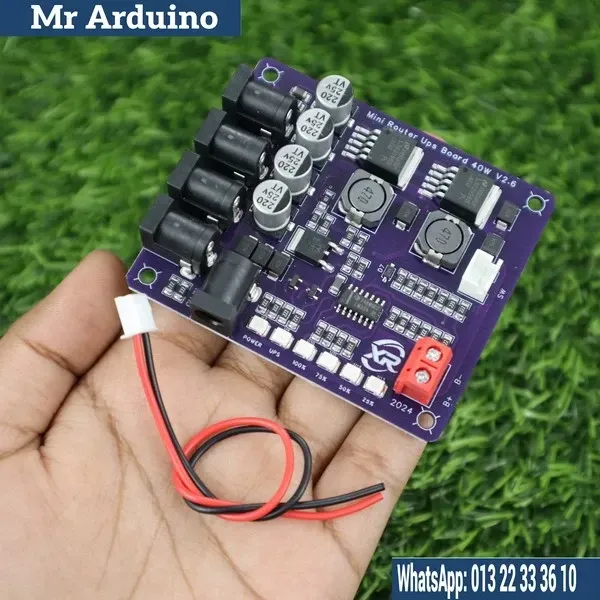

The Mini Router UPS Circuit Board 40W V2.6 is a compact and efficient uninterrupted power supply (UPS) module designed to keep your router, modem, or small network devices running during power outages. With support for up to 40 watts of power, this smart circuit ensures your internet stays online during load-shedding or blackouts—ideal for work-from-home users, gamers, and smart home setups.

This Version 2.6 board features improved power efficiency, better thermal performance, and smart switching between main power and battery backup. It is designed to work seamlessly with 12V batteries and 12V-powered routers.

How It Works:
The UPS board connects between your DC power source (like a 12V adapter) and your router. It charges the battery while mains power is present and instantly switches to battery backup during a power failure—without resetting or rebooting your router. The built-in protection circuits safeguard your devices from overcharging, short circuits, and reverse polarity.

Specifications:

• Input Voltage (Adapter): 12V DC

• Battery Input: 12V Sealed Lead-Acid (SLA) or Li-ion Battery

• Output Voltage: 12V DC regulated

• Maximum Output Power: 40W

• Version: V2.6 (Enhanced design for better efficiency and thermal performance)

• Switching Time: <10ms (instant switch during power loss)

• Battery Charging: Intelligent charge controller with auto-cutoff

• Efficiency: >90% (typical)

• Indicators: Power and battery status LEDs (varies by model)

• Board Dimensions: Compact design for easy integration in enclosures

Features:

• Seamless automatic switchover between adapter and battery

• Supports up to 3.3A current draw (12V x 3.3A = 40W)

• Overcharge and deep-discharge protection

• Short circuit and reverse polarity protection

• Low idle power consumption

• Plug-and-play for most 12V routers and networking devices

Applications:

• WiFi routers and modems

• CCTV cameras and DVRs

• Small IoT hubs and smart devices

• Raspberry Pi and embedded systems

• Solar-powered networking setups

Limitations:

• Designed specifically for 12V devices—not suitable for 9V or 5V routers without a step-down module

• Battery not included—requires external 12V rechargeable battery

• Not suitable for loads exceeding 40W—check your device power rating before use

• Indoor use only—keep away from moisture and heat
