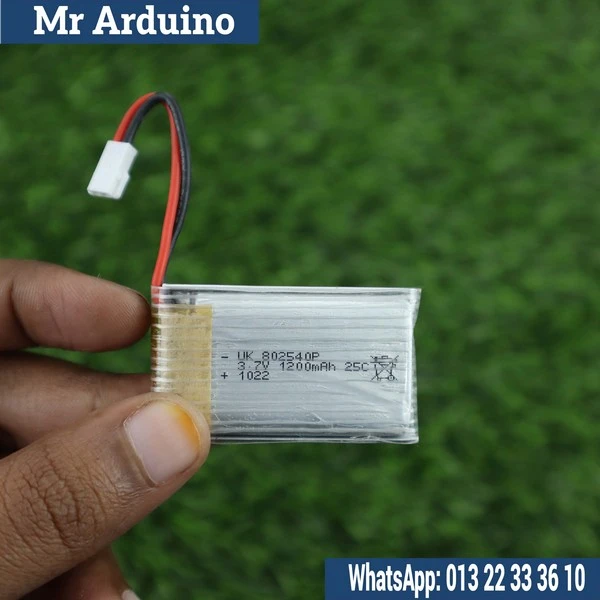

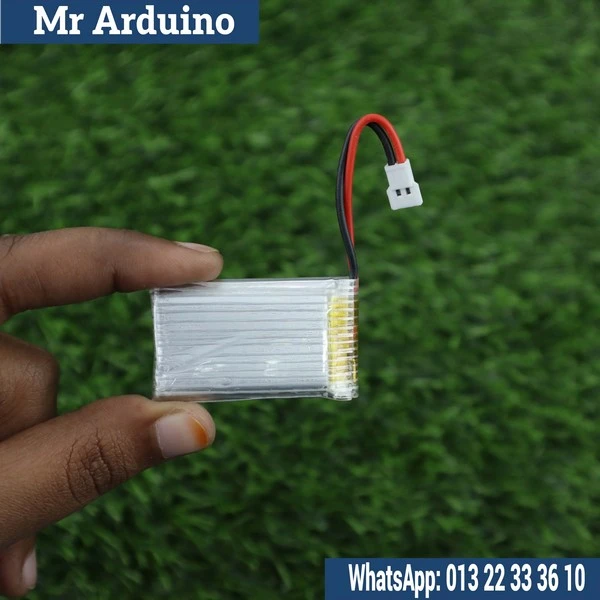

The 3.7V 1200mAh 1S LiPo Battery is a lightweight, high-performance rechargeable lithium polymer (LiPo) battery designed for compact electronic devices and DIY electronics projects. With a single-cell (1S) configuration and 1200mAh capacity, it provides reliable power for microcontrollers, IoT devices, drones, RC toys, wearable tech, and more.

This battery offers a balance between high energy density and low weight, making it ideal for portable and battery-powered projects that require long-lasting power in a small footprint.

How It Works:
This 1S LiPo battery outputs a nominal 3.7V, and can be charged using a standard LiPo charger or charge protection board. Once fully charged (up to 4.2V), it can power low-voltage devices efficiently and steadily. Be sure to use a protection circuit or battery management system (BMS) to prevent overcharge, over-discharge, or short-circuiting.

Specifications:

• Voltage: 3.7V DC (nominal), 4.2V (fully charged)

• Capacity: 1200mAh

• Cell Count: 1S (single cell)

• Chemistry: Lithium Polymer (LiPo)

• Discharge Rate: 1C – 3C (varies by model)

• Connector Type: JST, 2-pin, or bare wires (depends on variant)

• Size (approx.): 50mm x 30mm x 8mm

• Weight: ~25g

• Cycle Life: 300–500 charge cycles (with proper care)

Applications:

• Arduino and ESP32 projects

• GPS modules and IoT devices

• RC helicopters, drones, and toys

• Bluetooth speakers and wearable electronics

• Power banks, mini robots, and LED circuits

Limitations & Precautions:

• Must be charged using a proper LiPo charger (with CC/CV charging profile).

• Never overcharge (>4.2V) or over-discharge (<3.0V) the battery.

• Do not puncture, crush, or expose to fire or water.

• Always monitor charging—never leave unattended.

• Requires a battery protection circuit for safe use in DIY projects.
