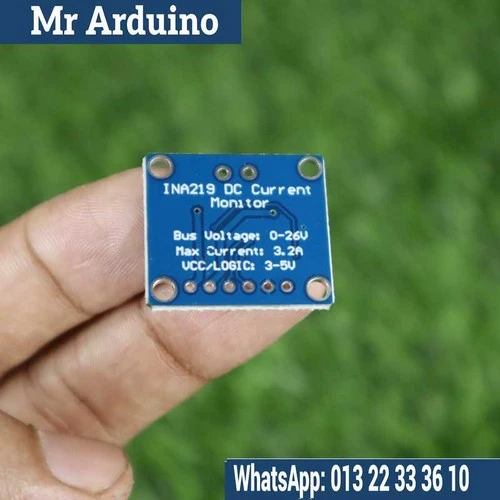

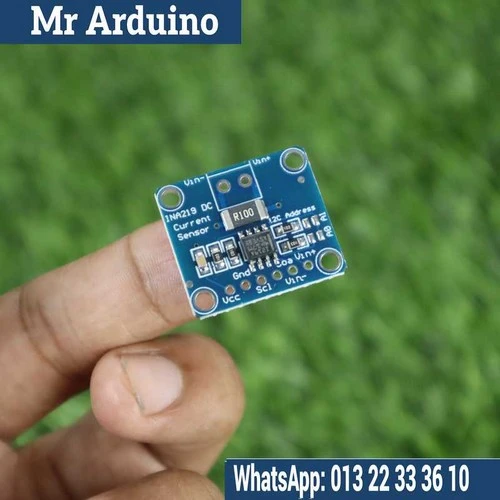

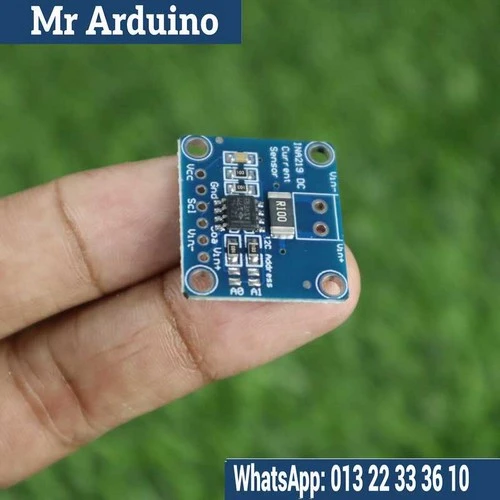

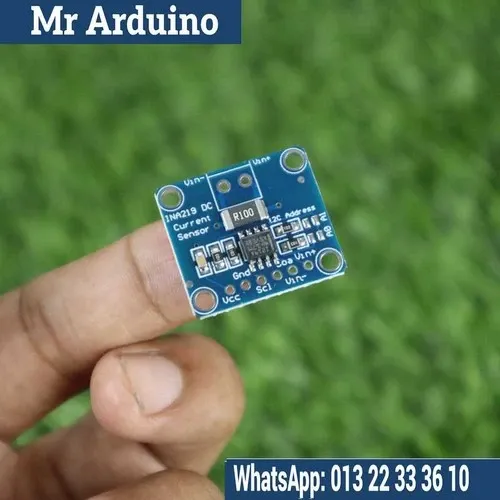

INA219 DC Current Measurement Sensor Module

0 Orders 0 Wish listed

৳210

Qty

Total price:

৳210

Overview
Reviews

Detail Description

INA219 DC Current Measurement Sensor Module is a high-side current and voltage monitoring module based on the Texas Instruments INA219 IC. It allows accurate measurement of DC current, bus voltage, and power consumption using an I2C interface, making it ideal for modern embedded systems.

Unlike low-side current sensing, the INA219 measures current on the high side of the load, which means it does not disturb the ground path. The module includes a precision shunt resistor and internal calibration, enabling accurate readings even at low currents.

This sensor can measure current in both directions, making it suitable for battery charging and discharging analysis. It is fully compatible with Arduino, ESP8266, ESP32, Raspberry Pi, and other microcontrollers via I2C communication.

INA219 is widely used in battery monitoring systems, solar power management, power supply testing, robotics, IoT devices, and energy monitoring projects. Its accuracy, digital output, and ease of integration make it suitable for students, hobbyists, and professionals.

🔹 Key Technical Information (Important)

Sensor IC: INA219
Measurement Type: DC Current, Voltage & Power
Communication Interface: I2C
Voltage Measurement Range: Up to 26V
Current Measurement: Bidirectional (range depends on shunt)
High-side current sensing
Built-in precision shunt resistor
Low power consumption

🔹 Common Applications

Battery voltage and current monitoring
Power consumption measurement
Solar and energy management systems
Arduino and ESP power projects
Robotics and automation systems
Electronics testing and diagnostics
