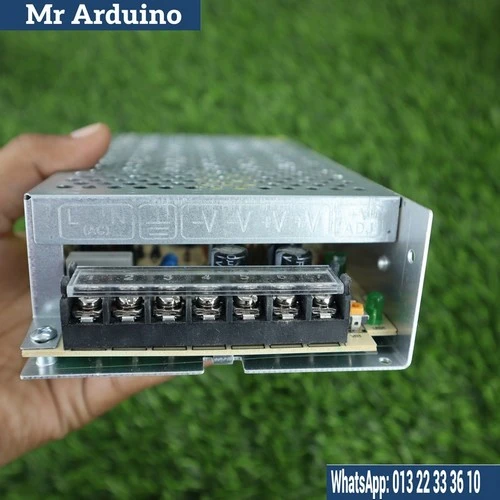

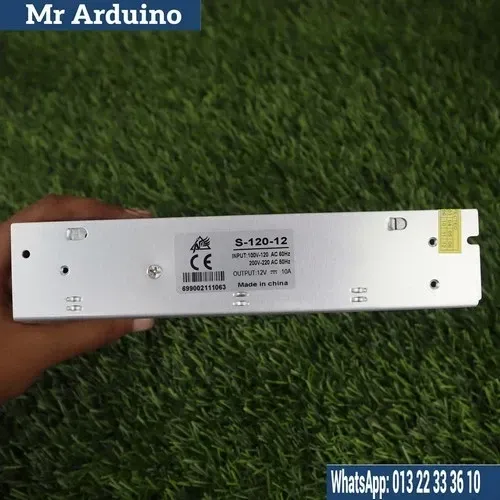

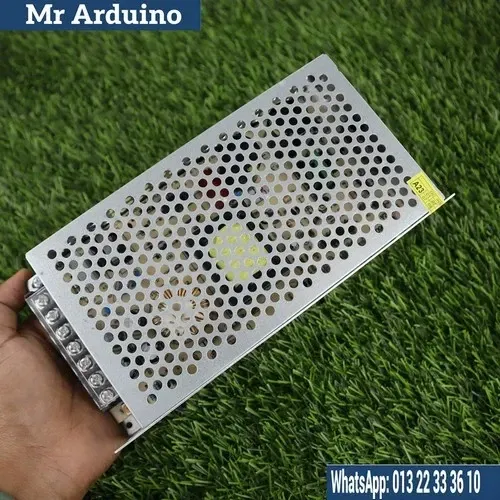

A 12V 10A SMPS (Switch Mode Power Supply) is a compact and efficient power supply unit designed to convert AC voltage into a stable DC output, ideal for powering various electronic devices. Here’s an overview of its key features and applications:

Key Features:

• Output Voltage:

  • Provides a stable 12V DC output, suitable for a wide range of applications.

• Output Current:

  • Capable of delivering up to 10A, making it suitable for devices that require significant power.

• Switch Mode Technology:

  • Uses high-frequency switching to efficiently convert power, resulting in reduced heat generation and a smaller form factor compared to traditional linear power supplies.

• Compact Design:

  • Typically lightweight and small, making it easy to integrate into various projects and setups.

• Protection Features:

  • Often includes short circuit protection, overvoltage protection, and thermal overload protection to ensure safe operation.

Applications:

• LED Lighting:

  • Commonly used to power LED strips and other lighting applications requiring a stable DC supply.

• Electronics Projects:

  • Ideal for hobbyists and engineers working on projects that require a reliable power source.

• Robotics:

  • Can power motors and control circuits in robotic applications.

• CCTV Systems:

  • Frequently used to power security cameras and other surveillance equipment.

Setup and Use:

1. Connections:

   • Connect the AC input terminals to your power source (usually 110V or 220V AC).
   • Connect the output terminals to your device, ensuring correct polarity (positive and negative).

2. Cooling:

   • Ensure adequate ventilation around the power supply to prevent overheating, especially when operating near its maximum current rating.

3. Testing:

   • Before connecting sensitive equipment, use a multimeter to verify the output voltage.

Tips for Use:

• Heat Management:

  • If the power supply is used for extended periods or at high loads, consider adding a cooling fan or ensuring airflow.

• Cable Sizing:

  • Use appropriately rated cables for the output connections to prevent overheating and voltage drop.

• Safety Precautions:

  • Always follow electrical safety standards when working with AC power sources and ensure proper insulation and protection.
