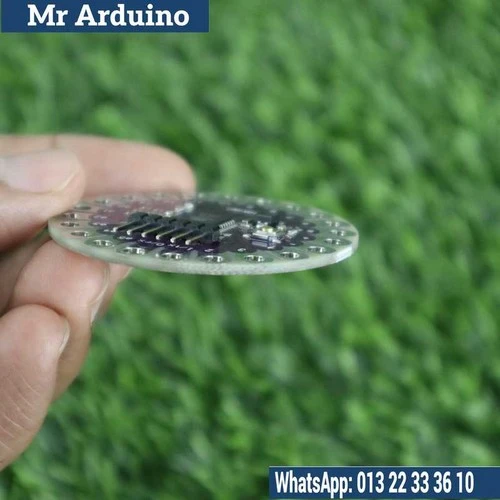

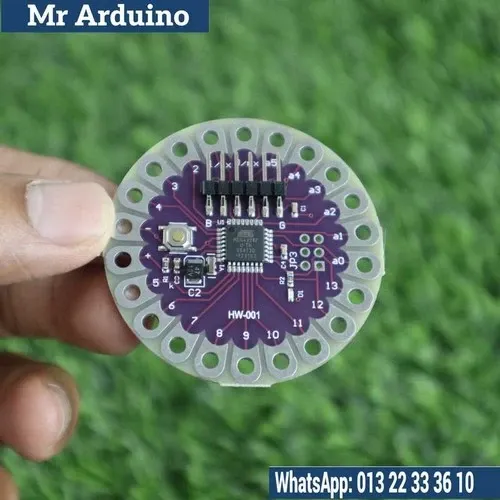

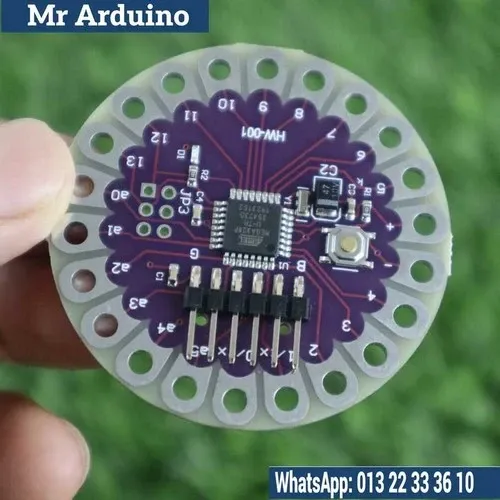

The Arduino LilyPad 328 Main Board ATmega328P is a flexible, wearable microcontroller development board based on the ATmega328P microchip. It is part of the LilyPad Arduino series, specifically designed for integrating electronic components into clothing, textiles, and other soft or wearable projects. The LilyPad 328 offers the functionality of the popular Arduino Uno but in a circular, sewable design. It’s ideal for creating e-textiles, smart clothing, or other innovative wearable projects.

The ATmega328P microcontroller provides the same capabilities as on a standard Arduino Uno, including digital I/O, analog inputs, and communication features such as UART (Serial), I2C, and SPI. The board is engineered for easy integration with conductive thread, and it is compatible with a variety of sensors, LEDs, and motors to bring your creative wearable electronics ideas to life.

Key Features:

• Microcontroller: Based on the ATmega328P microcontroller, offering the same features as the Arduino Uno, including 32 KB of flash memory, 2 KB SRAM, and 1 KB EEPROM.
• Compact and Sewable: The LilyPad 328 is designed with sewable pads, allowing easy integration with fabric and conductive thread for wearables.
• Low Power Consumption: The board is optimized for low power consumption, making it ideal for battery-operated projects and wearable electronics.
• Easy Connectivity: The board includes 6 analog inputs, 14 digital I/O pins, and PWM outputs for controlling various components.
• Integrated Voltage Regulator: Built-in voltage regulator to allow for a wide range of input voltages (from 3.3V to 12V).
• Programming: Easily programmable via the Arduino IDE, using the same environment and tools as other Arduino boards.
• USB Programming: Can be programmed using a USB-to-serial adapter (sold separately), making it easy to upload sketches directly from your computer.
• Compatible with Various Modules: Compatible with many Arduino-compatible sensors, motors, LEDs, and other components that can be used in wearable projects.

How It Works: The Arduino LilyPad 328 operates just like other Arduino boards but is specifically designed for integration into fabrics. You can program the board using the Arduino IDE, where you can write and upload your sketches through a USB-to-serial adapter. The board features multiple input/output pins, allowing you to connect various components such as sensors, LEDs, and actuators to your wearable project.

Once programmed, the LilyPad 328 can interact with sensors (e.g., temperature, motion, light), control motors or LEDs, and even communicate wirelessly if paired with additional modules (e.g., Bluetooth). The main advantage of the LilyPad design is that its sewable nature allows you to attach it directly to clothing, bags, or other soft materials, and connect it using conductive thread to other LilyPad components.

The ATmega328P microcontroller ensures that the board has enough processing power to handle simple or moderately complex tasks, such as controlling a series of LEDs or reacting to input from sensors. It can be powered by a small Li-Po battery or an external DC power supply.

Limitations:

• Limited Pin Count: While it’s great for wearable projects, it only offers 14 digital I/O pins and 6 analog inputs, which may not be enough for very complex or large-scale projects.
• Programming Setup: Unlike standard Arduino boards that can be programmed via direct USB, the LilyPad 328 requires an additional USB-to-serial adapter (sold separately) for programming.
• Power Supply: The board works well with small batteries but may have limitations in power-hungry applications, especially if you're running a lot of high-power components like motors.
• No Onboard USB Port: Since it doesn’t have a built-in USB port for direct connection to a computer, it requires an external USB-to-serial interface for programming and communication.

The Arduino LilyPad 328 Main Board ATmega328P is an excellent choice for developers looking to create innovative wearable electronics or e-textile projects. Its sewable pads and low power consumption make it a perfect solution for integrating electronics into fabric, clothing, and other soft materials, helping you bring your smart clothing and interactive textile projects to life.
